iC-MA3

Angular Hall Sensor with Sin/Cos Output, Cascadable.

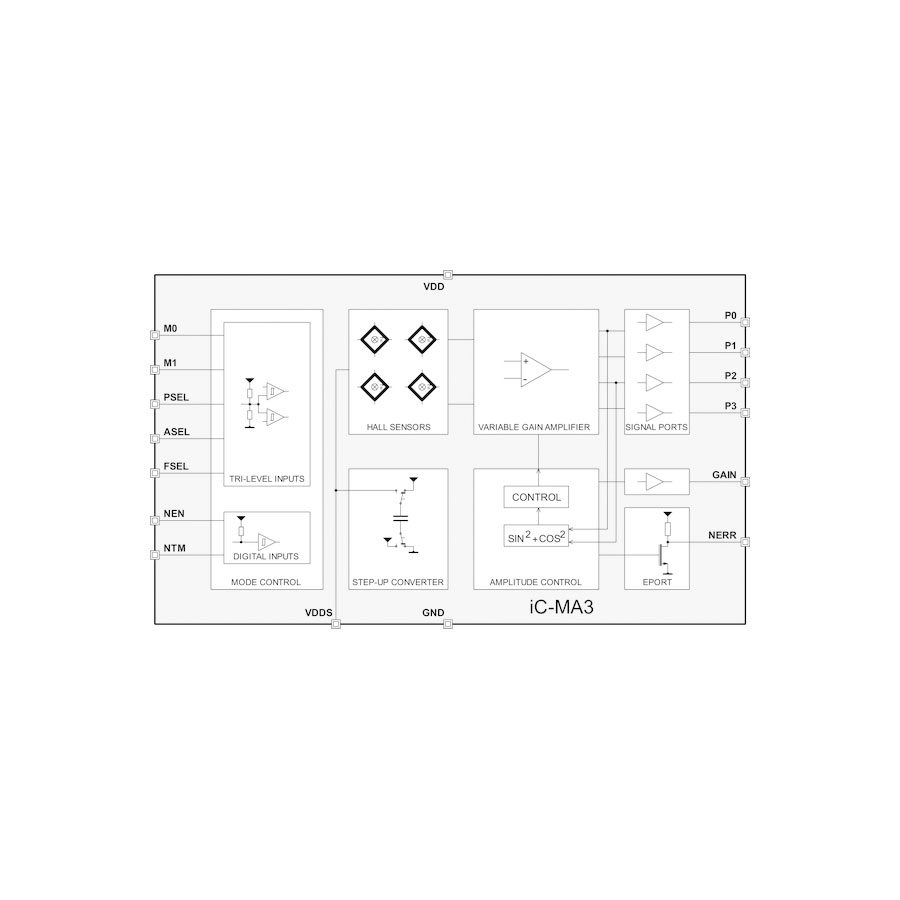

Features

Single supply operation from 3.0V to 5.5V.
For rotational speeds of up to 60,000rpm.
Quad Hall array for high assembly tolerances.
High immunity to external stray fields.
Automatic gain control.
Digital control error output (loss of-magnet indicator).
Analog gain signal for magnetic field strength monitoring.
Two output modes: differential, or single-ended with reference and gain signal.
Pin-selectable output level: 250mV, 500mV, 1V.
Pin-selectable power modes: full, reduced, eco.
Pin-selectable bandwidth of 500Hz, 5kHz, 10kHz.
Bus-capable outputs for chain operation of multiple devices.
Quick start from power saving standby.

Operating temperature range of -40°C to 125°C.

Datasheets


Manufacturer: iCHaus GmbH
SKU: Angular Hall Sensor with Sin/Cos Output, Cascadable Category: Tags: ,

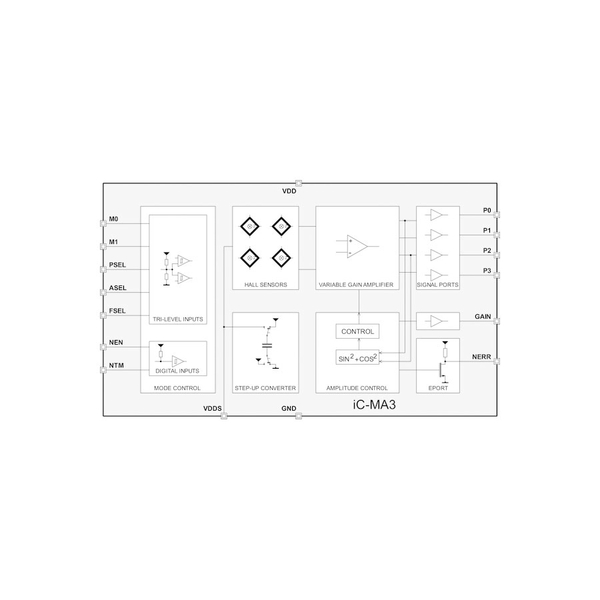

Description

Applications

Precision magnetic angle sensing
Absolute rotary position sensors
Magnetic multiturn encoders

Packages

QFN16
QFN16 Package

Additional information

Type

Encoder – Magnetic
