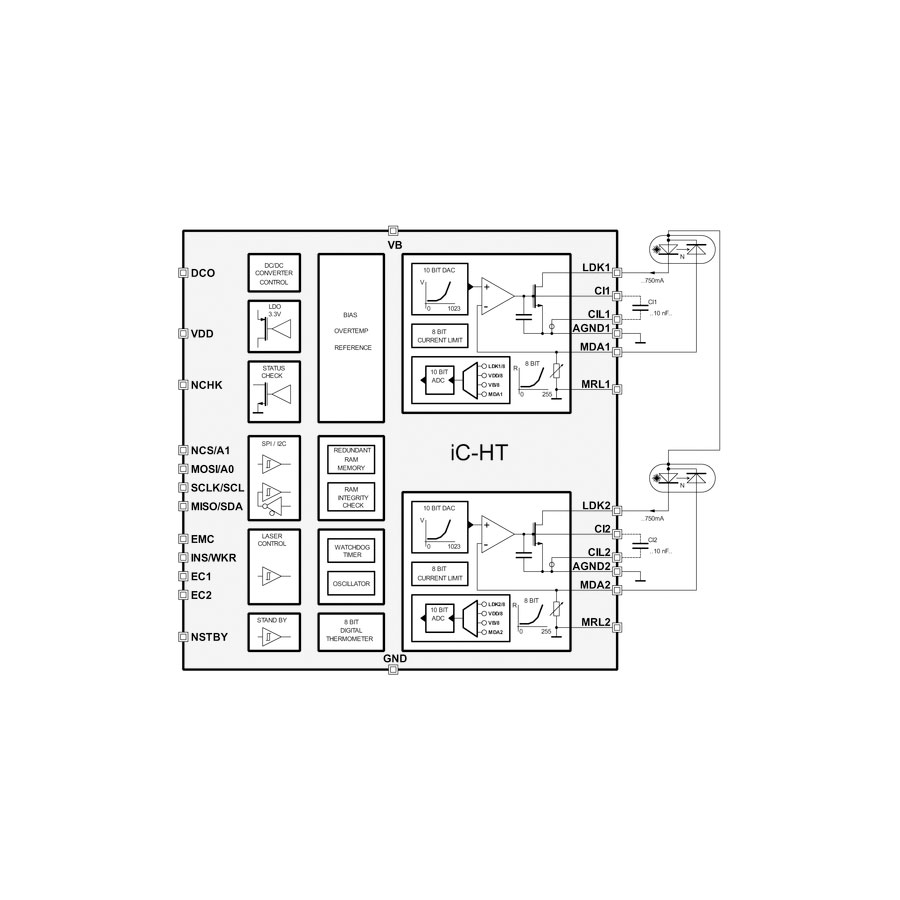

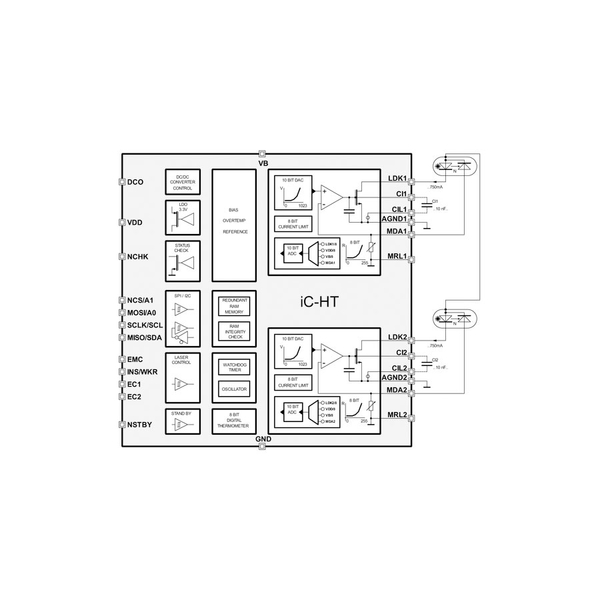

Dual CW Laser Diode Driver for up to 1.5A

iC-HT

Dual CW Laser Diode Driver for up to 1.5A.

Features

Dual CW with up to 750mA per channel.
Channel merge up to 1500mA.
2.8V to 8V power supply.
Operation with or without microcontroller.
Individual enable input per channel.
Control loop accuracy better than 1%.
Internal programmable logarithmic monitor resistor.
Operating point setup with 10 bit logarithmic resolution.
Current or light-power control (ACC or APC) per channel.
Dual A/D converter for analogue levels monitoring.
Serial programming interface (SPI or I2C compliant).
Optimized for N-type laser diodes.
Configuration content verification and validation.
Laser channel disable with programmable overcurrent threshold.
Low drop linear regulator for 3.3V.
Low current standby mode.
Temperature sensor.
Temperature range -40…85°C.

Datasheets



Manufacturer: iCHaus GmbH

SKU: Dual CW Laser Diode Driver for up to 1.5A Category: Tags: ,

Product Description

Applications

Laser diode modules
CW laser diode driver
Embedded laser diode controller
Safety oriented laser controller

Packages

QFN28
QFN28 Package


Software

Additional Information

LD Pinout

M, N

Type

Laser Driver

Control Type

ACC, APC

Supply Current

A, mA

Laser Speed

CW
