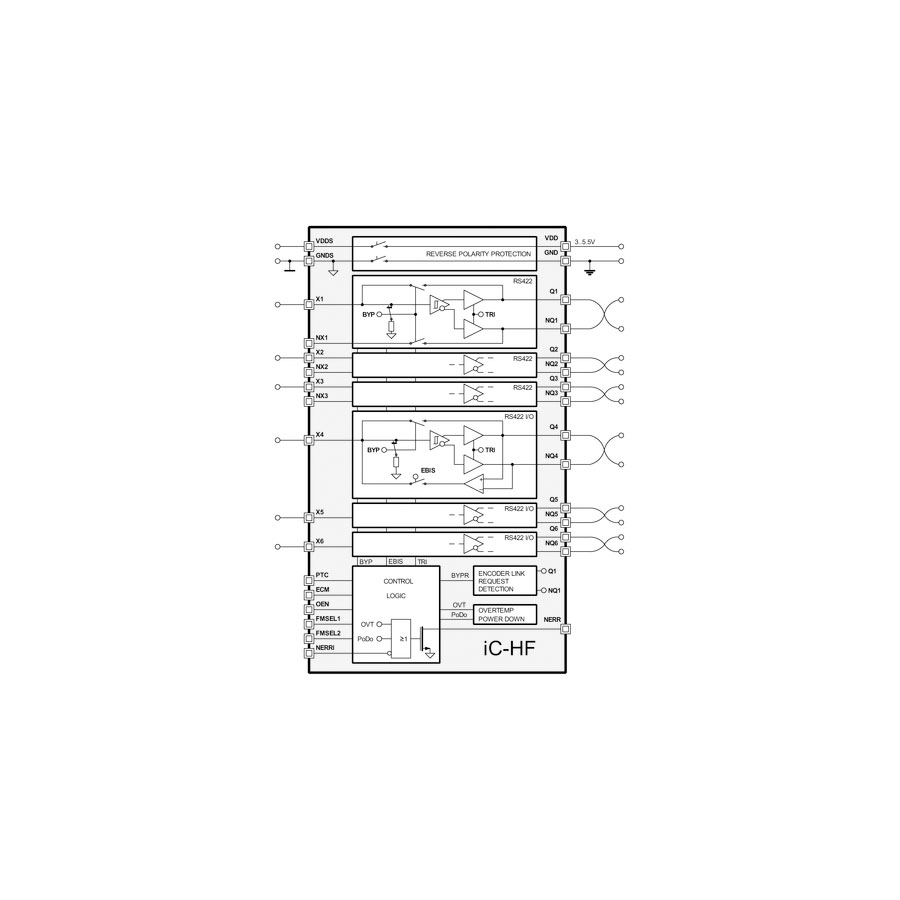

6 Channel RS-422 Encoder Link - Line Driver/Receiver

iC-HF

6 Channel RS-422 Encoder Link – Line Driver/Receiver.

Features

Versatile 3+3 ch. RS-422 line driver/receiver.
Pin-out as 6-ch. driver, or 3+3/4+2-ch. driver/receiver.
Supports BiSS bus structure and bus loop-back.
Unique analogue switches to bridge 9 lines.
Differential short-circuit-proof push-pull outputs.
Source/sink driving capability of 30mA at 3V.
Lower EMI due to output mA limitation.
Under-volt and over-temp protection.
Suits various line impedances, allows 100 Ohm termination.
TTL-compatible hysteresis inputs.
Up to 10 MHz input/output frequency.
Open-drain error message output (NERR).
Reverse-polarity-proof operation from 3.0 V to 5.5 V.
Reverse-pol. protection of periphery by supply-switch (60mA).
Operating temperature range of -40°C to +125°C.

Datasheets


Manufacturer: iCHaus GmbH

SKU: 6 Channel RS-422 Encoder Link - Line Driver/Receiver Category: Tags: , ,

Product Description

Applications

Differential cable driver
Motion control encoders
Control engineering
Microcontroller periphery
Sensor bus structures with BiSS

Packages

QFN32
QFN32 Package

Additional Information

Type

24V Line Drivers
