Product Description
|
CPU Type
|
Intel Atom N2800/D2550 (Embedded)
|
|
Memory Support
|
1pcs x DDR-3 SO-DIMM socket (up to 4GB)
|
|
Front Bezel
|
Stainless Steel
|
|
Waterproof Level
|
IP65 front side
|
|
Power Supply
|
9-36V DC input, optional AC-DC power supply
|
|
O/S Support
|
Windows 7
|
|
Dimension
|
247 x 185 x 71mm
|
|
Basic System Weight
|
2.9Kg
|
|
VESA support
|
75mm VESA bracket (optional)
|
|
Certificate
|
CE / FCC
|
I/O Ports
|
Drive Bays
|
1 x 2.5″ SATA HDD, 1 x CFast slot onboard
|
|
USB
|
2 x USB 2.0
|
|
Serial Ports
|
2 x 9-pin*, COM2 for RS232/422/485
|
|
Parallel
|
n/a
|
|
Keyboard/Mouse
|
n/a
|
|
LAN
|
2 x 10/100/1000Mbps
|
|
Wireless LAN
|
n/a
|
|
Audio
|
Line-out, MIC
|
|
Expansion
|
1 x mini-PCI-e, 1 x SIM card slot for WWAN
|
|
Video output
|
1 x DVI
|
|
Digital I/O
|
n/a
|
|

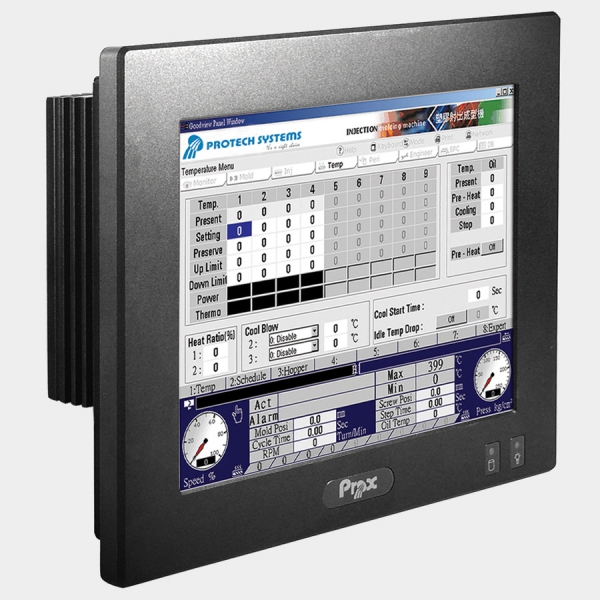

LCD
|
8″ SVGA TFT LCD
|
|
Touch Screen
|
5 wire analogue resistive (USB interface)
|
Environment
|
Temperature
|
Operating: 0 to 45°C, Storage: -20 to 60°C
|
|
Humidity
|
20 to 90%
|
