SML-635-5-2-R
Click to enlarge
SML-635-5-2-R SML-635-5-2-R case

635nm, 5mW Red Laser Module

SML-635-5-2-R

Feature

Red Laser Module
Wavelength: 635nm (typ.)
Output Power: 5mW
Package: ø8mm (RoHS compliant)

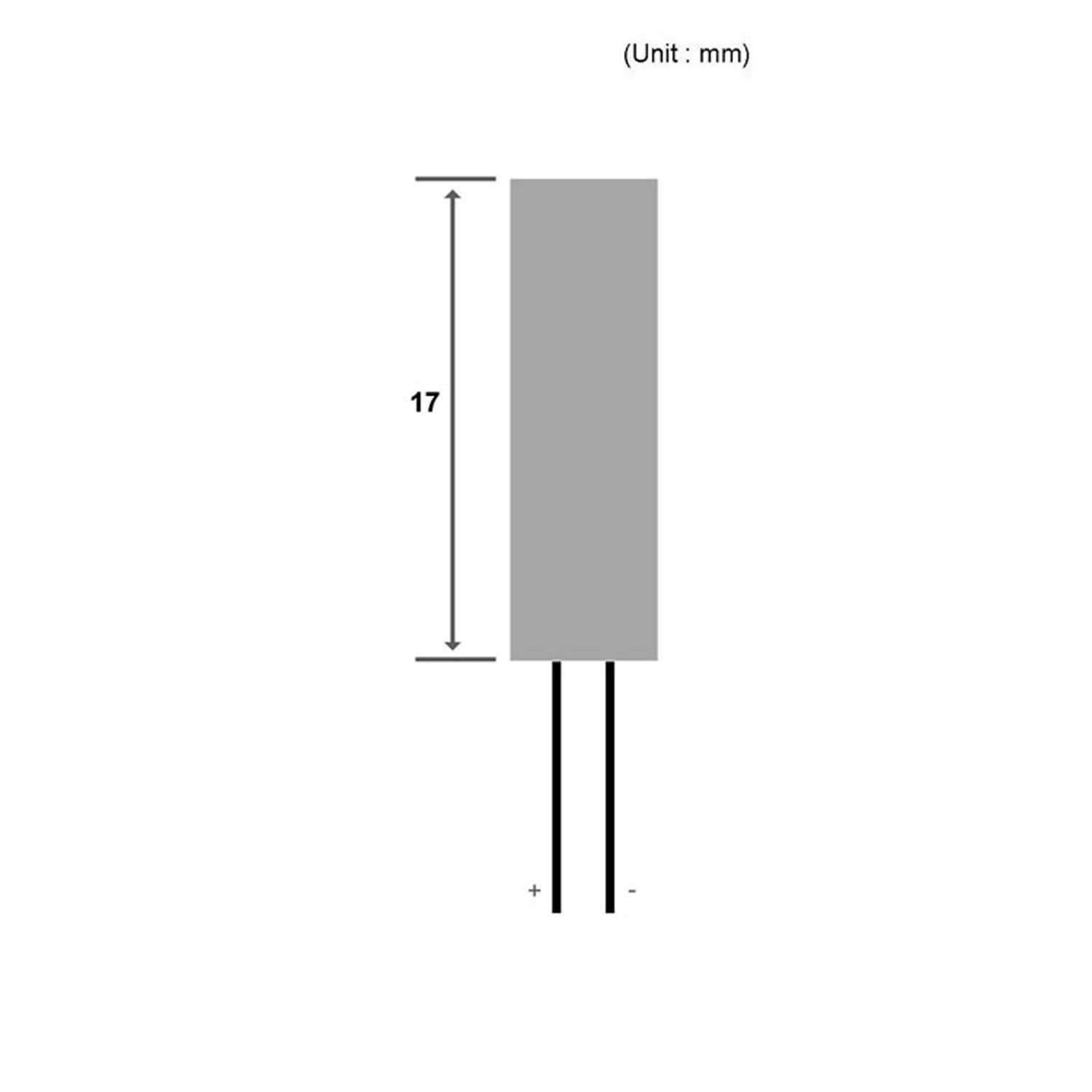

Length: 17mm (*see image)

Applications

Barcode Reader
Industrial Alignment & Positioning
Laser Pointer
SKU: 635nm, 5mW Red Laser Module Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
5
mW
Operating
Voltage
VCC
+3
V
Operating
Temperature
Topr
+10 to +40
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Operating
Current
Iop
–
–
45
mA
CW
Supply
Voltage
Vcc
–
+3.0
–
V
–
Beam (*2)
Diameter
2wr
–
–
TBD
mm
Δl = 10m (*3)
Beam (*2)
Divergence
2Θr
–
–
0.5
mrad
–
Peak
Wavelength
λp
630
635
640
nm
–

Additional Information

Colour

Red (635 – 685nm)
Wavelength

635nm
Power Output

5mW
Operating Voltage

3
Operating Current

45 Max.
