SE-8124

Description

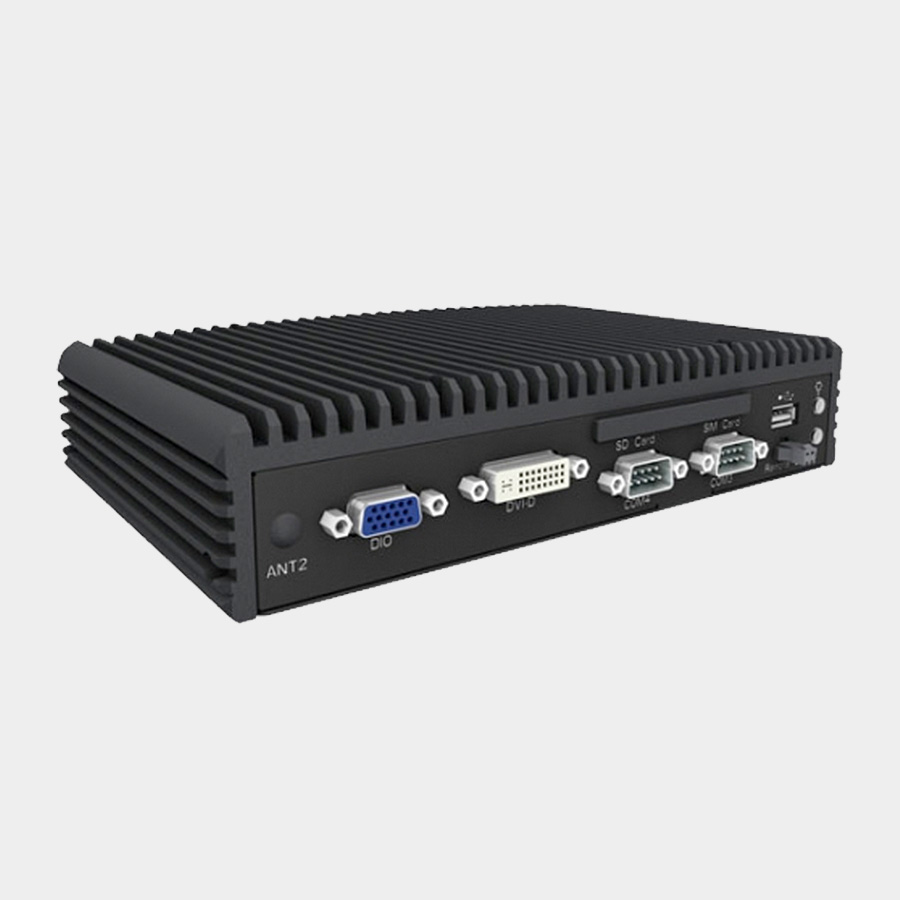

The SE-8124 is a low power, fanless multifunction embedded PC built for industrial control and automotive communication.
The Digital I/O, PoE and four COM ports are among the many I/O ports available on this embedded PC, so control of other systems is simple.

Features

Intel Atom multi-serial comm’s mini industrial PC
Support E3845/E3826 or J1900
Truly fanless operation
Low power
Support up to 4 RS232 COM ports
4in/4out Digital I/O port
4 x USB & 2 x Gigabit PoE LAN

Downloads:

SKU: Intel E3845/E3826 Embedded Computer with 2x Power-over-Ethernet Categories: , Tags: , ,

Description

CPU Type
Intel E3845/E3826 or Celeron J1900
Chipset
n/a
Memory Support
1pcs x DDR3L SO-DIMM (up to 8GB)
Watchdog Timer
1 to 255 seconds
Power Supply
9-36Vdc
Power Adaptor
AC 100V to 240V input, DC 24V output
Operating System
Windows 7 / 8
Basic System Weight
2.5kg
Dimension
217.5 x 148 x 45 mm
Certificate
FCC / CE

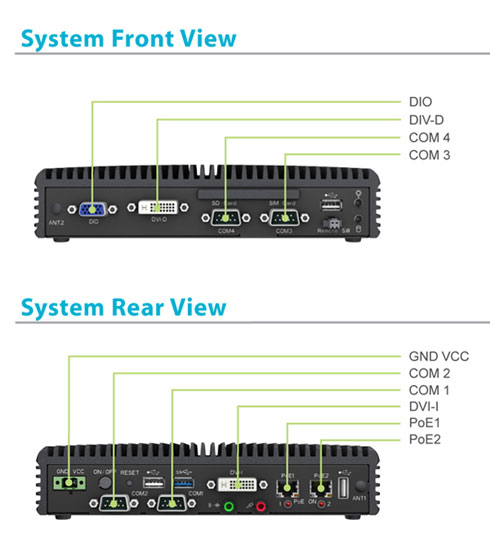

I/O Ports

HDD
2.5″ SATA HDD or SSD
USB
1 x USB3.0 + 2 x USB2.0 rear and 1 x USB2.0 Front
LAN
2 x Gigabit with PoE support
Audio
1 x Line-out + 1 x Mic-in
Serial Ports
2 x (RS232) + 2 x (RS232/422/485)
Display
1 x DVI-I
Digital I/O
4-in/4-out
SIM support
1 x SIM card slot
SD Card
1 x SD card slot

Environment

Temperature
Operating: 0 to 40°C, Storage: -30 to 80°C
(Operating Temp improved with wide-temp SSD)
Humidity
20 to 90%

Additional information

Operating System (OS)

Windows 7, Windows 8.1

Expansion

mini PCI-e, PCI-e

Fanless

Yes

Core

Intel Atom
