SBL-P3842V2

Description

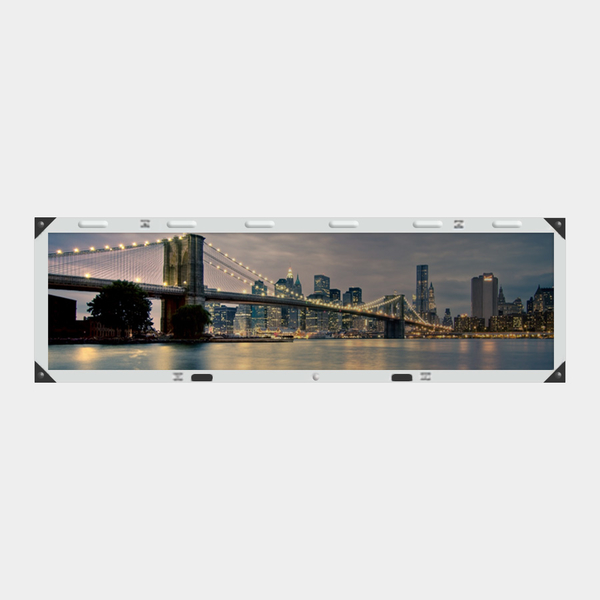

The SBL-P3842V2 is a 38″ ultra widescreen open frame bar LCD monitor designed for gaming scoreboards, as well as digital signage.
A 42″ panel is 1/2 cut to produce a 38″ LCD panel providing 1920 x 540 resolution. With the option of various input types, the monitor can be used in many situations.

Features

38″ (42″ 1/2 cut) Bar LCD Monitor
Native Resolution 1920×540 @60Hz
DVI and VGA input
Optional Audio board
Optional Thermal/Brightness Monitor
LED backlight
Open Frame Type
Custom metalwork is available.

Downloads:

SKU: 38" 1/2 Cut FullHD Bar LCD Monitor Category: Tags: , , , , ,

Description

Screen Size
38″ (From 42″ 1/2 cut), 1920 x 540 resolution
Display Colours
1.06 billion (10-bit)
Pixel Pitch
0.4833 x 0.4833 mm
Luminance
Typ. 800cd/m2
Backlight Lifetime
Typ. 50,000 hours
Viewing Angle
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
Backlight Type
Edge LED
Contrast Ratio
Typ. 1400:1
Mount Type
Open frame mount and optional VESA arm mount
Power Input
DC 12V or 24V
Dimension
973.2 x 304.5 x 27mm (Panel depth only. Board kit will determine total depth)

I/O Ports

Digital
DVI-D
Analogue
15-pin VGA
Options
IR remote, thermal and brightness control & audio amp

Environment

Temperature
Operating: 0 to 50°C

Additional information

Screen Size

38"

Monitor Type

Monitor – 25"+, Monitor – Ultrawide

Mount Type

Open Frame, VESA Arm Mount

Inputs

DVI, VGA

Brightness

800cd/m²
