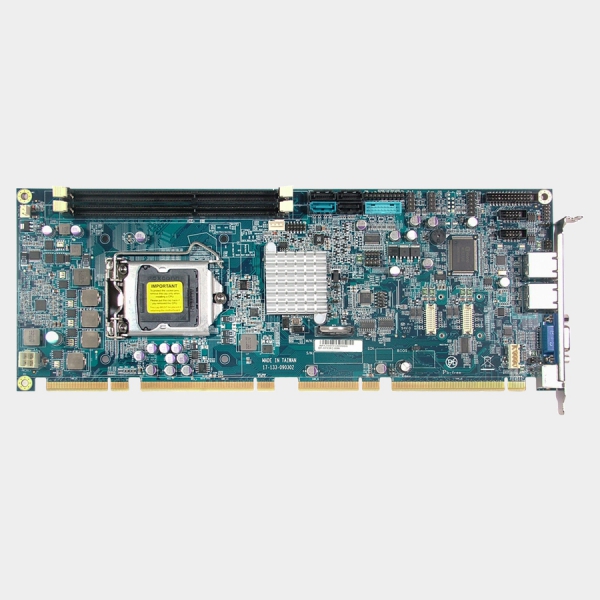

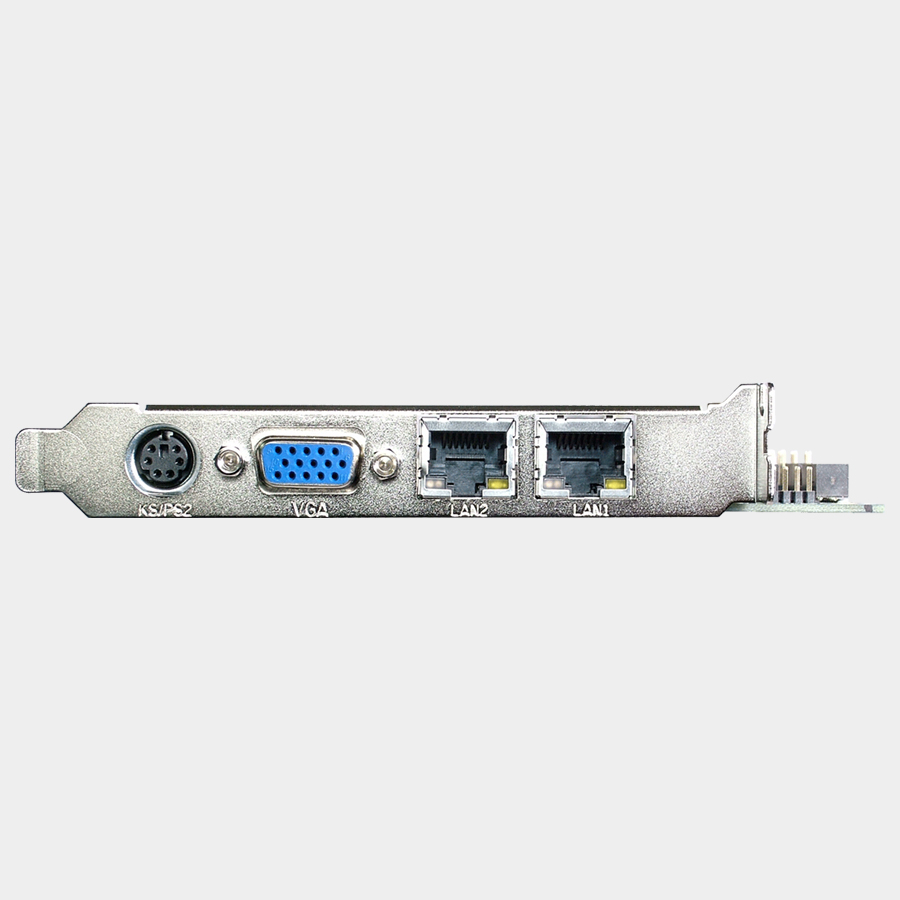

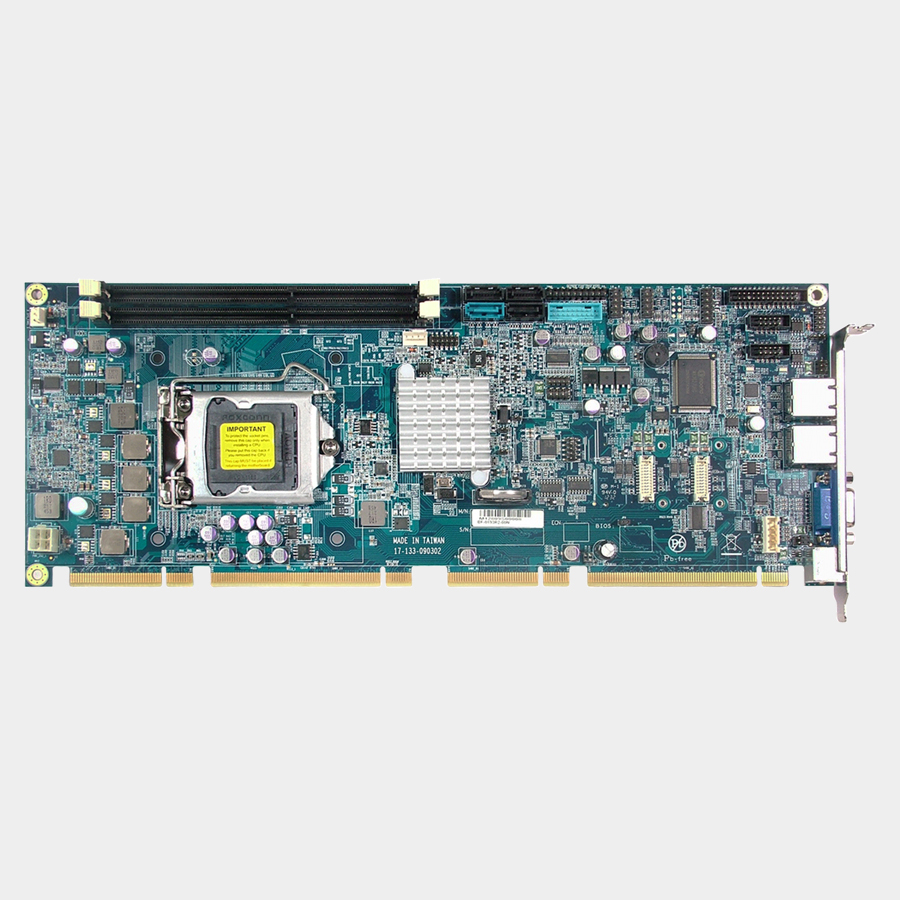

PSB-893LF PSB-893LF-side

Intel Core-i (Q77) Full-Size PICMG1.3 Motherboard

PSB-893LF

Description

The PSB-893LF is a high performance full-size single board computer built for multi-processing on the Intel Core i series CPU.
The ten USB ports and two COM ports are among the many I/O ports available on this single board computer.

Features

LGA1156 Full Size Industrial CPU card
Support Ivy Bridge Core i3/i5/i7
Best in class performance
Support ATX power supply
6 x S-ATA-II ports supporting RAID 0, 1, 5 and 10
Support up to 32GB of RAM
Dual Gigabit LAN
Expansion through Mini-PCIe

Downloads:

SKU: Intel Core-i (Q77) Full-Size PICMG1.3 Motherboard Category: Tags: ,

Product Description

CPU Type
Intel Ivy Bridge Core i3/i5/i7 (LGA1156) type
Chipset
Intel B75
Memory Support
2pcs x DDR-3 DIMM socket (up to 32GB)
Power Supply
Support ATX power
Power Requirement
+5V, +3.3V, +5Vsb and +12V
Power Consumption
TBC
Watchdog Timer
1-255 seconds selectable with reset and NMI
Dimension
338.5 x 126 mm (13.33in x 4.96in)

I/O Ports

S-ATA
6 x S-ATA-II with (RAID 0, 1, 5, and 10), 4 on board
TPM
TPM1.2 on 1 x 20-pin header for Trusted Platform Module
Serial Ports
2 x 9 pin, COM2 for RS232/422/485
Parallel Port
n/a
Keyboard/Mouse
1 x PS/2 with Y-splitter or mini-DIN
LAN
2 x 10/100/1000Mbps
Audio
Realtek ALC888S with Line-in, Line-out and MIC
USB
10 x USB 2.0/3.0

Environment

Temperature
Operating: 0 to 60°C, Storage: -40 to 85°C
Humidity
20 to 90%

Additional Information

Core

Intel

Board Size

Full Size Card

Expansion

mini PCI-e
