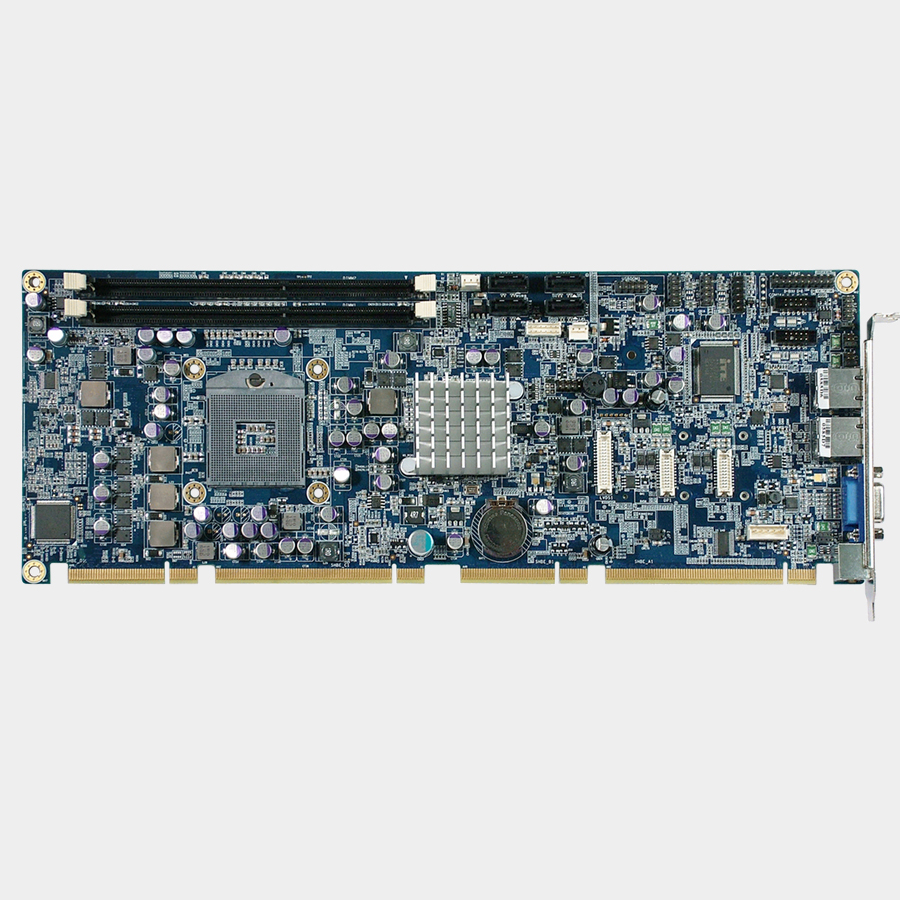

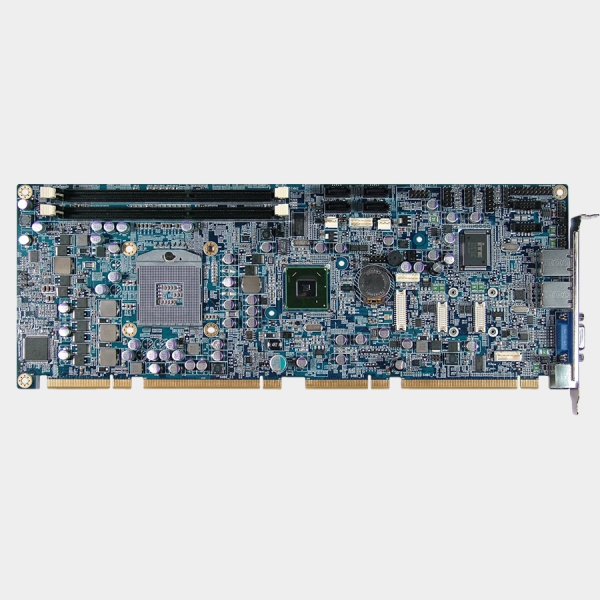

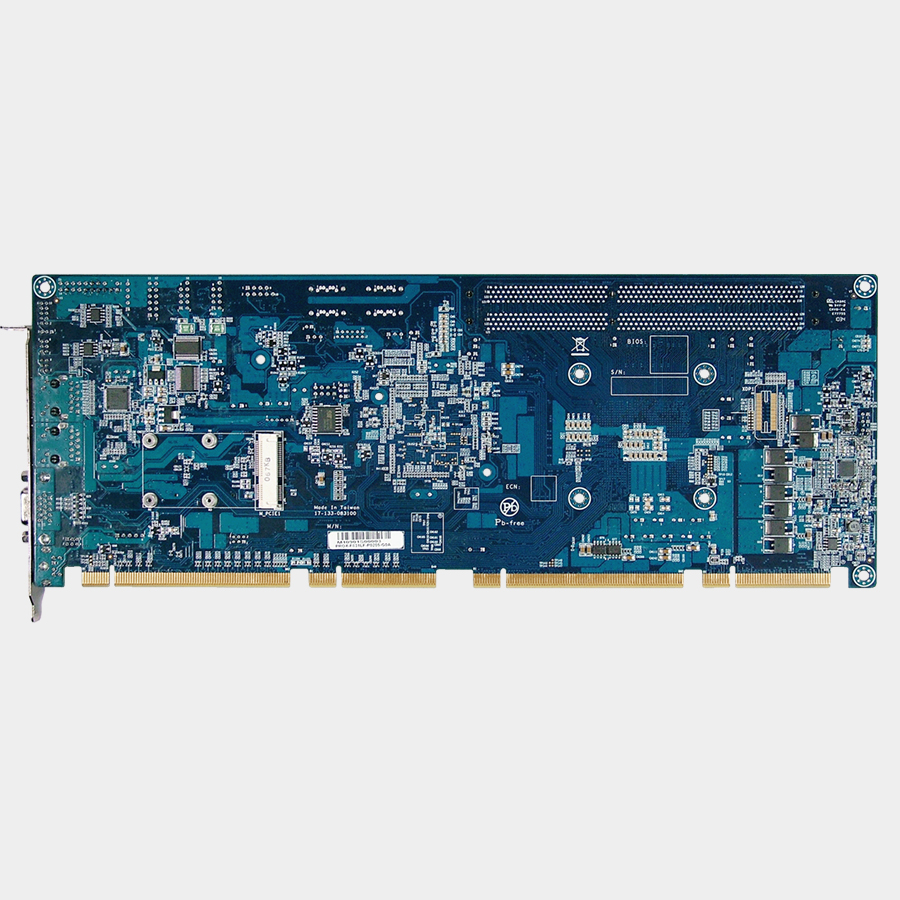

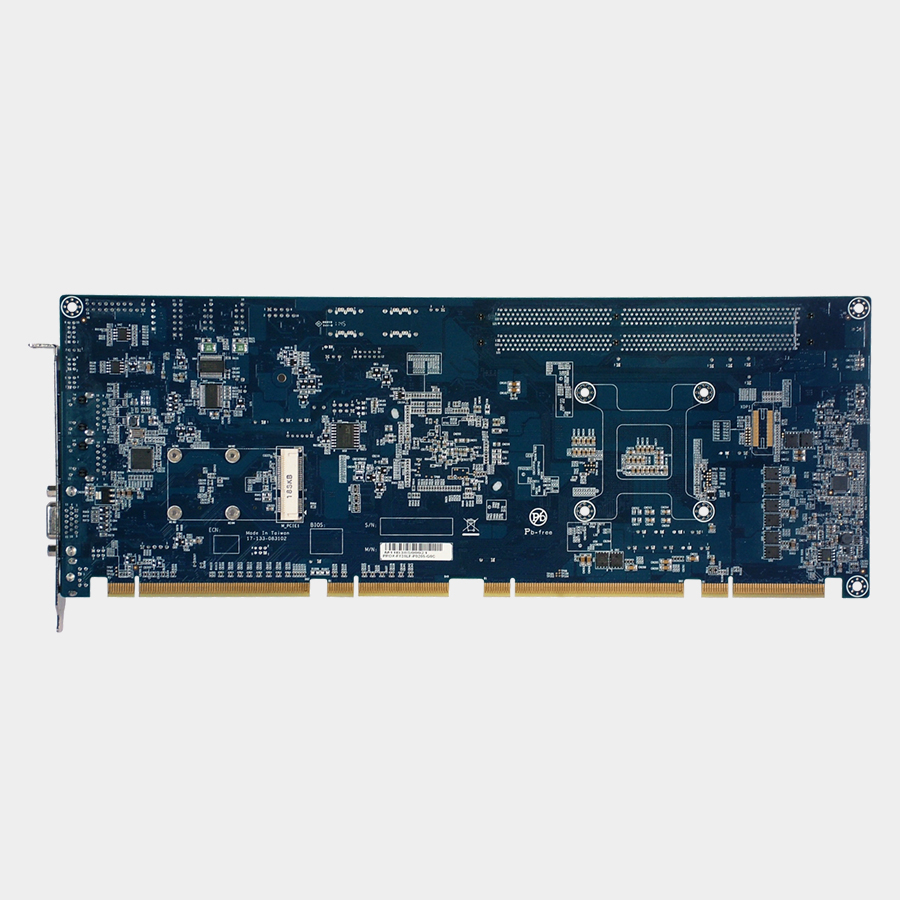

PSB-831LF PSB-831LF-back PSB-831LF-back2 PSB-831LF-front-2

Intel Core-i (QM67) Full-Size PICMG1.3 Motherboard

PSB-831LF

Description

The PSB-831LF is a high performance full-size single board computer built for multi-processing on the 2nd gen Intel Sandy Bridge series mobile CPU.
The six USB ports and two COM ports are among the many I/O ports available on this single board computer.

Features

FCPGA988 Full Size Industrial CPU card
Support Core i5M/i7M (Sandy Bridge)
Best in class performance
Support ATX power supply
6 x S-ATA-II ports supporting RAID 0, 1, 5 and 10
Support up to 8GB of RAM
Dual Intel Gigabit LAN
Expansion through Mini-PCIe

Downloads:

SKU: Intel Core-i (QM67) Full-Size PICMG1.3 Motherboard Category: Tags: ,

Product Description

CPU Type
Core i5-2510M/i7-2710QE (Sandy Bridge) FCPGA988 type
Chipset
Intel QM67
Memory Support
2pcs x DDR-3 DIMM socket (up to 8GB)
Power Supply
Support ATX power
Power Requirement
+5V, +3.3V, +5Vsb and +12V
Watchdog Timer
1-255 seconds selectable with reset and NMI
Dimension
338.5 x 126 mm (13.33in x 4.96in)

I/O Ports

S-ATA
6 x S-ATA-II with (RAID 0, 1, 5, and 10) 4 on board
TPM
TPM1.2 on 1 x 20-pin header for Trusted Platform Module
Serial Ports
2 x 9 pin, COM2 for RS232/422/485
Parallel Port
1 x 25 pin (SPP, ECP, EPP)
Keyboard/Mouse
1 x PS/2 with Y-splitter or 2 x mini-DIN
LAN
2 x 10/100/1000Mbps
Audio
Daughter board (Order DM-A3010LF)
USB
12 x USB 2.0

Environment

Temperature
Operating: 0 to 60°C, Storage: -40 to 85°C
Humidity
20 to 90%

Additional Information

Board Size

Full Size Card

Core

Intel, Intel Core i5, Intel Core i7

Expansion

mini PCI-e
