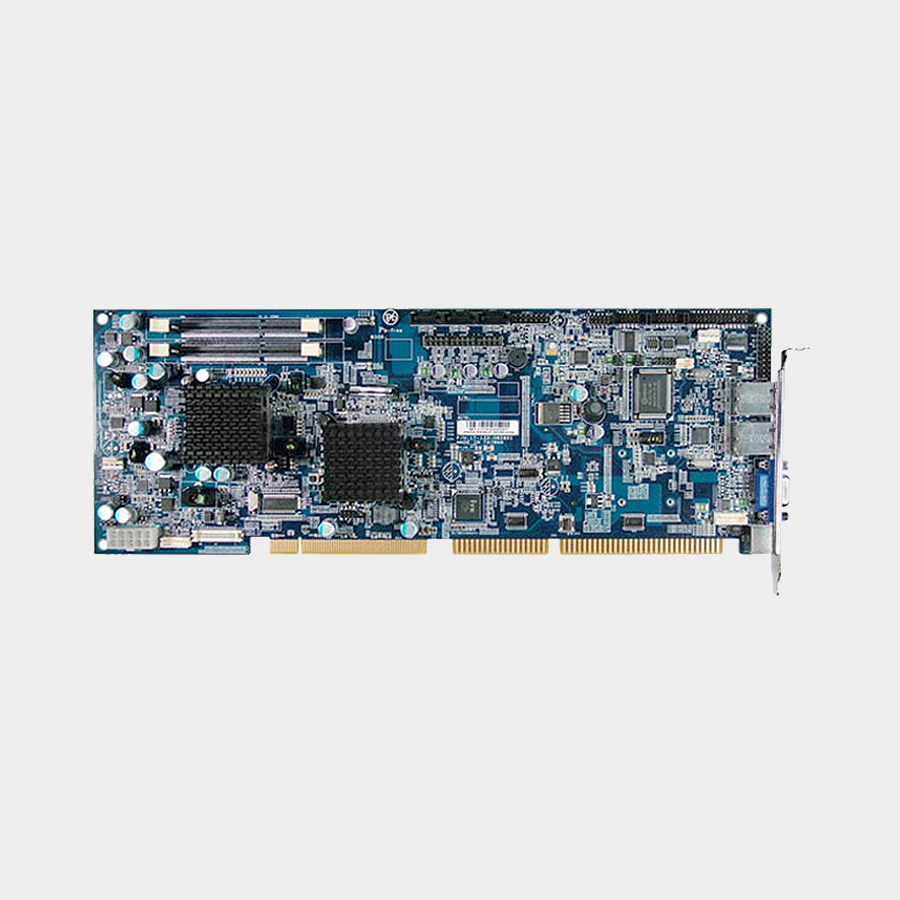

Intel D525 Full-Size PICMG1.0 Motherboard

PSB-828LF

Description

The PSB-828LF is a full-size single board computer built for low power on the Intel Atom N455 or D525 embedded CPU.
The six USB ports and two COM ports are among the many I/O ports available on this single board computer.

Features

Intel Atom (Embedded) Full Size Industrial CPU card
Support N455 (1.66GHz) and D525 (1.8GHz)
Low Power
Support AT/ATX power supply
3 x S-ATA-II ports
Support up to 4GB of RAM
Dual Gigabit LAN
Expansion through Mini-PCIe

Downloads:

SKU: Intel D525 Full-Size PICMG1.0 Motherboard Category: Tags: ,

Product Description

CPU Type
Intel Atom N455 / D525 (embedded type)
Chipset
Intel ICH8M
Memory Support
2pcs x DDR-3 SO-DIMM socket (up to 4GB)
Power Supply
Support AT/ATX power
Power Requirement
+5V and +12V
Power Consumption
+5V: 5A and +12V: 5.12A
Watchdog Timer
1-255 seconds selectable with reset and NMI
Dimension
338.5 x 126 mm (13.33in x 4.96in)

I/O Ports

S-ATA
3 x S-ATA-II
TPM
1 x 20-pin header for Trusted Platform Module
Serial Ports
2 x 9 pin, COM2 for RS232/422/485
Parallel Port
1 x 25 pin (SPP, ECP, EPP)
Keyboard/Mouse
1 x PS/2 with Y-splitter or 2 x mini-DIN
LAN
2 x 10/100/1000Mbps
Audio
Realtek ALC888S
USB
6 x USB 2.0

Environment

Temperature
Operating: 0 to 60°C, Storage: -40 to 85°C
Humidity
20 to 90%

Additional Information

Board Size

Full Size Card

Core

Intel, Intel Atom

Expansion

mini PCI-e
