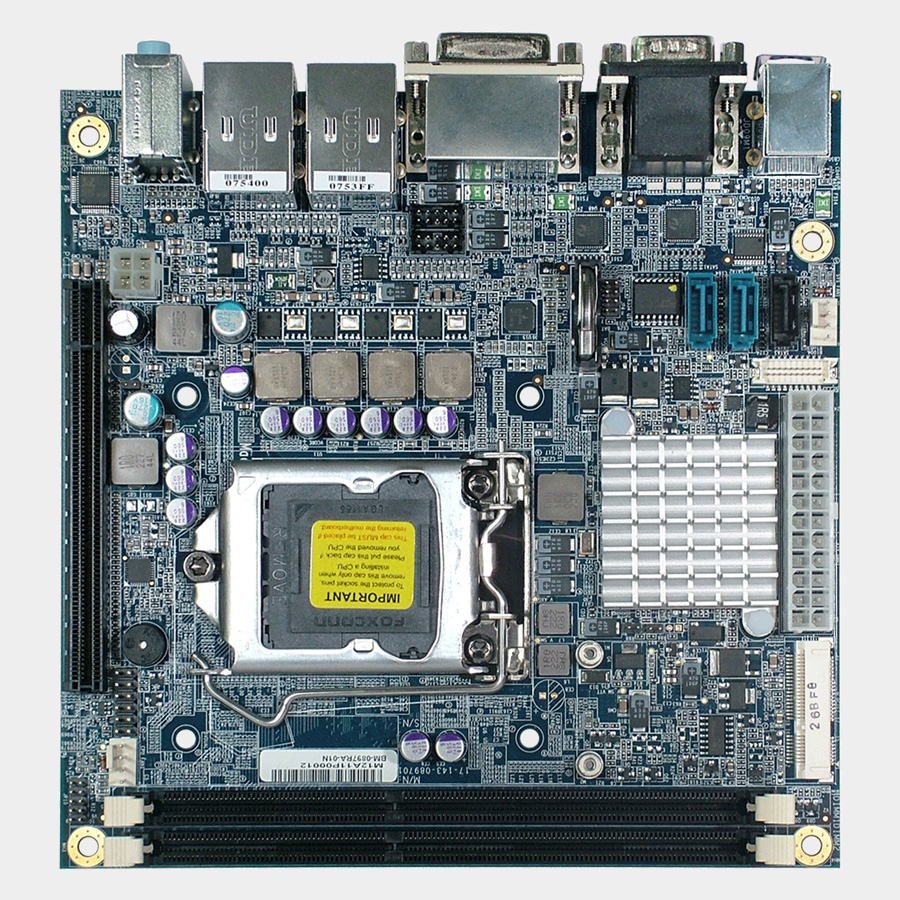

Product Description
|
CPU Type
|
Intel IvyBridge Core i3, i5 and i7 or Pentium (socket 1155)
|
|
Chipset
|
Intel PCH Q77 + SPI
|
|
Memory Support
|
2pc x DDR-3 DIMM socket (up to 16GB)
|
|
Power Supply
|
Support ATX power
|
|
Power Requirement
|
+5V, +12V, -12V, +3.3V, +5VSB
|
|
Power Consumption
|
TBD
|
|
Watchdog
|
1-255 seconds selectable
|
|
Dimension
|
170 x 170 mm (6.69in x 6.69in)
|

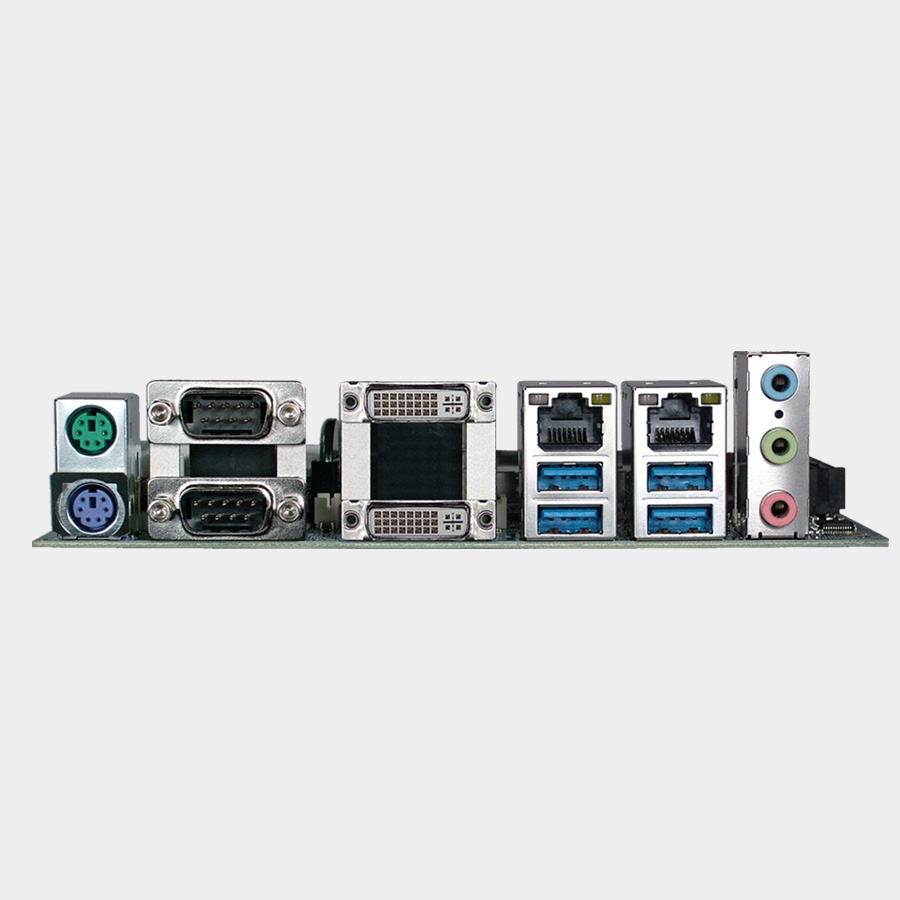

I/O Ports
|
S-ATA
|
3 x SATA-II (3.0Gb/s)
|
|
Floppy
|
n/a
|
|
USB
|
4 x USB 3.0, 4 x USB 2.0
|
|
Serial Ports
|
2 x 9-pin*, RS232 only
|
|
Parallel Port
|
n/a
|
|
Keyboard/Mouse
|
2 x PS/2
|
|
LAN
|
2 x 10/100/1000Mbps Intel chipsets
|
|
Audio
|
Realtek ALC888S HD audio with Line-in, Line-out and MIC
|
|
Video Output
|
2 x DVI-I (Discrete GFX card required if CPU not include GFX chip)
|
|
Expansion
|
1x PCI-E(16x) & 1x Mini PCIe
|
|
Digital I/O
|
n/a
|
|
LVDS Output
|
n/a
|
Environment
|
Temperature
|
Operating: 0 to 60°C, Storage: -40 to 85°C
|
|
Humidity
|
5 to 90%
|
