Product Description
|
CPU Type
|
Intel Celeron J1900 (2GHz)
|
|
Memory Support
|
1pcs x DDR-3L SO-DIMM socket (up to 8GB)
|
|
Chipset Type
|
On chip solution
|
|
Power Supply
|
External AC 100-240V 72W power supply
|
|
O/S Support
|
Win 8, POSReady7 and WES7
|
|
Dimension
|
388 x 223 x 234mm (with desktop stand)
|
|
Basic System Weight
|
6kg
|
|
Certificate
|
CE / FCC
|

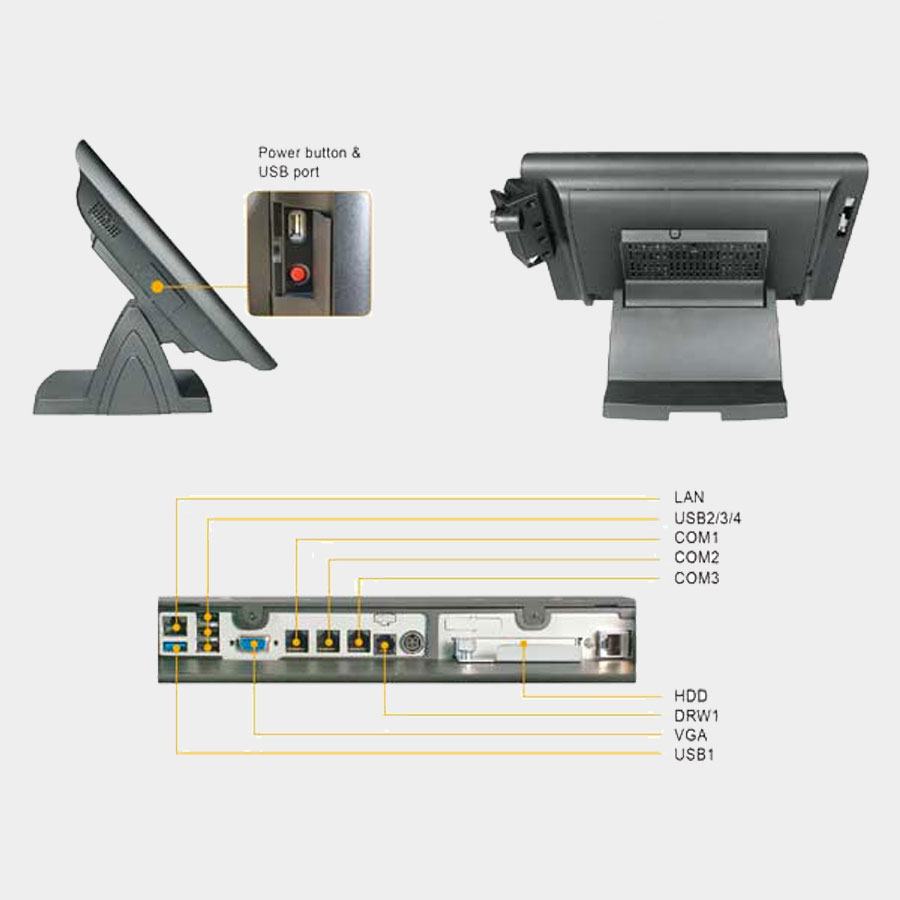

I/O Ports
|
Drive Bays
|
1 x 2.5″ HDD/SSD + 1 x SATA-DOM
|
|
USB
|
3 x USB 2.0, 1 x USB 3.0 on rear, 1 x USB 2.0 on side
|
|
Serial Ports
|
3 x RJ-45 (+1 optional)
|
|
LAN
|
1 x 10/100/1000Mbps
|
|
Audio
|
2W speaker
|
|
Expansion
|
RJ-11 cash drawer port
|
|
VGA
|
1 x 15-pin VGA
|
Display + Touch
|
LCD
|
15″ XGA TFT LCD
|
|
Touch Screen
|
5 wire analogue resistive or Projected Capacitive with optional Bezel-Free
|
|
Brightness
|
250cd/m²
|
|
Second Display
|
Optional 8″ or 10.4″ Display
|
|
Option
|
i-Button, MSR, VFD customer display, fingerprint reader, thermal printer
|
Environment
|
Temperature
|
Operating: 0 to 35°C, Storage: -5 to 60°C
|
|
Humidity
|
20 to 90%
|
