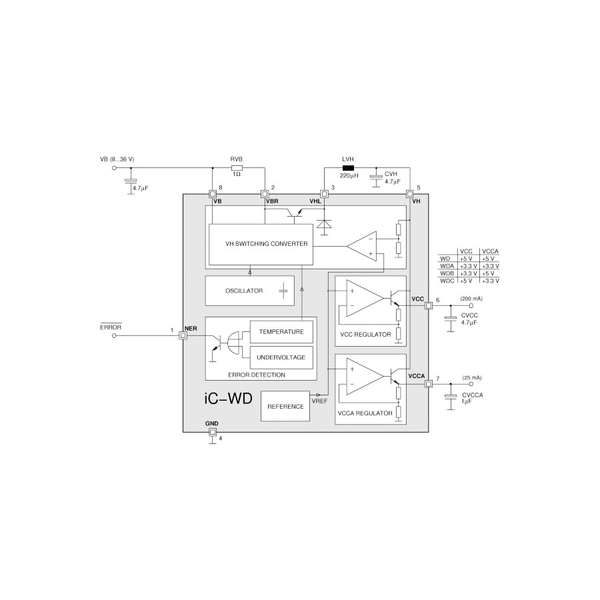

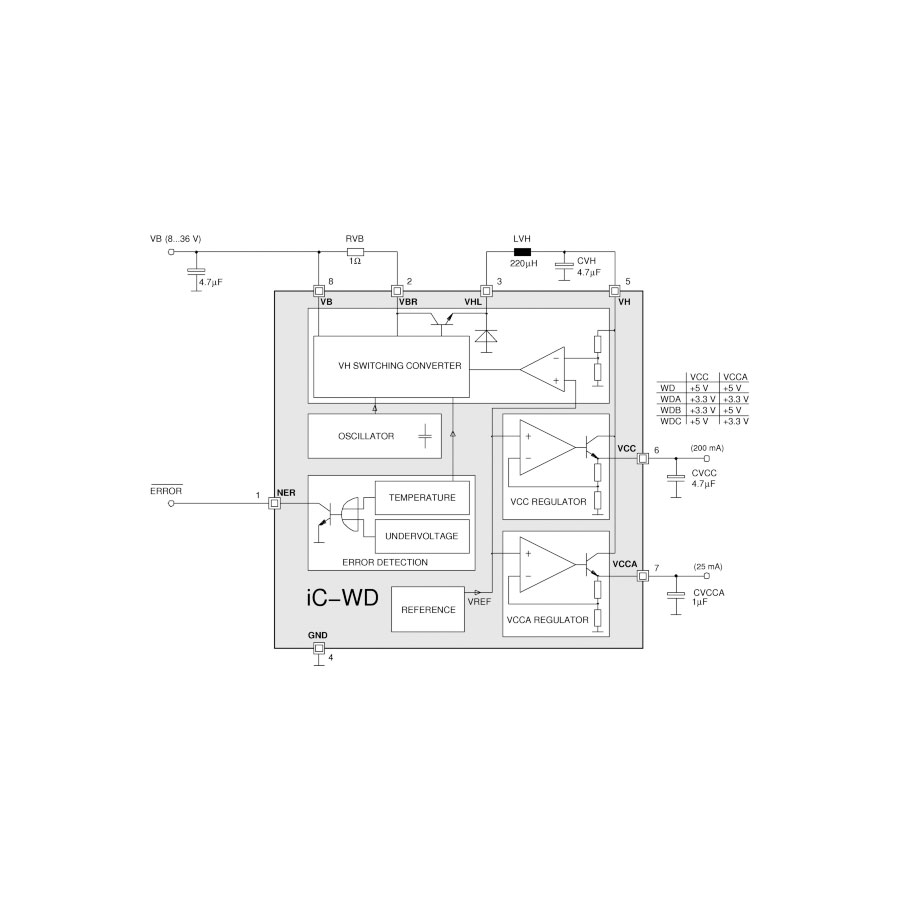

iC-WDA

Switched-Mode Dual 3.3V Regulator operates from 8 to 36V.

Features

Input voltage 8 to 36Vdc.
Highly efficient down converter.
Switching transistor and free-wheeling diode integrated.
Adjustment of the regulator cut-off current with external resistor.
Integrated 100 kHz oscillator without external components.
Switching frequency above the audible range.
Two downstream linear regulators with 200mA⁄25mA output current.
Internal reference voltages.
Small residual ripple with low capacitances in the µF range.
Fault message at overtemperature and undervoltage at current-limited open-collector output.
Shutdown of switching regulator at overtemperature.
ESD protection.
Low space requirement.
Option: enhanced temperature range of -40 to 85°C.

Datasheets


Manufacturer: iCHaus GmbH

SKU: Switched-Mode Dual 3.3V Regulator operates from 8 to 36V Category: Tags: ,

Description

Applications

3.3 V supply e.g. from 24 V industrial network

Packages

SO8
S08 Package

DFN10
DFN10 Package

Additional information

Type

Power Management
