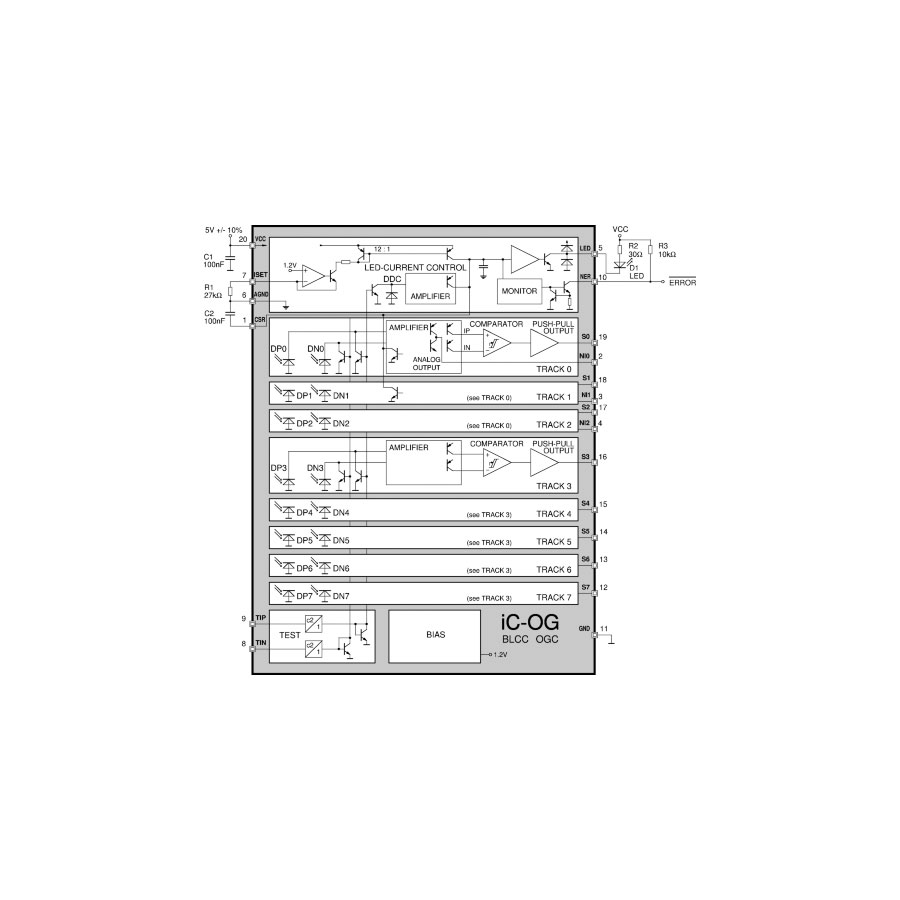

iC-OG
8-Bit Differential Scanning Opto Encoder for multi-purpose applications.
Features
Excellent matching and reliability.
Differential scanning eliminates dark current effects (half-track width: 300µm).
Comparators with precise photocurrent related hysteresis.
Short-circuit-proof, CMOS- ⁄ LSTTL-compatible outputs.
Additional analog push-pull outputs.
Adjustable 80mA LED current control for constant photosensor currents.
Control monitoring with alarm output.
Single 5V supply operation, low power consumption.
Options: extended temperature range, customized COB and reticle assembly.
Datasheets
Manufacturer: iCHaus GmbH
Description
Applications
Optical position decoding using the principle of differential scanning
Incremental and absolute encoders with a resolution of up to 8 bits
Packages
BLCC20
Additional information
| Type | Encoder – Optical |
|---|
