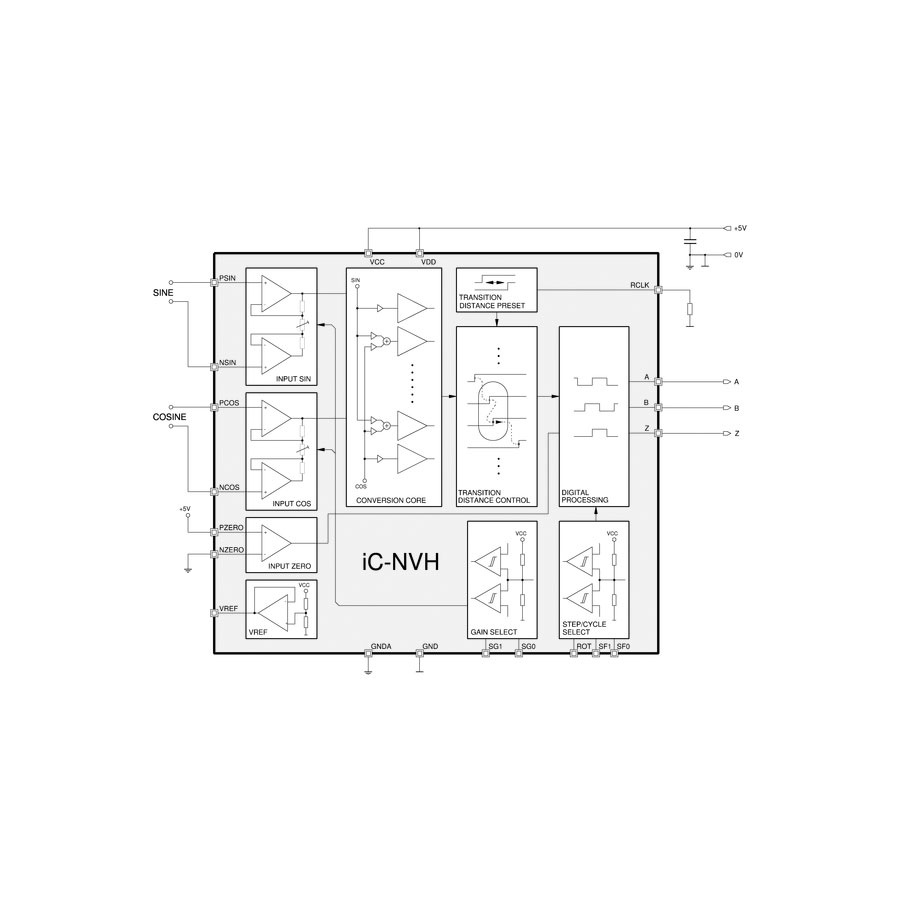

Click to enlarge

6-Bit Sin/D Flash Converter with up to 16-fold interpolation

iC-NV

6-Bit Sin/D Flash Converter with up to 16-fold interpolation.

Features

Fast flash converter.
Selectable resolution of up to 64 steps per cycle and up to 16-fold interpolation.
Integrated instrumentation amplifiers with adjustable gain.
Direct connection of sensor bridges, no external components required.
200kHz input frequency with the highest resolution.
Incremental A QUAD B output of up to 3.2MHz.
Reversed A⁄B phase selectable.
Index signal processing.
Low power consumption from single 5V supply.
TTL-⁄CMOS-compatible outputs.

Datasheets


Manufacturer: iCHaus GmbH

SKU: 6-Bit Sin/D Flash Converter with up to 16-fold interpolation Category: Tags: ,

Product Description

Applications

Angle interpolation from orthogonal sinusoidal input signals
Linear and rotary encoders
MR sensor systems

Packages

TSSOP20
TSSOP20 Package

Additional Information

Type

Encoder – Interpolators
