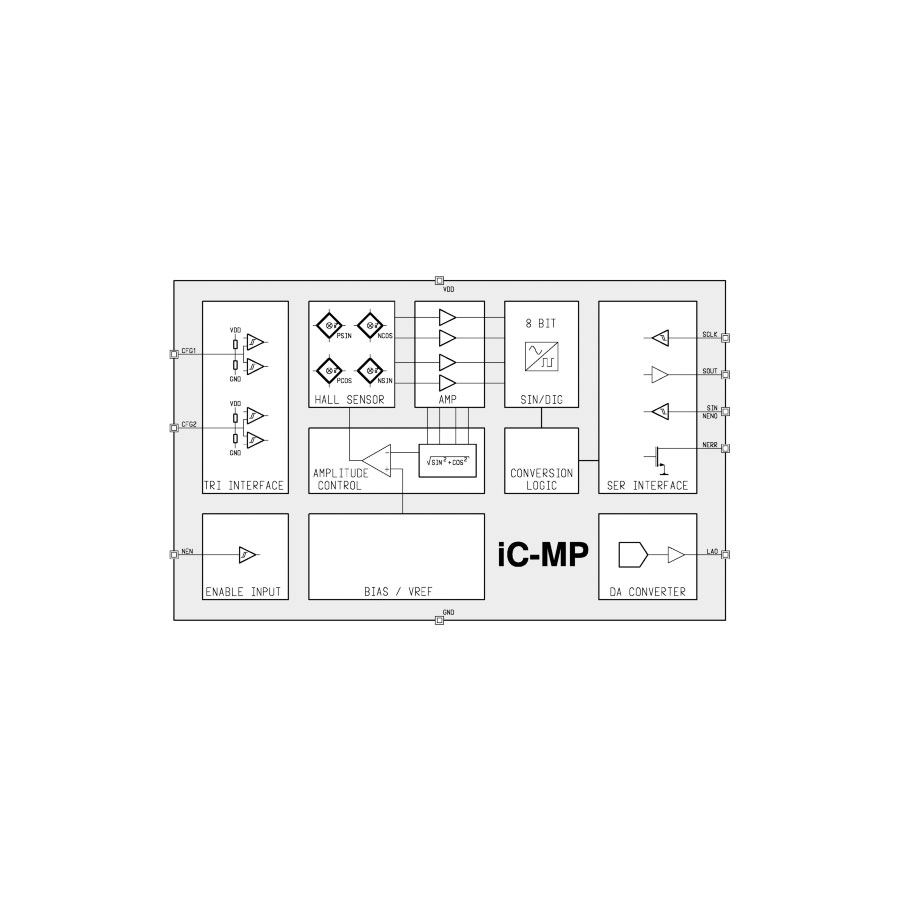

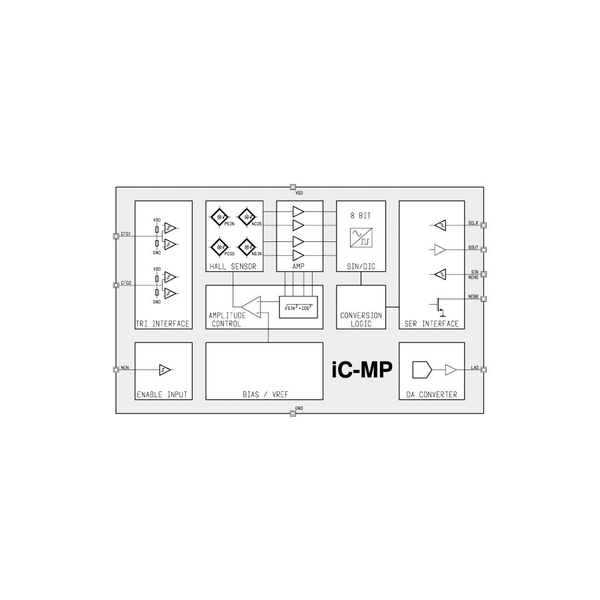

8 Bit Hall Encoder with ratiometric output


8 Bit Hall Encoder with ratiometric output.


Hall sensor array with automatic signal control.
Differential scanning for excellent magnetic stray field tolerance.
Realtime tracking interpolation to 256 angle steps permitting RPM speed of up to 12,000.
Selectable full scale angle of 90, 180, 270 or 360 degree.
Programmable zero/index position.
Ratiometric output with 0.5 to 4.5V or 0 to 5V.
Fast, serial absolute angle data output.
5V single supply operation.
Operational temperature range of -40 to +125°C.
Easy daisy chaining of multiple sensors: all analog/digital outputs are bus capable.
Loss-of-magnet and excessive frequency indication via error output.
Non-volatile setup provided by reconfigurable Zap ROM.
Power saving standby function.
Space-saving 10-pin DFN package measuring 4mm x 4mm.


Manufacturer: iCHaus GmbH
SKU: 8 Bit Hall Encoder with ratiometric output Category: Tags: ,

Product Description


Contactless potentiometer
Absolute 360° angle sensor
Magnetic rotary encoders
Magnetic multi-turn encoders


DFN10 Package


Additional Information


Encoder – Magnetic
