EFL-7502Q
Click to enlarge

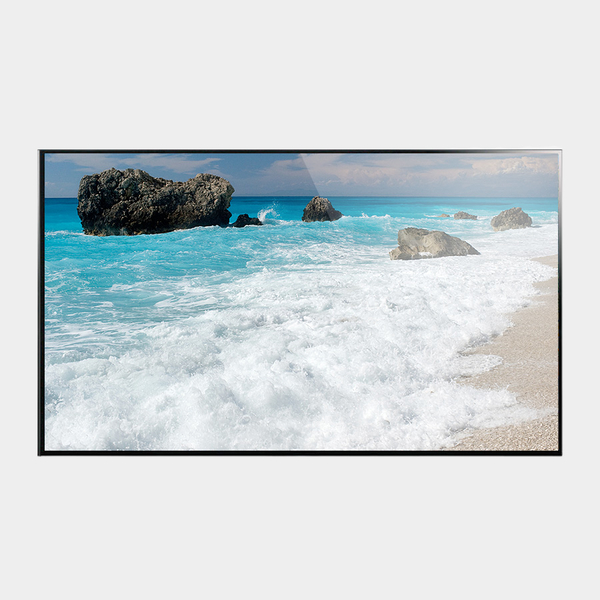

74.5" 4K Open Frame LCD Monitor with Optional Touch

EFL-7502Q

Description

The EFL-7502Q is a 74.5″ widescreen open frame industrial monitor designed for gaming and industrial control, as well as digital signage.
The 74.5″ LCD panel provides 3840 x 2160 (4K) resolution. With the option of touch screen and various input types, the monitor can be used in any situation.

Features

74.5″ Open Frame Monitor
Native Resolution 3840×2160 @30Hz
DP, HDMI & DVI inputs
Optional Multi-Point IR Touch Screen
LED backlight
Open Frame Type
1-2pcs sample, 25pcs, 50pcs, 100pcs and any multiple of 50pcs above this.

Downloads:

Datasheet

Manufacturer:

Effinet Systems Inc.
SKU: 74.5" 4K Open Frame LCD Monitor with Optional Touch Category: Tags: , , , , , , ,

Product Description

Screen Size
74.5″, 3840 x 2160 resolution (@30Hz)
Display Colours
1.07 Billion
Pixel Pitch
0.4298 x 0.4298 mm
Luminance
Typ. 450cd/m2
Backlight Lifetime
Typ. 35,000 hours
Viewing Angle
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
Backlight Type
LED
Contrast Ratio
Typ. 4000:1
Mount Type
Open frame mount and VESA arm mount
Power Input
AC 90-264V (450W)
Dimension
TBD

I/O Ports

Digital
DVI-I, HDMI and Display Port
Analogue
n/a
Optional Inputs
n/a

Optional Touch Screen

Touch Sensor Type
Capacitive, IR, Safety Glass
Touch Controller Type
Serial, USB

Environment

Temperature
Operating: 0 to 50°C

Additional Information

Screen Size

74.5″
Monitor Type

Monitor – 4K, Monitor – 25″+
Inputs

DP, DVI, HDMI
Mount Type

Open Frame, VESA Arm Mount
Touch Type

Capacitive, IR, Safety Glass
Brightness

450cd/m²
