EF-51LF
Click to enlarge

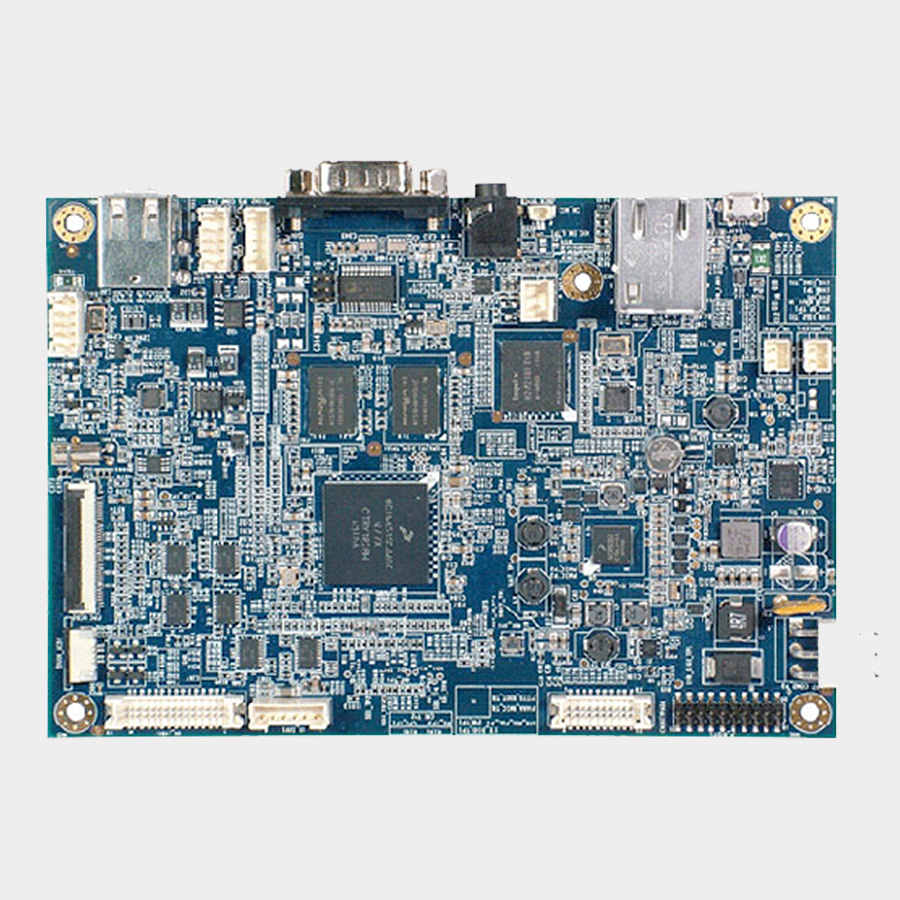

Freescale i.MX515 RISC Motherboard

EF-51LF

Description

The EL-51LF is a low power embedded RISC based single board computer built on the Freescale i.MX515 800MHz MPU.
The five USB ports and two COM ports are among the many I/O ports available on this single board computer, perfect for industrial tablet devices.

Features

RISC Based Mini Motherboard
Support Freescale i.MX515 800MHz
Low Power Consumption
Superior video and image processing capability
Compact architecture for space saving application
Dual view feature using built-in display
Rich I/O ports support various peripherals
Ready for Windows CE 6.0, Ubuntu 10.4 & Android

Downloads:

SKU: Freescale i.MX515 RISC Motherboard Category: Tags: , , ,

Product Description

CPU Type
Freescale i.MX515 800MHz (embedded)
GPU Spec
Up to WXGA (1280 x 800)
Memory Support
512Mb embedded DDR2 memory
Flash Memory
4GB e-NAND flash
Power Requirement
Support DC (12V 5A)
Dimension
145 x 102 mm (5.71in x 4.02in)
Certification
FCC / CE

I/O Ports

TTL LCD Interface
1 x 40-pin FPC connector for 18-bit TTL 7″ LCD
LVDS LCD Interface
2 x 15-pin LVDS connector for 15″ LCD
Inverter
1 x 6 pin connector for 12V inverter
Touch Panel
1 x 4-pin FPC connector for 4-wire touch panel
SD/MMC
1 x micro-SD slot
Audio
1 x Line-out, Audio Codec (Freescale SGTL5000XNAA3R2)
Serial Port
2 x 9-pin connector COM2 for RS485
LAN
1 x RJ45 SMSC8710A 10/100Mbps
Digital I/O
2 x 5-pin for 3I/3O
USB
5 x USB 2.0
Keypad
Reserved Keypad connector for 48 key switch

Environment

Temperature
Operating: 0 to 60°C, Storage: -40 to 85°C
Humidity
20 to 90%

Additional Information

Board Size

RISC Single Board

Core

Freescale i.MX515

Operating Temperature

0°C to 60° C
