COE-592LF
Click to enlarge

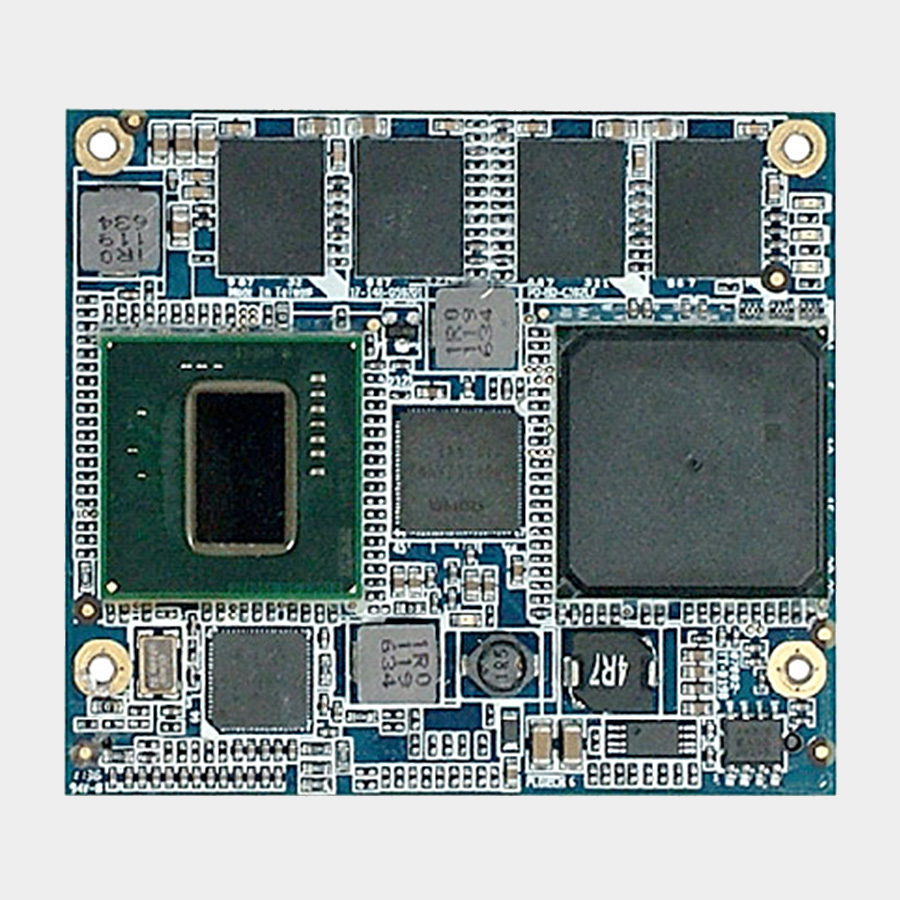

Intel E6x0 CoreExpress Motherboard

COE-592LF

Description

The COE-592LF is a low power embedded CoreExpress single board computer built on the latest Intel Atom E640/E680 CPU.
The seven USB ports and two SATA ports are among the many I/O ports available on this single board computer, and expansion is possible with PCI-e slots on the accompanying CMB-220LF motherboard.

Features

Intel Atom CoreExpress CPU Module
Support Intel ATOM E640 (1.0GHz) or E680 (1.6GHz)
Gigabit LAN
Support ATX power supply<
2 Channel x 18/24-bit LVDS
Support up to 2GB of RAM
Support 2 x SATA
Expansion for PCI-e

Downloads:

Datasheet
SKU: Intel E6x0 CoreExpress Motherboard Category: Tags: , , ,

Product Description

CPU Type
Intel Atom E640 (1.0GHz) or E680 (1.6GHz) embedded type
Chipset
Intel EG20T
Memory Support
1pc x DDR2 SO-DIMM on-board (up to 2GB)
Power Supply
Support ATX power
Power Requirement
+5V and +5Vsb (*Please ask for specific requirements*)
Dimension
65 x 58 mm

I/O Ports

SATA
2 x SATA-II
IDE
n/a
Expansion BUS
3 x PCI-e (on CMB-220LF)
USB
7 x USB 2.0
LAN
1 x Gigabit
LCD Interface
18/24-bit LVDS (up to 1280 x 768)

Environment

Temperature
Operating: 0 to 60°C, Storage: -40 to 85°C
Humidity
20 to 90%

Additional Information

Board Size

COM Express
Core

Intel, Intel Atom
Expansion

PCI-e
Operating Temperature

0°C to 60° C
