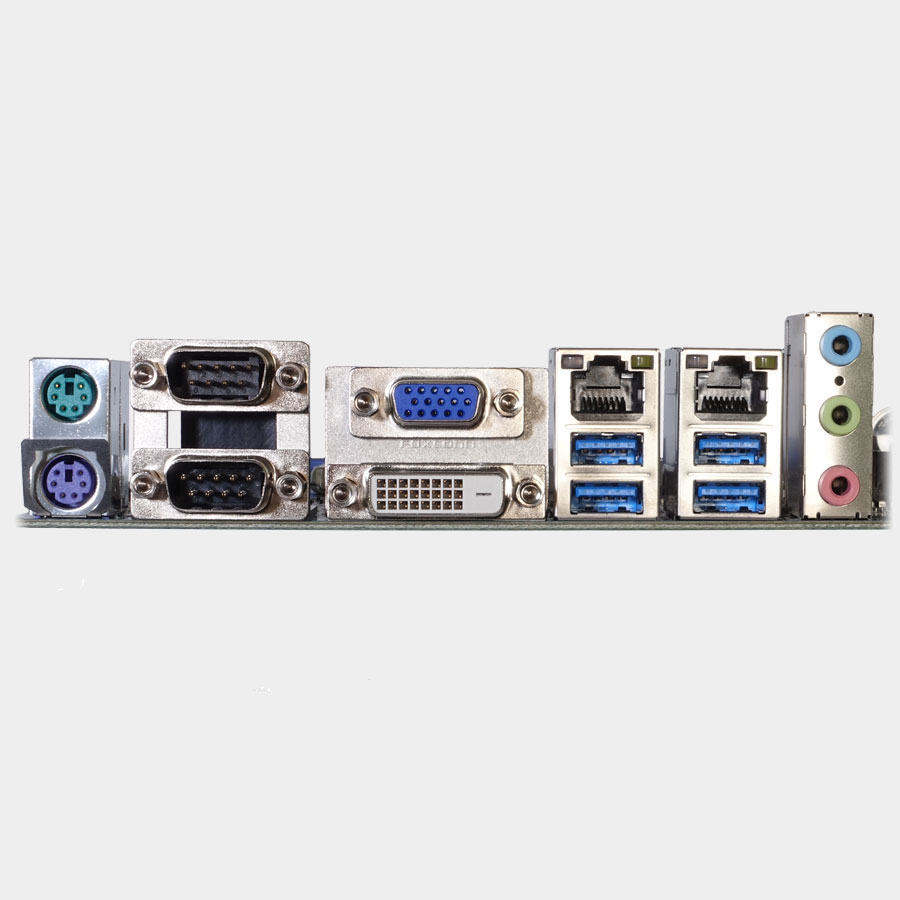

BU-2509 BU2509_ports

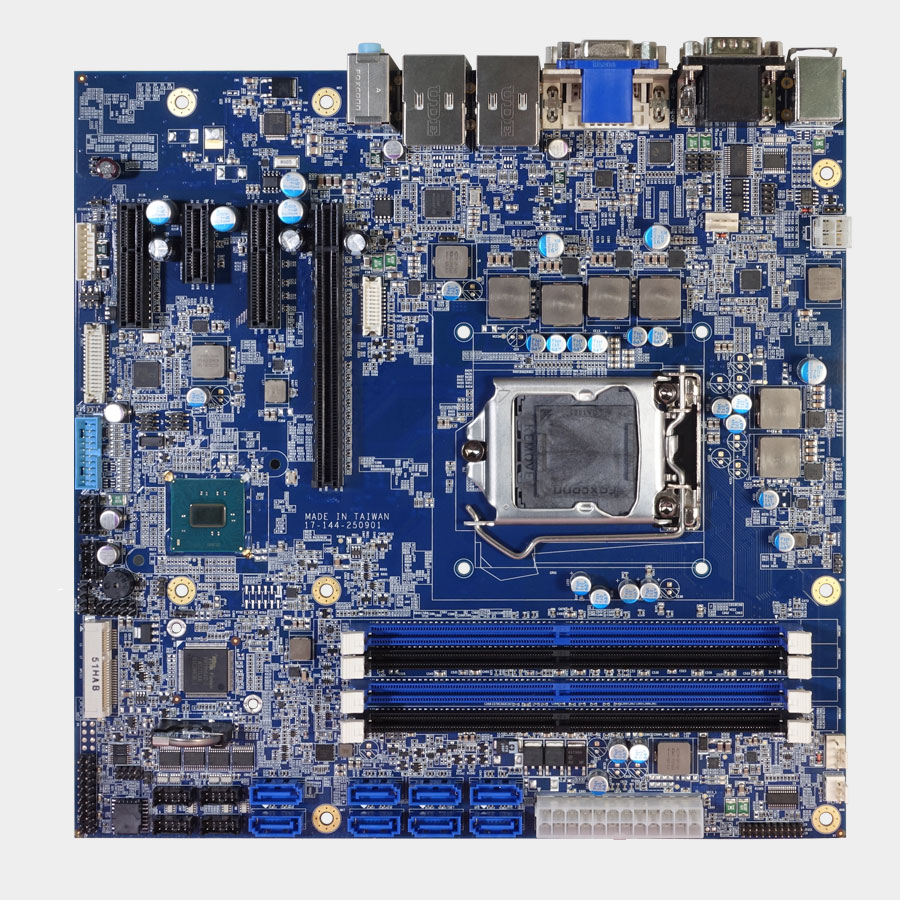

Intel Core-i (6th gen.) micro-ATX Motherboard

BU-2509

Description

The BU-2509 is a high performance Micro-ATX industrial motherboard built for multi-processing on the Intel Xeon or Core-i CPU.
The 10 USB ports and six COM ports are among the many I/O ports available on this single board computer, and expansion is possible with 4 x PCI-e slots.

Features

Intel C226 micro ATX Industrial Motherboard
Support 6th gen. Xeon or Core-i CPU (s1151)
Dual Gigabit LAN
Support ATX power supply
6 x SATA 3.0 (RAID 0, 1, 5)
Support up to 32GB of RAM (inc ECC type)
PCI-e 16x + PCI-e 4x + PCI-e 1x + mini-PCI-e
HD audio chip

Downloads:

SKU: Intel Core-i (6th gen.) micro-ATX Motherboard Categories: , Tags: , , ,

Product Description

CPU Type
Intel Xeon E3, 6th gen. Core i3, i5 and i7 or Pentium (socket 1151)
Chipset
Intel C236 / H110 / Q170 (dependent on CPU)
Memory Support
4pc x DDR-4 UDIMM socket (up to 32GB)
Power Supply
Support ATX power (24+4)
Power Requirement
+5V, +12V, +3.3V, +5VSB
Power Consumption
+5V:1.57A; +12V:5.09A; +3.3V:0.43A; +5VSB:0.16A (CPU: i7 6700 3.4GHz)
Watchdog
1-255 seconds selectable
Dimension
244 x 244 mm

I/O Ports

S-ATA
C236: 6 x SATA-III (6.0Gb/s), 2 x SATA-II; H110 / Q170: 4 x SATA-III (RAID 0,1,5)
TPM
1 x LPC pin-header (for TPM optional module)
USB
6 x USB 3.0, 4 x USB 2.0
Serial Ports
6 x 9-pin*, COM2 for RS422/RS485
Parallel Port
n/a
Keyboard/Mouse
2 x PS/2
LAN
2 x 10/100/1000Mbps Intel chipsets
Audio
Realtek ALC888S HD audio with Line-in, Line-out and MIC
Video Output
1 x VGA, 1 x DVI-D, 1 x eDP
Expansion
1x PCI-e(x16), 1x PCI-e(x4), 1x PCI-e(x1), & 1x mini-PCIe
Digital I/O
8x in / 8x out
LVDS Output
via eDP converter

Environment

Temperature
Operating: 0 to 60°C, Storage: -40 to 85°C
Humidity
5 to 90%

Additional Information

Board Size

Micro-ATX

Core

Intel, Intel Core i3, Intel Core i5, Intel Core i7, Intel Xeon

Operating Temperature

0°C to 60° C

Expansion

mini PCI-e, PCI-e
