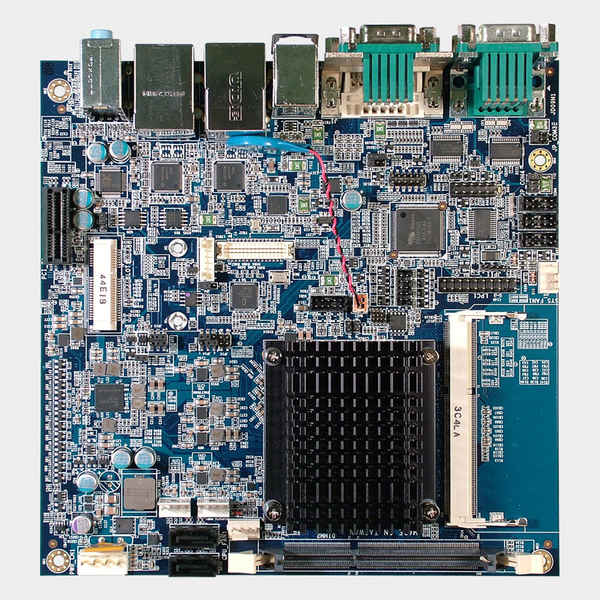

Product Description
|
CPU Type
|
Intel Atom® and Celeron® SoC (Bay Trail I/M/D)
|
|
Chipset
|
Intel Bay Trail SoC
|
|
Memory Support
|
2pc x DDR-3 SO-DIMM socket (up to 8GB) *see datasheet
|
|
Power Supply
|
DC 12V only (power-on mode: power button on / AC auto on / last state)
|
|
Power Requirement
|
+12V
|
|
Power Consumption
|
+12V: 0.96A (CPU: J1900 2.0GHz)
|
|
Watchdog
|
1-255 seconds selectable
|
|
Dimension
|
170 x 170 mm
|

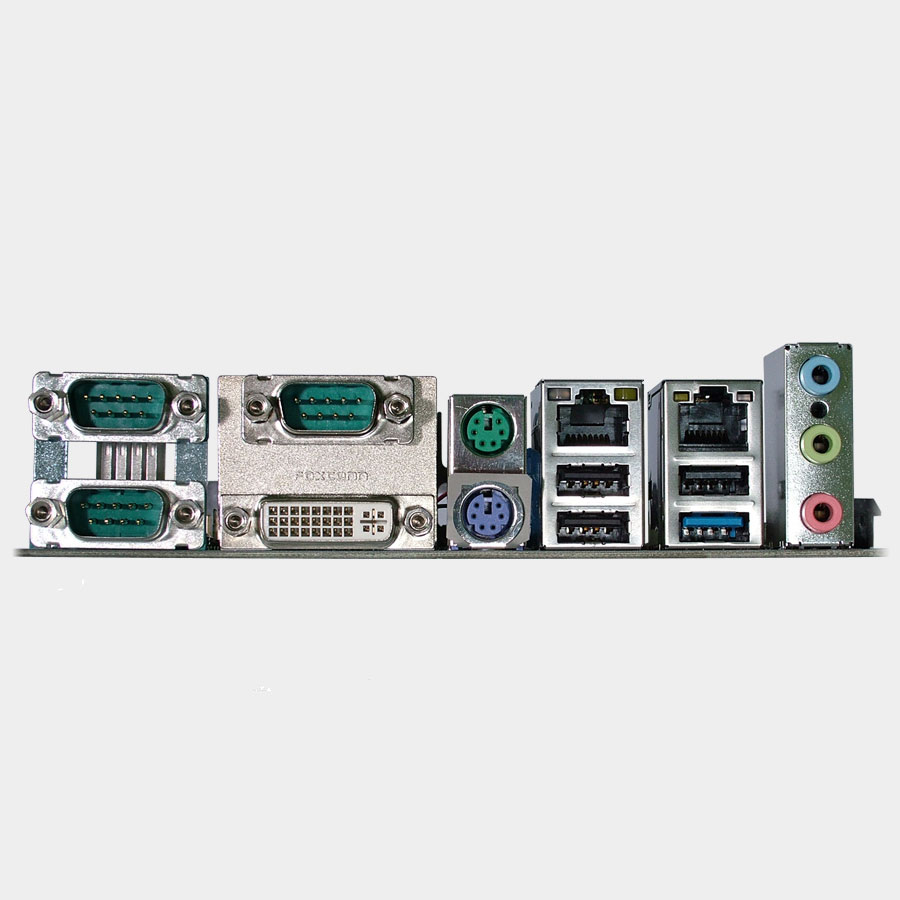

I/O Ports
|
S-ATA
|
2 x SATA-II (3.0Gb/s)
|
|
TPM
|
1 x LPC pin-header (for TPM optional module)
|
|
USB
|
3x USB2.0, 1x USB3.0(rear IO), 2x USB2.0(internal) (E3815/N2807 supports 3x USB2.0, 1x USB 3.0)
|
|
Serial Ports
|
4 x 9-pin*, RS232 only *see datasheet
|
|
Parallel Port
|
n/a
|
|
Keyboard/Mouse
|
2 x PS/2
|
|
LAN
|
2 x 10/100/1000Mbps Intel chipsets (E3815/N2807 supports only single LAN)
|
|
Audio
|
Realtek ALC888S HD audio with Line-in, Line-out and MIC
|
|
Video Output
|
1 x DVI-I, 1 x LVDS
|
|
Expansion
|
1x PCI-e(x1), & 1x mini-PCIe
|
|
Digital I/O
|
4x in / 4x out
|
Environment
|
Temperature
|
Operating: 0 to 60°C, Storage: -40 to 85°C
|
|
Humidity
|
5 to 90%
|
