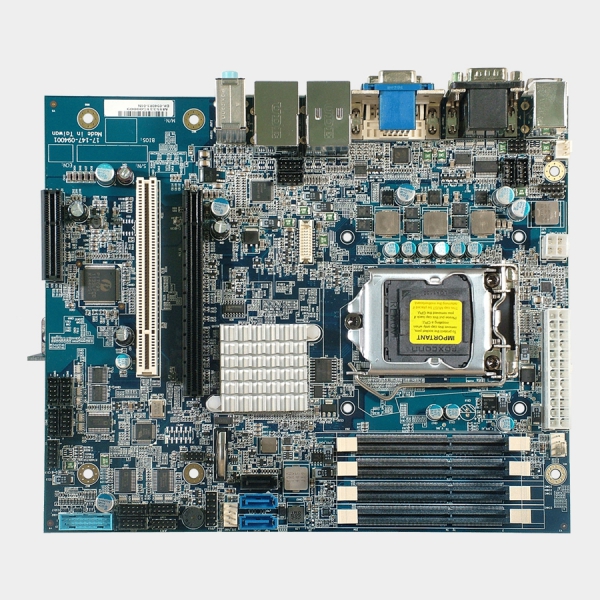

BK-0940
Click to enlarge

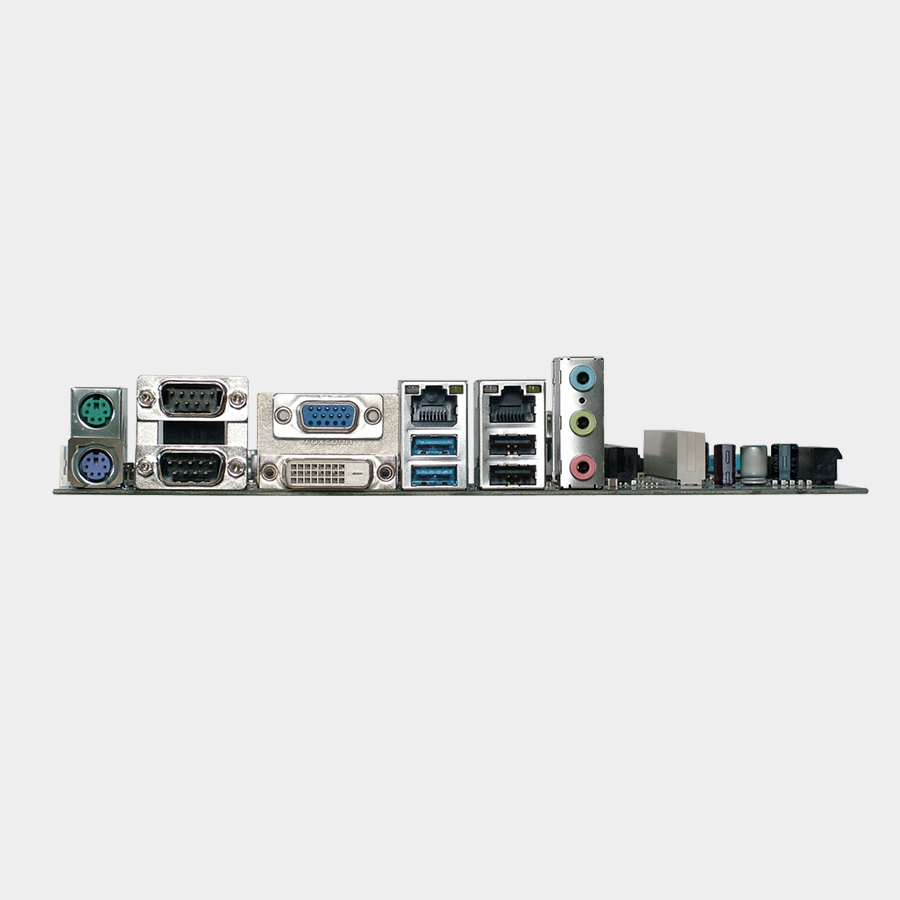

BK-0940 bk-0940-side

Intel Core-i (4th gen.) Flex-ATX Motherboard

BK-0940

Description

The BK-0940 is a high performance Flex ATX industrial motherboard built for multi-processing on the Intel 4th gen. Core-i CPU.
The ten USB ports and up to ten COM ports are among the many I/O ports available on this single board computer, and expansion is possible with PCI-e and PCI cards.

Features

Intel Q87 Flex ATX Industrial Motherboard
Support 4th gen. Core-i or Pentium CPU (s1150)
Dual Gigabit LAN
Support ATX power supply
2 x SATA 3.0 (RAID 0, 1, 5)
Support up to 32GB of RAM
PCI-e 16x + PCI-e 4x + PCI
HD audio chip

Downloads:

Datasheet
SKU: Intel Core-i (4th gen.) Flex-ATX Motherboard Category: Tags: , ,

Product Description

CPU Type
Intel 4th gen. Core-i series (socket 1150)
Chipset
Intel H81/Q87
Memory Support
4pc x DDR-3 DIMM socket (up to 32GB)
Power Supply
Support ATX power
Watchdog
1-255 seconds selectable
Dimension
229 x 191 mm

I/O Ports

SATA
2 x SATA-III + 1 x SATA-II (RAID 0, 1, 5)
Floppy
n/a
USB
4 x USB3.0 and 6 x USB2.0
Serial Ports
2 x 9-pin with additional headers for 8 more
Parallel Port
n/a
Keyboard/Mouse
2 x PS/2
LAN
2 x 10/100/1000Mbps Intel chipsets
Audio
Realtek ALC888S HD audio with Line-in, Line-out and MIC
Expansion
1 x PCI-e 16x, 1 x PCI-e 4x, 1 x PCI
Display Output
DVI-D + VGA + e-DP

Environment

Temperature
Operating: 0 to 60°C, Storage: -40 to 85°C
Humidity
5 to 90%

Additional Information

Board Size

Micro-ATX
Core

Intel, Intel Core i3, Intel Core i5, Intel Core i7
Expansion

PCI, PCI-e
Operating Temperature

0°C to 60° C
