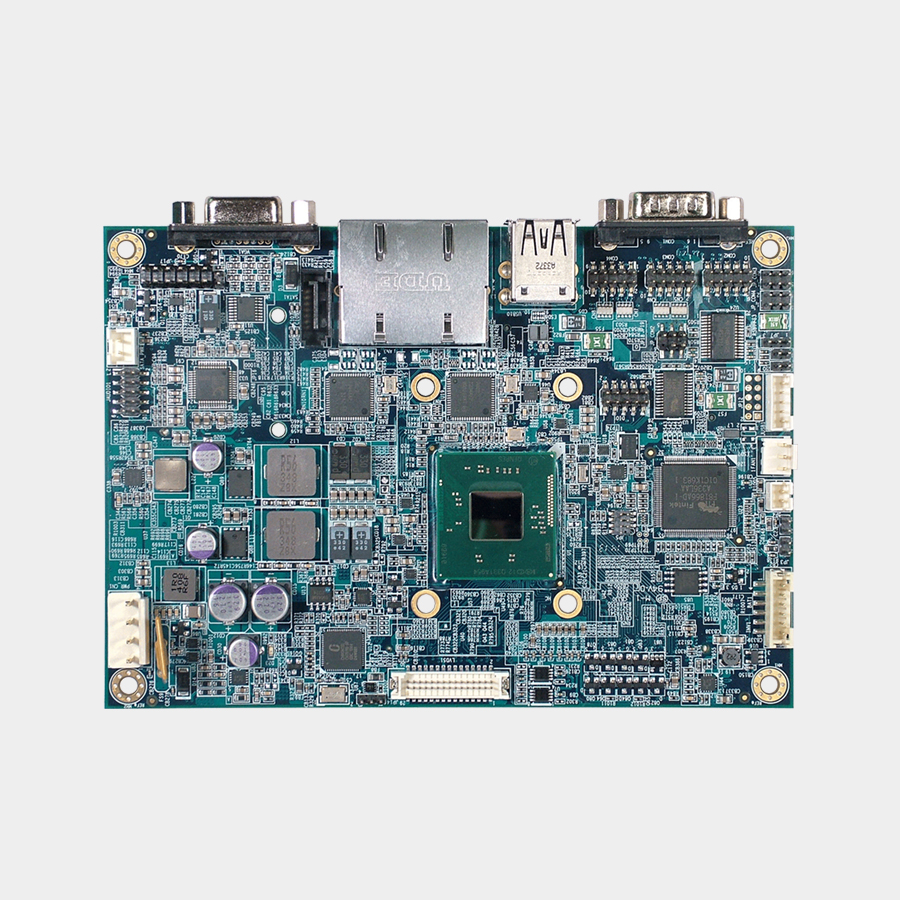

Product Description
|
CPU Type
|
Intel BayTrail N2807 (1.58GHz) or N2930 (1.83GHz)
|
|
Chipset
|
Intel SOC (BayTrail)
|
|
Memory Support
|
1pc x DDR3L SO-DIMM socket (up to 8GB)
|
|
Power Supply
|
Support 12V DC power
|
|
Power Requirement
|
+12V (*Please enquire for specific requirements*)
|
|
Power Consumption
|
0.88A @ 12V for N2930 version
|
|
Watchdog Timer
|
1-255 seconds selectable with reset and NMI
|
|
Dimension
|
102 x 145 mm (4.02in x 5.71in)
|

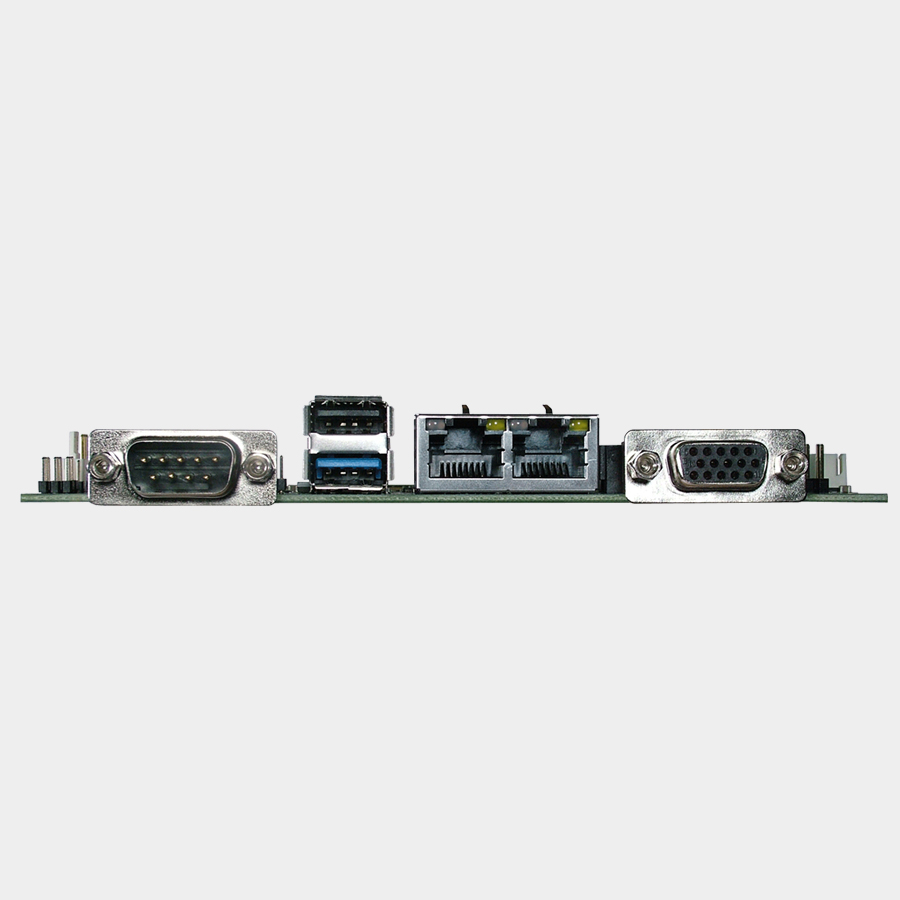

I/O Ports
|
SATA
|
1 x SATA-II
|
|
Expansion BUS
|
1 x mini PCI-e and 1 x CFast slot
|
|
USB
|
1 x USB3.0 + 2 x USB 2.0
|
|
Serial Ports
|
4 x 9-pin, COM1 for RS232/422/485
|
|
Digital I/O
|
4-in / 4-out
|
|
Keyboard/Mouse
|
n/a
|
|
LAN
|
2 x 10/100/1000Mbps
|
|
Audio
|
Realtek ALC888 HD codec
|
|
LCD Interface
|
24-bit LVDS
|
Environment
|
Temperature
|
Operating: 0 to 60°C, Storage: -40 to 85°C
|
|
Humidity
|
20 to 90%
|
