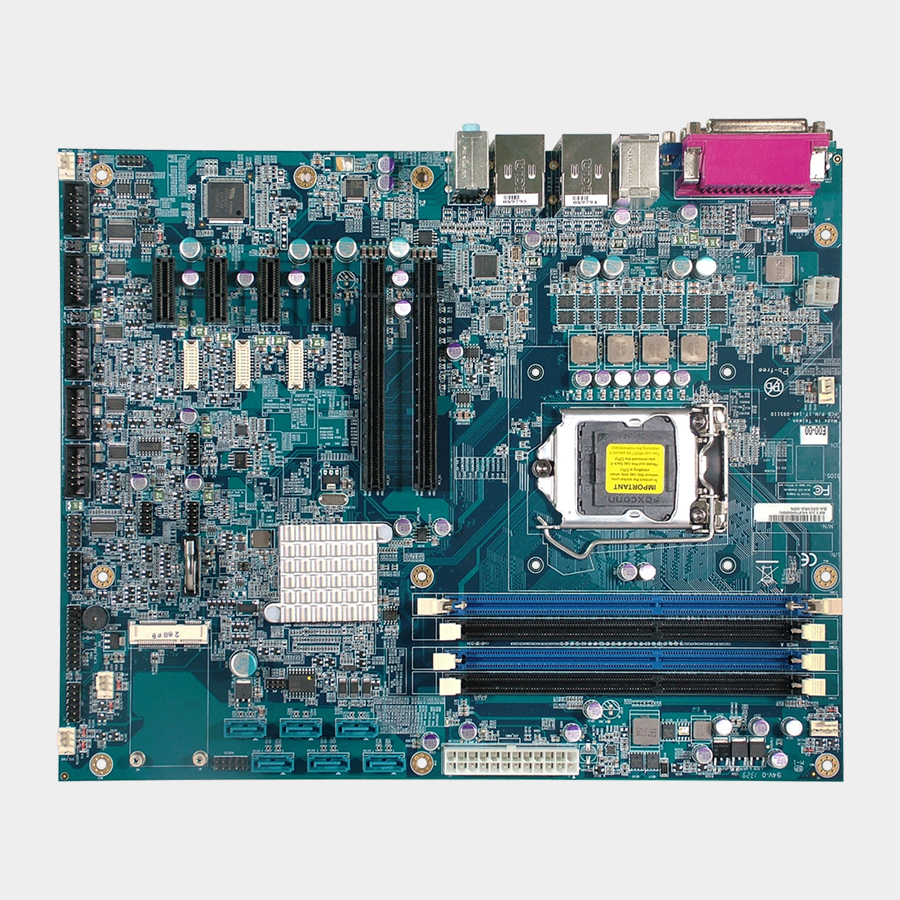

BA-0951 ba-0951-side

Intel Xeon E3 v3 ATX Motherboard

BA-0951

Description

The BA-0951 is a high performance full ATX industrial motherboard built for multi-processing on the Intel Xeon E3 v3 CPU.
The twelve USB ports and six COM ports are among the many I/O ports available on this single board computer, and expansion is possible with PCI-e slots.

Features

LGA1150 ATX Industrial Motherboard
Support Intel Xeon E3 v3 CPU
Support up to 32 GB DDR3 RAM
Support dual Gigabit LAN
Supports SATA RAID 0, 1, 5, 10
Expansion for 2x PCI-E(8x), & 4x PCI-E(4x)

Downloads:

SKU: Intel Xeon E3 v3 ATX Motherboard Category: Tags: , , ,

Product Description

CPU Type
Intel Xeon E3 v3
Chipset
Intel PCH C226 + SPI
Memory Support
4pc x DDR-3 DIMM socket inc. ECC (up to 32GB)
Power Supply
Support ATX power
Power Requirement
+5V, +12V, -12V, +3.3V, +5VSB
Power Consumption
TBD
Watchdog
1-255 seconds selectable
Dimension
305 x 244 mm (12in x 9.611in)

I/O Ports

S-ATA
6 x SATA-III (6.0Gb/s) (Raid 0,1,10,5)
USB
8 x USB 2.0, 4 x USB 3.0
Serial Ports
6 x 9-pin*, COM2 for RS232/422/485
Parallel Port
1 x 25-pin, supporting SPP, EPP and ECP
Keyboard/Mouse
2 x PS/2
LAN
2 x 10/100/1000Mbps Intel chipsets
Audio
Realtek 81866AD-I HD audio with Line-in, Line-out and MIC
Expansion
2x PCI-E(8x) and 4x PCI-E(4x)
Digital I/O
4 in / 4 out
Display output
1 x VGA + 3 x Display Port

Environment

Temperature
Operating: 0 to 60°C, Storage: -40 to 85°C
Humidity
5 to 90%

Additional Information

Board Size

Full ATX

Core

Intel, Intel Xeon

Expansion

PCI-e

Operating Temperature

0°C to 60° C
