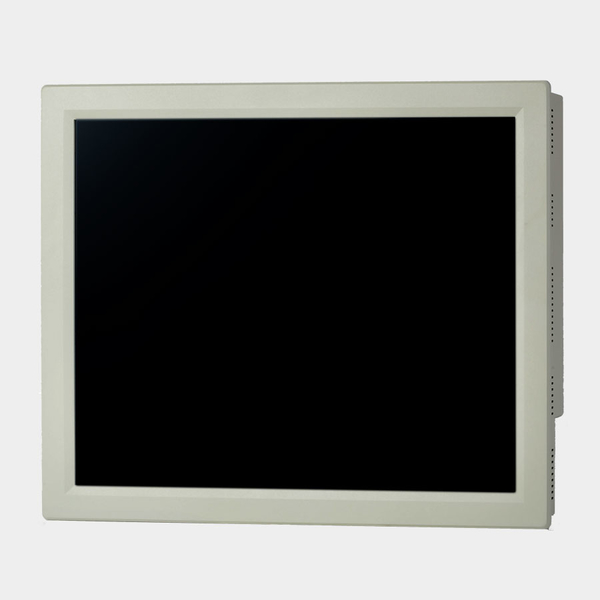

SX1900(-T)
Description
The SX1900 is a 19″ panel mount industrial monitor designed for industrial automation and monitoring. The 19″ LCD panel provides 1280 x 1024 (SXGA) resolution.
With the option of touch screen and VESA mount, the monitor can also be used as an interactive terminal.
Features
19″ Panel Mount Monitor
1280 x 1024 Resolution
VGA, DVI-I, S-Video and Composite inputs
Optional VESA arm mount
Optional Resistive touch screen
Backlight Lifetime: Typ 50,000 hours
Support AC 100-240V input
Optional colour: Ivory, Dark Grey
Suitable for:
Factory Automation & Control
Downloads:
Description
|
Screen Size
|
19″, 1280 x 1024 resolution
|
|
Display Colours
|
16.7M
|
|
Pixel Pitch
|
0.294 x 0.294 mm
|
|
Luminance
|
Typ. 300cd/m2
|
|
Backlight Lifetime
|
Typ. 50,000 hours
|
|
Viewing Angle
|
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
|
|
Input Frequency
|
Hor. 31.5-80 KHz, Ver. 56-75Hz
|
|
Contrast Ratio
|
Typ. 1000:1
|
|
Mount Type
|
Panel mount and VESA arm mount
|
|
Power Input
|
AC 100-240V (1.4-0.7A)
|
|
Dimension
|
438 x 363 x 69.5 mm (17.2in x 14.3in x 2.74in)
|
|
Weight
|
7.4Kg (16.3lb)
|
|
Chassis
|
Front – Aluminium, Rear – Steel
|
I/O Ports
|
Digital
|
Optional DVI-I
|
|
Analogue
|
15-pin VGA
|
|
Optional Inputs
|
S-Video and Composite video
|
Optional Touch Screen
|
Touch Sensor Type
|
4 wire resistive type
|
|
Touch Controller
|
RS232 9-pin support Win2k/XP/7/8, Linux
|
Environment
|
Temperature
|
Operating: 0 to 50°C
|
Additional information
| Screen Size | 19" |
|---|---|
| Mount Type | Panel Mount |
| Inputs | DVI, VGA |
| Touch Type | Resistive |
| Operating Temperature | 0°C to 50°C |
| Brightness | 300 cd/m² (Typ.) |
| Monitor Type | Factory/Industrial |
