SP-6205

Description

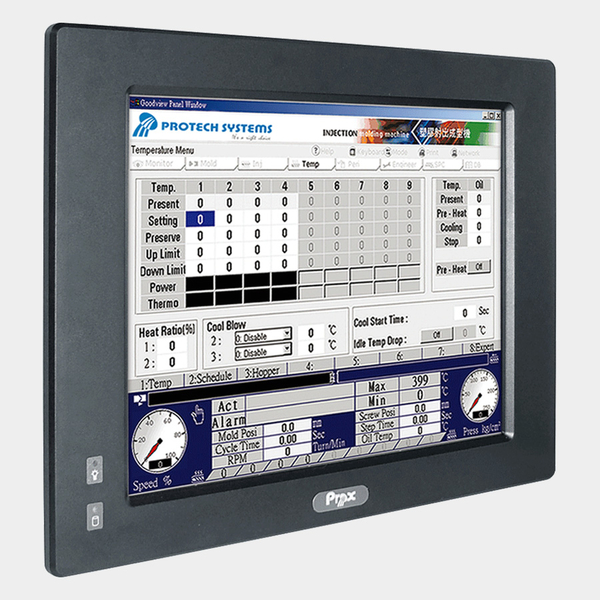

The SP-6205 is a high performance panel mount panel PC with multi-processing support due to the Intel Corei series CPU and is designed to be lowered into the front of a cabinet. The built-in 15″ LCD panel provides 1024 x 768 (XGA) resolution, and the 5-wire resistive touch sensor provides precise control.
The Gigabit LAN, USB3.0 and four COM ports are among the many I/O ports available, along with optional 802.11g/n wireless, and PCI-e x4 slot expansion.

Features

15″ High Performance Panel PC
Supports Dual/Quad Core CPU
Dual 1000Mbps LAN
5 wire resistive touch screen
Support up to 16GB of RAM
Optional 75/100mm VESA mount
IP65 Stainless Steel bezel

Suitable for:

Factory Control
Industrial Automation

Downloads:

SKU: 15" Intel Core-i (3rd gen. emb.) HMI Terminal (Panel Mount) Categories: , Tags: , , ,

Description

CPU Type
Intel Core i3/i5/i7 (rPGA-988 Embedded) with QM77 or HM76 chipset
Memory Support
2pcs x DDR-3 SO-DIMM socket (up to 16GB)
Front Bezel
Aluminium
Waterproof Level
IP65 front side
Power Supply
9-36V DC input, optional AC-DC power supply
O/S Support
Win XP / 7
Dimension
408 x 308 x 128mm
Basic System Weight
TBC
VESA support
100mm VESA bracket (optional)
Certificate
CE / FCC

I/O Ports

Drive Bays
1 x 2.5″ SATA HDD, 1 x CFast slot onboard, and 1 x slim SATA CD
USB
4 x USB 3.0
Serial Ports
4 x 9-pin*, COM2 for RS232/422/485
Parallel
1 x 25-pin, supporting SPP, EPP and ECP
Keyboard/Mouse
n/a
LAN
2 x 10/100/1000Mbps
Wireless LAN
Optional 802.11b/g/n card
Audio
Line-out, MIC
Expansion
2 x PCI-e x4
VGA
1 x 15-pin VGA
Digital I/O
8 in / 8 out
LCD
15″ XGA TFT LCD
Touch Screen
5 wire analogue resistive (USB interface)

Environment

Temperature
Operating: -5 to 45°C, Storage: -20 to 80°C
Humidity
10 to 90%

Additional information

Screen Size

15"

Core

Intel, Intel Core i3, Intel Core i5, Intel Core i7

Expansion

PCI-e

Fanless

Yes

Mount Type

Panel Mount, VESA Mount

Operating System (OS)

Windows 7, Windows XP

Operating Temperature

-5°C to 45°C

IP Rating

IP65 Front Side (Only)
