SP-6122

Description

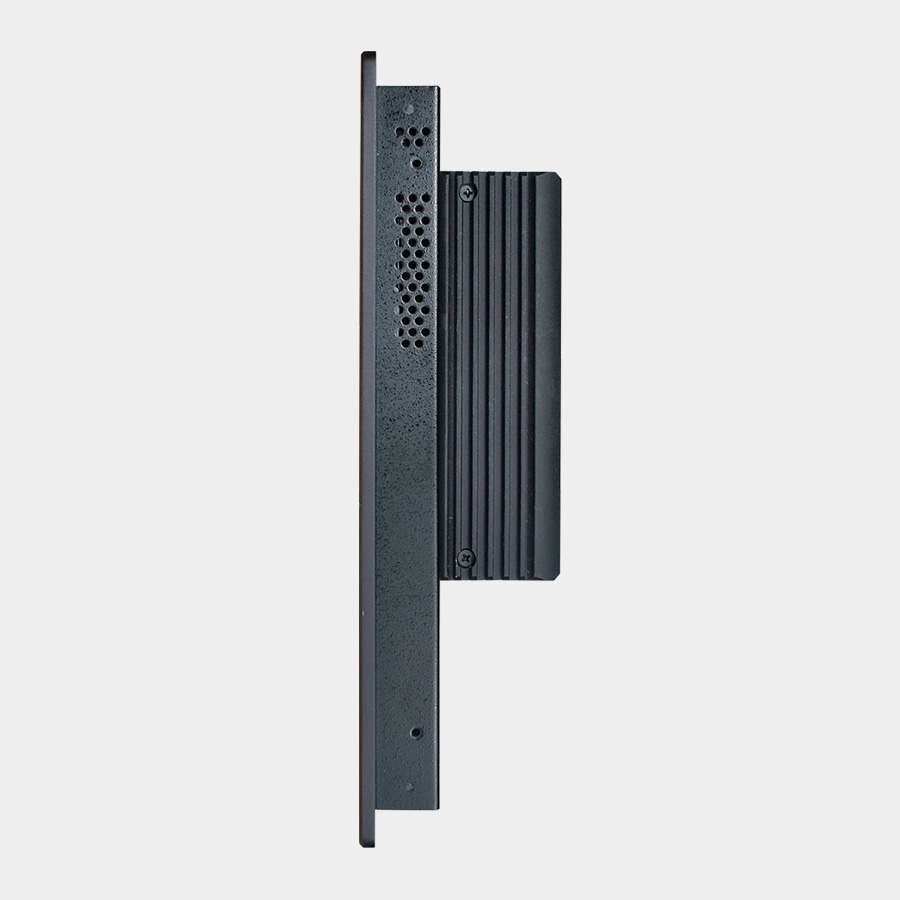

The PPC-6122 panel mount panel PC provides good performance without using too much power due to the Intel Atom CPU and is designed to be lowered into the front of a cabinet. The built-in 12″ LCD panel provides 1024 x 768 (XGA) resolution, and the 5-wire resistive touch sensor provides precise control.
The dual Gigabit LAN and two COM ports are among the many I/O ports available on this panel PC.

Features

12″ Fanless and Low Power Panel PC
Supports Atom N2800/D2550 CPU
2 x Gigabit LAN
Support DC 9-36V power supply
5 wire resistive touch screen
Support for up to 4GB RAM
Optional 75mm VESA mount
Aluminium front bezel

Suitable for:

Factory Control
Industrial Automation

Downloads:

SKU: 12" Intel D2550 HMI Terminal (Panel Mount) Categories: , Tags: , , ,

Description

CPU Type
Intel Atom N2800/D2550 (Embedded)
Memory Support
1pcs x DDR-3 SO-DIMM socket (up to 4GB)
Front Bezel
Stainless Steel
Waterproof Level
IP65 front side
Power Supply
9-36V DC input, optional AC-DC power supply
O/S Support
Windows 7
Dimension
324 x 246 x 72mm
Basic System Weight
4.1Kg
VESA support
75mm VESA bracket (optional)
Certificate
CE / FCC

I/O Ports

Drive Bays
1 x 2.5″ SATA HDD, 1 x CFast slot onboard
USB
2 x USB 2.0
Serial Ports
2 x 9-pin*, COM2 for RS232/422/485
Parallel
n/a
Keyboard/Mouse
n/a
LAN
2 x 10/100/1000Mbps
Wireless LAN
n/a
Audio
Line-out, MIC
Expansion
1 x mini-PCI-e, 1 x SIM card slot for WWAN
Video output
1 x DVI
Digital I/O
n/a
LCD
12″ XGA TFT LCD
Touch Screen
5 wire analogue resistive (USB interface)

Environment

Temperature
Operating: 0 to 45°C, Storage: -20 to 80°C
Humidity
20 to 90%

Additional information

Core

Intel, Intel Atom

Screen Size

12"

Fanless

Yes

Expansion

CFast, mini PCI-e

Mount Type

Panel Mount, VESA Mount

Operating System (OS)

Windows 7

Operating Temperature

0°C to 45°C

IP Rating

IP65 Front Side (Only)
