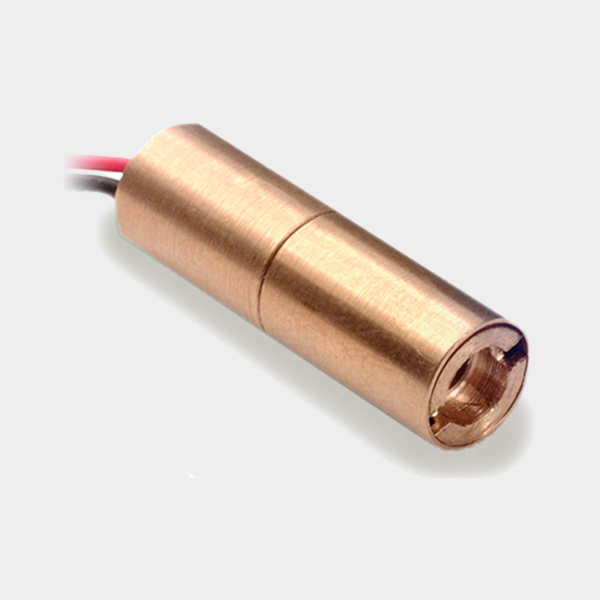

SML-980-1-1-R
Click to enlarge
SML-980-1-1-R SML-980-1-1-R case

980nm, 1mW Infra-Red Laser Module

SML-980-1-1-R

Feature

Infra-Red Laser Module
Wavelength: 980nm (typ.)
Output Power: 1mW
Package: ø10mm (RoHS compliant)
Length: 30mm (*see image)


Applications

Industrial Alignment & Positioning

SKU: 980nm, 1mW Infra-Red Laser Module Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
1
mW
Operating
Voltage
VCC
+5
V
Operating
Temperature
Topr
-10 to +50
°C
Storage
Temperature
Tstg
-40 to +80
°C


Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Operating
Current
Iop
–
–
50
mA
CW
Supply
Voltage
Vcc
–
+5
–
V
–
Beam (*2)
Diameter
2wr
–
–
5
mm
Δl = 10m (*3)
Beam (*2)
Diameter
2wr
–
–
12
mm
Δl = 30m (*3)
Beam (*2)
Divergence
2Θr
–
–
0.1
mrad
–
Peak
Wavelength
λp
–
980
–
nm
–
(*2) X axial direction
(*3) Measurement distance from laser aperture

Additional Information

Colour

InfraRed (780 – 980nm)
