SE-8300
Description

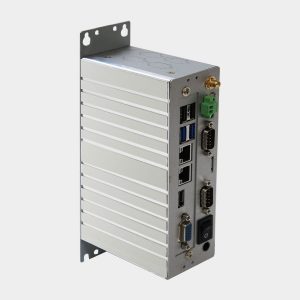

The SE-8300 is a low power, fanless multifunction embedded PC built for industrial control and automotive communication.
The Digital I/O, PoE and four COM ports are among the many I/O ports available on this embedded PC, so control of other systems is simple.
Features
Intel Atom multi-serial comm’s mini industrial PC
Support Atom E3845 (19.1GHz)
Low power
Support up to 4 RS232 COM ports
4in/4out Digital I/O port
3 x USB & 2 x Gigabit LAN
8 x Power-over-Ethernet (PoE) ports
Downloads:
Description
|
CPU Type
|
Intel Atom E3845 (embedded type)
|
|
Chipset
|
n/a
|
|
Memory Support
|
1pcs x DDR3L SO-DIMM (up to 8GB)
|
|
Watchdog Timer
|
1 to 255 seconds
|
|
Power Supply
|
9-36Vdc
|
|
Power Adaptor
|
AC 100V to 240V input, DC 24V output
|
|
Operating System
|
Windows 7 / 8
|
|
Basic System Weight
|
3.5kg
|
|
Dimension
|
270 x 202.5 x 80 mm
|
|
Certificate
|
FCC / CE
|
I/O Ports
|
HDD
|
2.5″ SATA HDD or SSD
|
|
USB
|
3 x USB2.0 + 1 x USB3.0
|
|
LAN
|
2 x Gigabit
|
|
Power-over-Ethernet
|
8 x PoE port
|
|
Serial Ports
|
2 x (RS232) + 2 x (RS232/422/485)
|
|
Display
|
1 x DVI-D and 1 x VGA
|
|
Digital I/O
|
4-in/4-out
|
|
SIM support
|
2 x SIM card slot
|
|
CANBUS
|
1 x CANBUS (supporting isolated use, 5KVrms)
|
Environment
|
Temperature
|
Operating: 0 to 45°C, Storage: -40 to 80°C
(Operating Temp -30 to 60°C with wide-temp mSATA) |
|
Humidity
|
20 to 90%
|
Additional information
| Core | Intel Atom |
|---|---|
| Operating System (OS) | Windows 7, Windows 8 |
| Fanless | Yes |
