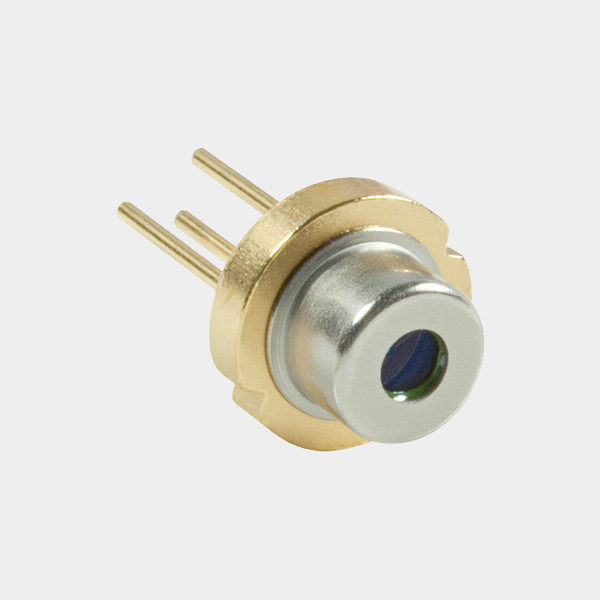

SDL-405-120-502G

Feature

Semicom Blue-Violet Laser Diode
Wavelength: 405nm (typ.)
Output Power: 120mW (CW)

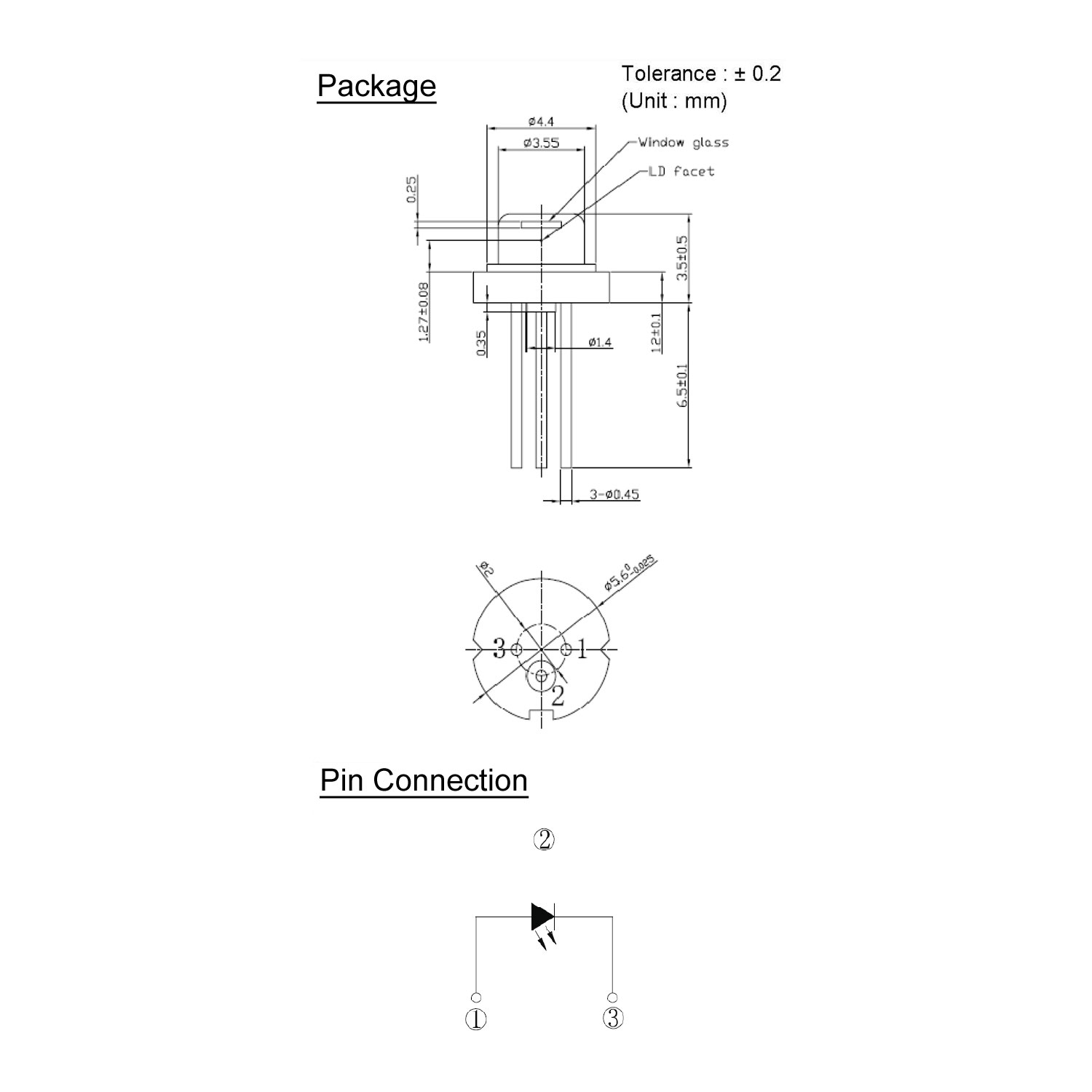

Package: TO-18 (RoHS compliant)

Applications

Industrial Use
Bluray Drive

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-HB
iC-HG
iC-HK
SKU: 405nm, 120mW Blue-Violet Laser Diode (G-Type) Categories: , Tags: , ,

Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power (CW)
Po
120
mW
Optical Output
Power (Pulse)
Po
200
mW
Reverse
Voltage
Vr
+2
V
Operating
Current
IF
130
mA
Operating
Temperature
Topr
-10 to +80
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power (CW)
Po
–
100
120
mW
–
Threshold
Current
Ith
–
35
50
mA
Po=100mW
Operating
Current
Iop
–
100
130
mA
Po=100mW
Differential
Efficiency
η
1.2
1.4
1.9
mW/mA
Po=100mW
Operating
Voltage
Vop
–
4.6
5.5
V
Po=100mW
Peak
Wavelength
λp
400
405
410
nm
Po=120mW
Monitor
Current
Im
–
–
–
mA
–
Beam *4
Θ//
7
9
12
deg
Po=100mW
Divergence
Θ⊥
15
19.5
23
deg
Po=100mW
Beam
ΔΘ//
-2
–
+2
deg
Po=100mW
Angle
ΔΘ⊥
-2.5
–
+2.5
deg
Po=100mW

Additional information

Colour

Blue Violet (405nm)
Operating Current

130
Operating Voltage

4.6 Typ. 55. Max.
PIN Type

G (no PD)
Power Output

120mW
Wavelength

405nm
Package Type

TO-18
Driver IC

iC-HB, iC-HG, iC-HK
