SBM-S350EVF
Description

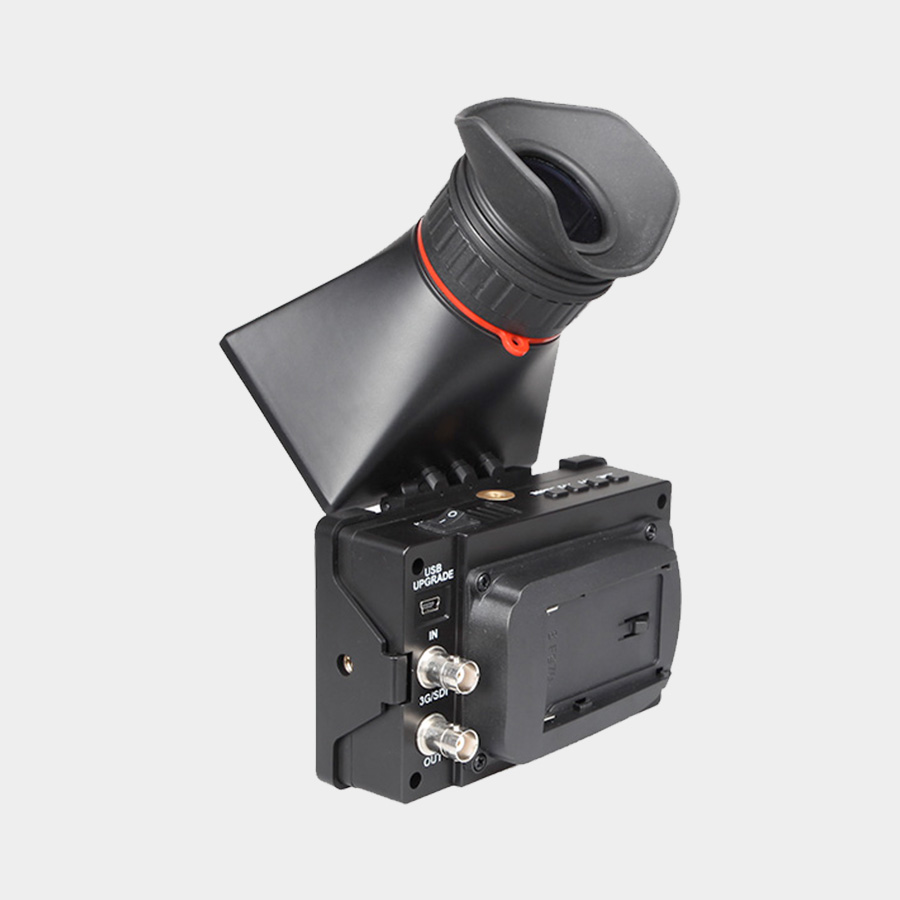

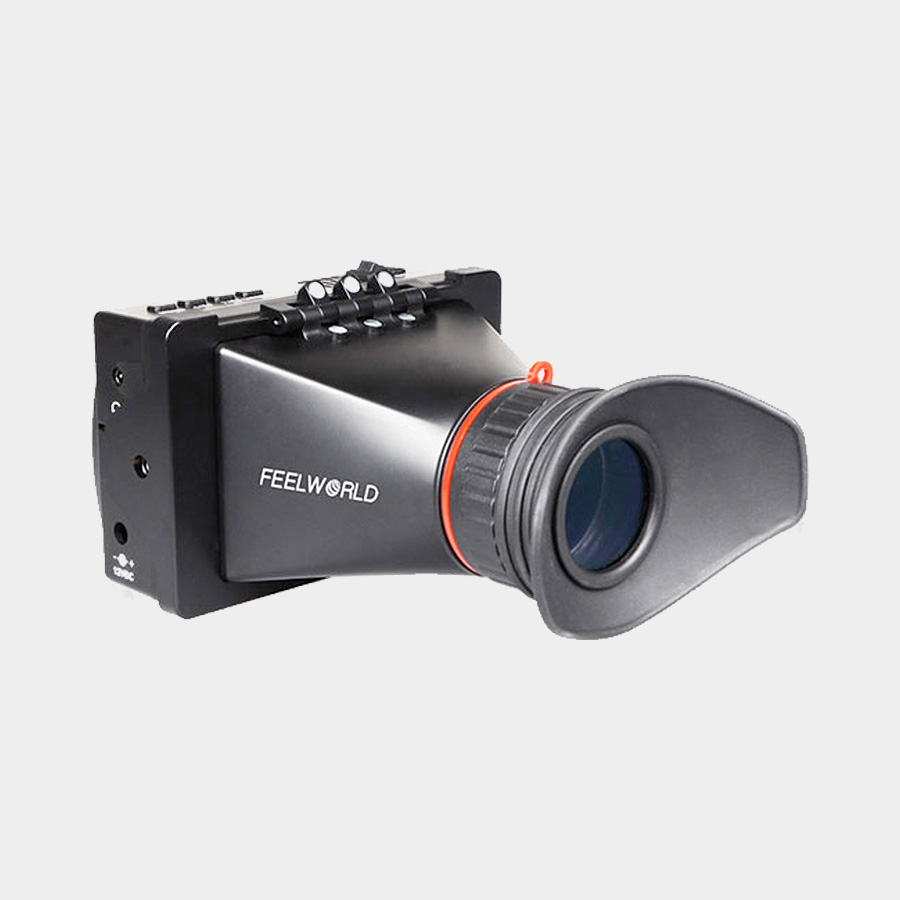

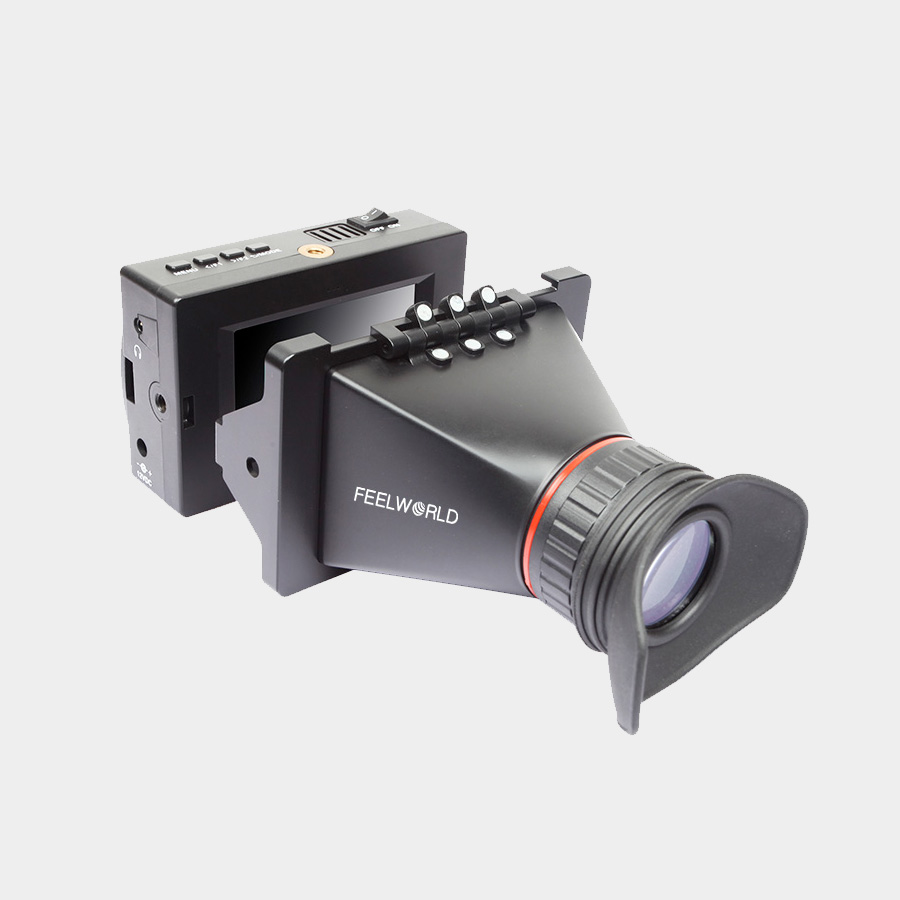

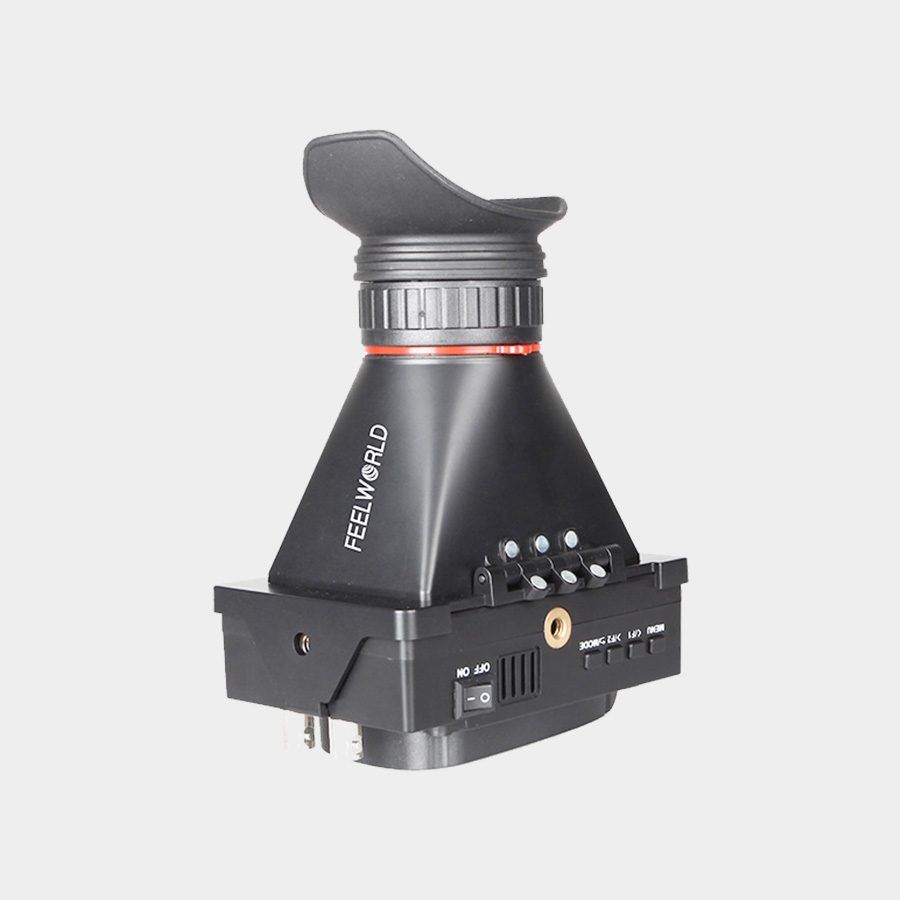

The SBM-S350EVF is a 3.5″ electronic viewfinder designed for on-camera field use in TV and film production. The 3.5″ LCD panel provides 800 x 480 (WVGA) resolution.
With the option of a battery plate and HDMI/SDI inputs, the monitor is easily portable.
Features
3.5″ Electronic Viewfinder Monitor
800 x 480 Resolution
HDMI/SDI input
Threaded camera mount
Optional battery plate
Support DC 6-18V input
Peaking Focus Assist function
Suitable for:
Film and Video Production
BlackMagic Cinema Cameras
Downloads:
TBA
Description
|
Screen Size
|
3.5″, 800 x 480 resolution
|
|
Luminance
|
Typ. 315cd/m2
|
|
Contrast Ratio
|
Typ. 800:1
|
|
Viewing Angle
|
Horizontal: Typ. 80°/80°, Vertical: Typ. 80°/80°
|
|
Mount Type
|
1/4″-20 Thread Socket mount
|
|
Power Input
|
DC 6-18V <6W
|
|
Dimension
|
124.3 x 87.5 x 178.5 mm
|
|
Weight
|
344g
|
|
Chassis
|
Plastic
|

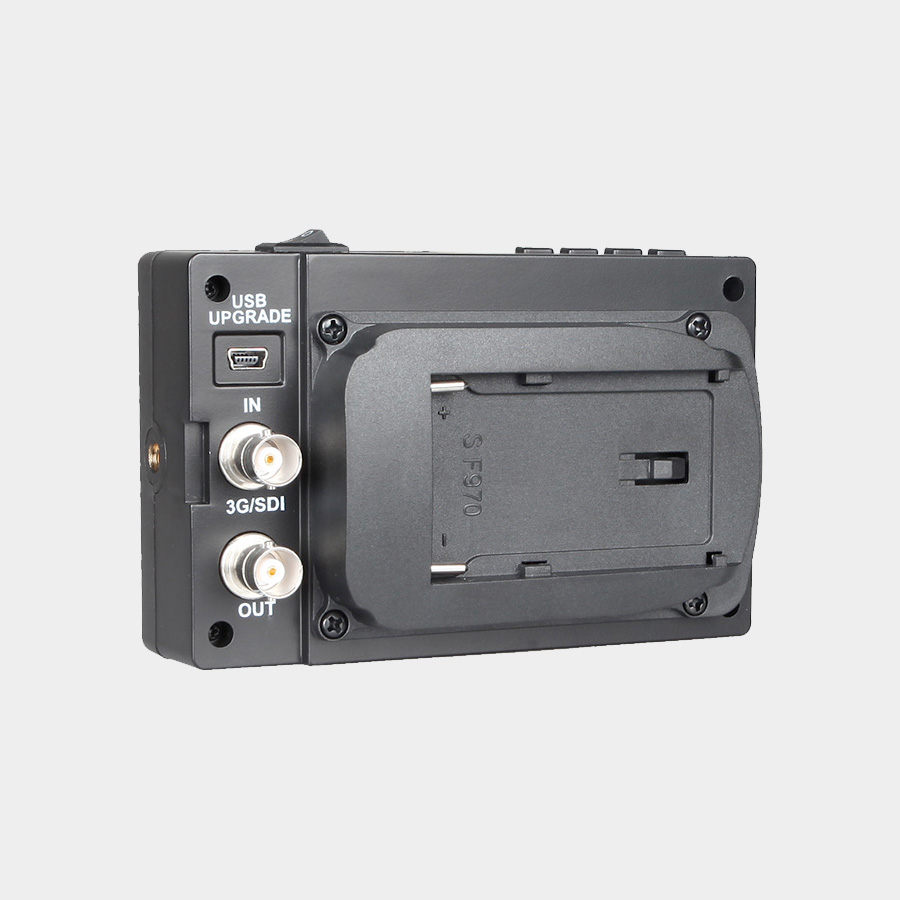

I/O Ports
|
Video Inputs
|
HDMI and SDI
|
|
Video Outputs
|
SDI
|
|
Audio
|
Headphone Output
|
Format Support
|
HDMI
|
480i/p
576i/p 720p(60/59.94/50/30/29/25/24/23.98） 1080i(60/59.94/50） 1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps) |
|
SDI
|
480i
576i 720p(60/59.94/50/30/29/25/24/23.98) 1080i(60/59.94/50)/ 1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps) |
Functions
|
Custom Colour Temp
|
Yes
|
|
Peaking Focus Assist
|
Yes
|
|
Ratio Switch
|
4:3, 16:9
|
|
Pixel to Pixel Map
|
Yes
|
|
Center Marker
|
Yes
|
|
Screen Marker
|
80%, 85%, 90%, 93%, 96%, 2.35:1
|
|
Image Freeze & Flip
|
Yes (U/D,L/R)
|
|
Check Field
|
Yes (Mono/Red/Green/Blue)
|
|
Magnifier
|
Yes
|
Environment
|
Temperature
|
Operating: -20 to 55°C, Storage: -30 to 65°C
|
Additional information
| Screen Size | 3.5" |
|---|---|
| Brightness | 315cd/m² |
| Viewing Angle | 80° / 80° |
| Operating Temperature | -20°C to 55°C |
| Mount Type | Camera Bracket |
| Inputs | HDMI, SD Video |
| Monitor Type | Video Broadcast |
