SBM-E350EVF

Description

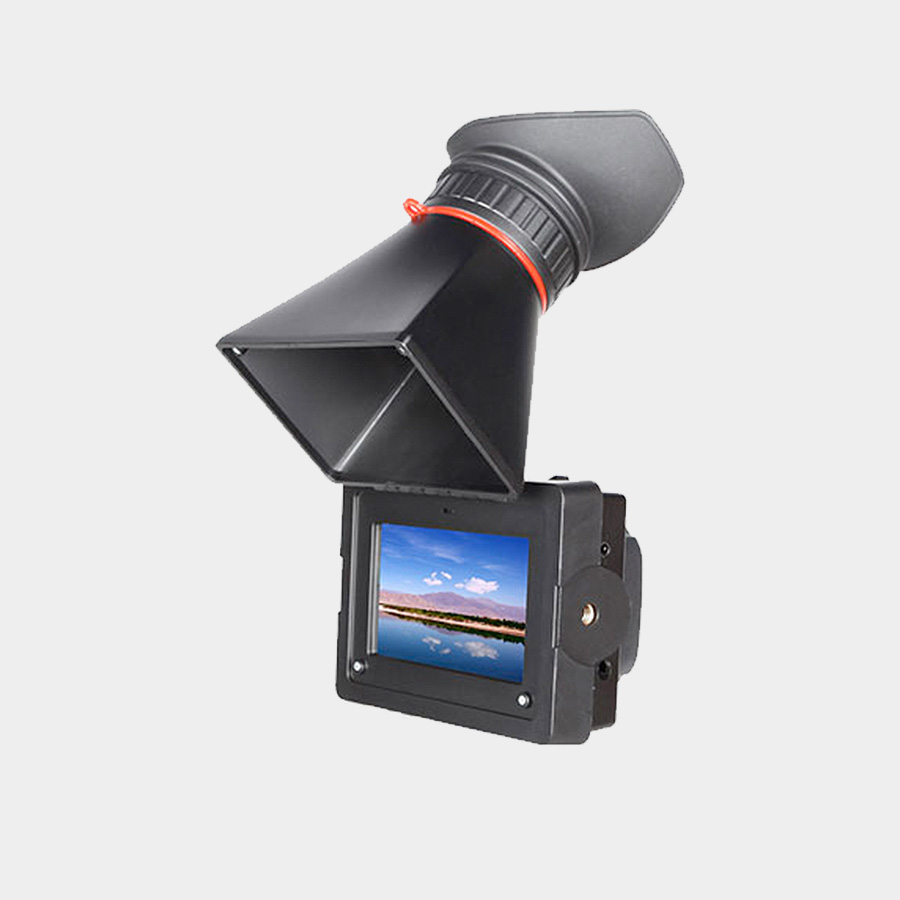

The SBM-E350EVF is a 3.5″ electronic viewfinder designed for on-camera field use in TV and film production. The 3.5″ LCD panel provides 800 x 480 (WVGA) resolution.
With the option of a battery plate and HDMI input, the monitor is easily portable.

Features

3.5″ Electronic Viewfinder Monitor
800 x 480 Resolution
HDMI input
Threaded camera mount

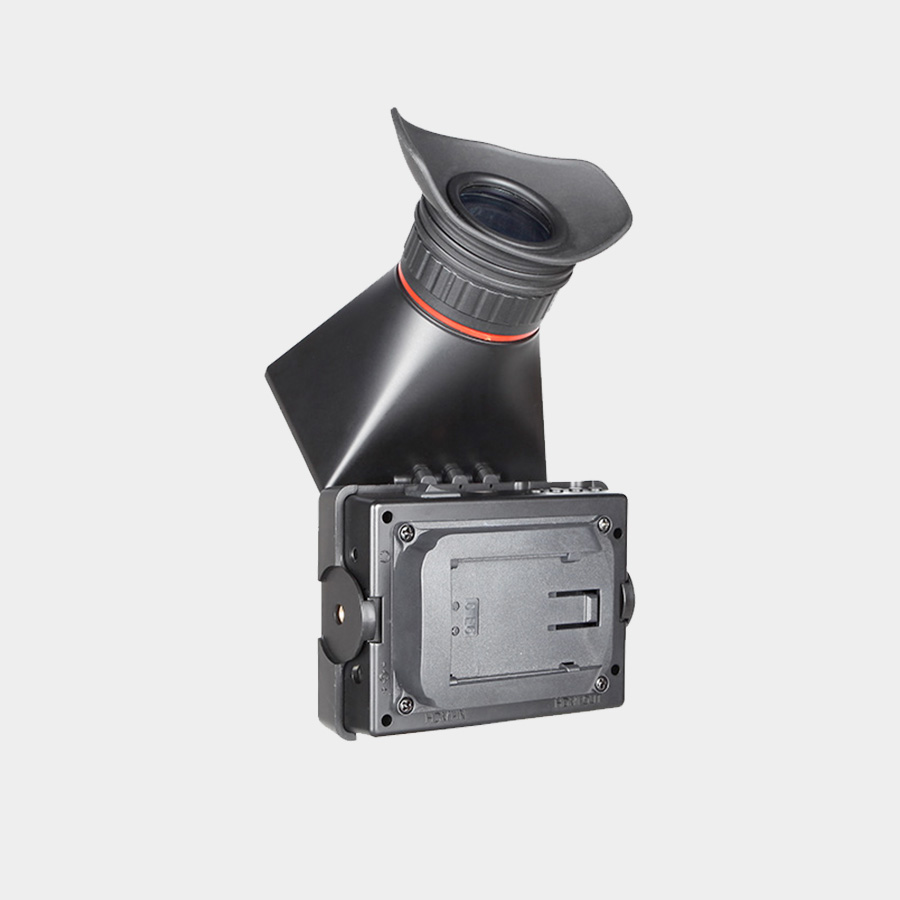

Optional battery plate
Support DC 6-14V input
Peaking Focus Assist function

Suitable for:

Film and Video Production
BlackMagic Cinema Cameras

Downloads:

TBA
SKU: 3.5" HDMI Electronic View Finder Categories: , Tag:

Description

Screen Size
3.5″, 800 x 480 resolution
Luminance
Typ. 315cd/m2
Contrast Ratio
Typ. 800:1
Viewing Angle
Horizontal: Typ. 80°/80°, Vertical: Typ. 80°/80°
Mount Type
1/4″-20 Thread Socket mount
Power Input
DC 6-18V <6W
Dimension
111.2 x 88.3 x 117.8 mm
Weight
400g
Chassis
Plastic

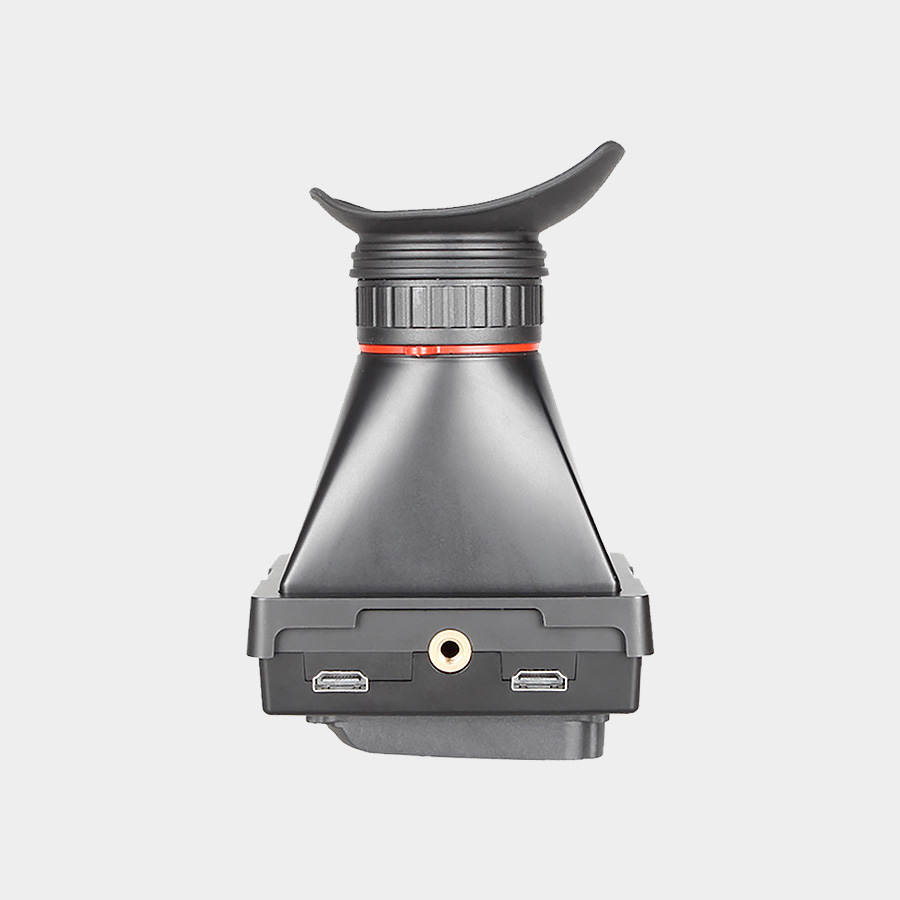

I/O Ports

Video Inputs
HDMI
Video Outputs
HDMI
Audio
n/a

Format Support

HDMI
480i/p
576i/p
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)

Functions

Custom Colour Temp
Yes
Peaking Focus Assist
Yes
Ratio Switch
4:3, 16:9
Pixel to Pixel Mode
Yes
Center Marker
Yes
Screen Marker
80%, 85%, 90%, 93%, 96%, 2.35:1
Image Freeze & Flip
Yes (U/D,L/R)
Check Field
Yes (Mono/Red/Green/Blue)
Magnifier
Yes

Environment

Temperature
Operating: -20 to 55°C, Storage: -30 to 65°C

Additional information

Screen Size

3.5"

Inputs

HDMI

Operating Temperature

-20°C to 55°C

Mount Type

Camera Bracket

Viewing Angle

80° / 80°

Brightness

315cd/m²

Monitor Type

Video Broadcast
