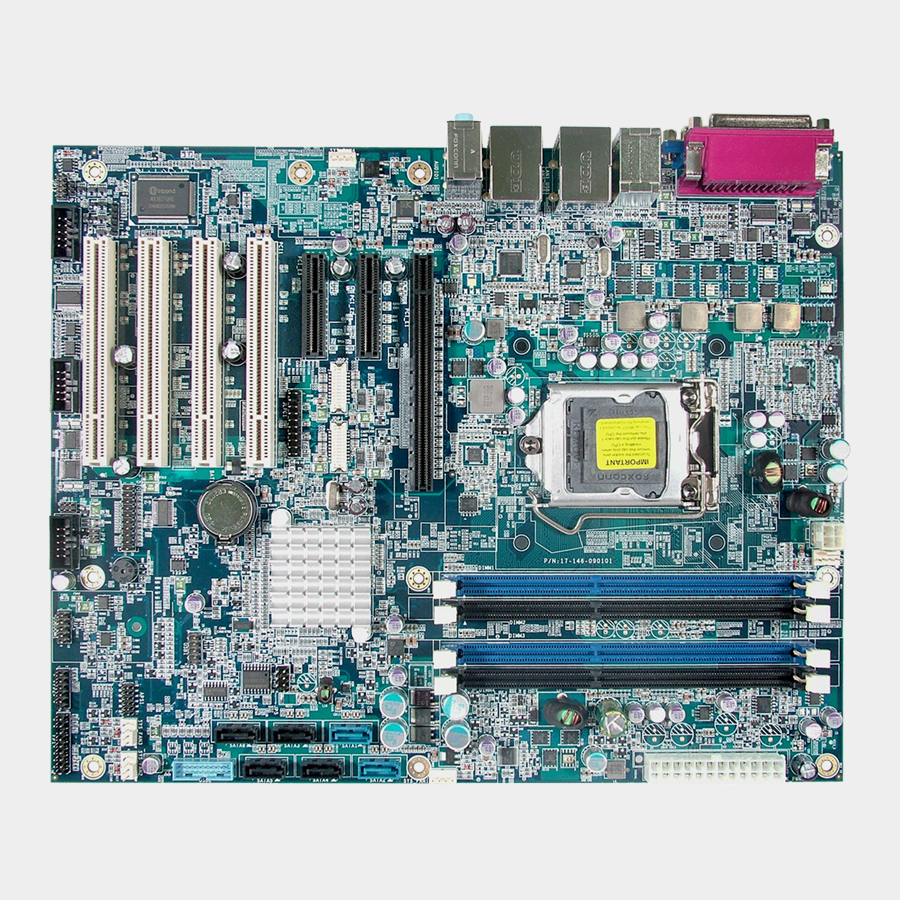

Product Description
|
CPU Type
|
Intel Ivy Bridge Xeon E3 or Core i3
|
|
Chipset
|
Intel PCH C216 + SPI
|
|
Memory Support
|
4pc x DDR-3 DIMM socket (up to 32GB)
|
|
Power Supply
|
Support ATX power
|
|
Power Requirement
|
+5V, +12V, -12V, +3.3V, +5VSB
|
|
Power Consumption
|
TBD
|
|
Watchdog
|
1-255 seconds selectable
|
|
Dimension
|
305 x 244 mm (12in x 9.611in)
|
I/O Ports
|
S-ATA
|
2 x SATA-III (6.0Gb/s), 4 x SATA-II (3.0Gb/s), (Raid 0,1,10,5)
|
|
Floppy
|
n/a
|
|
USB
|
10 x USB 2.0, 2 x USB 3.0
|
|
Serial Ports
|
4 x 9-pin*, COM2 for RS232/422/485
|
|
Parallel Port
|
1 x 25-pin, supporting SPP, EPP and ECP
|
|
Keyboard/Mouse
|
2 x PS/2
|
|
LAN
|
2 x 10/100/1000Mbps Intel chipsets
|
|
Audio
|
Realtek ALC888S HD audio with Line-in, Line-out and MIC
|
|
IrDA
|
1 x SIR
|
|
Expansion
|
1x PCI-E(16x), 2x PCI-E(4x) & 4x PCI slot
|
|
Digital I/O
|
8 in / 8 out
|
|
Display Output
|
1 x VGA + 2 x Display Port
|
Environment
|
Temperature
|
Operating: 0 to 60°C, Storage: -40 to 85°C
|
|
Humidity
|
5 to 90%
|
