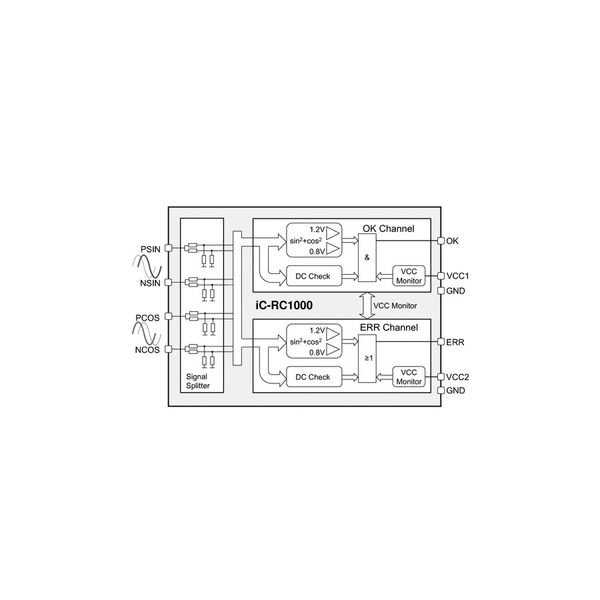

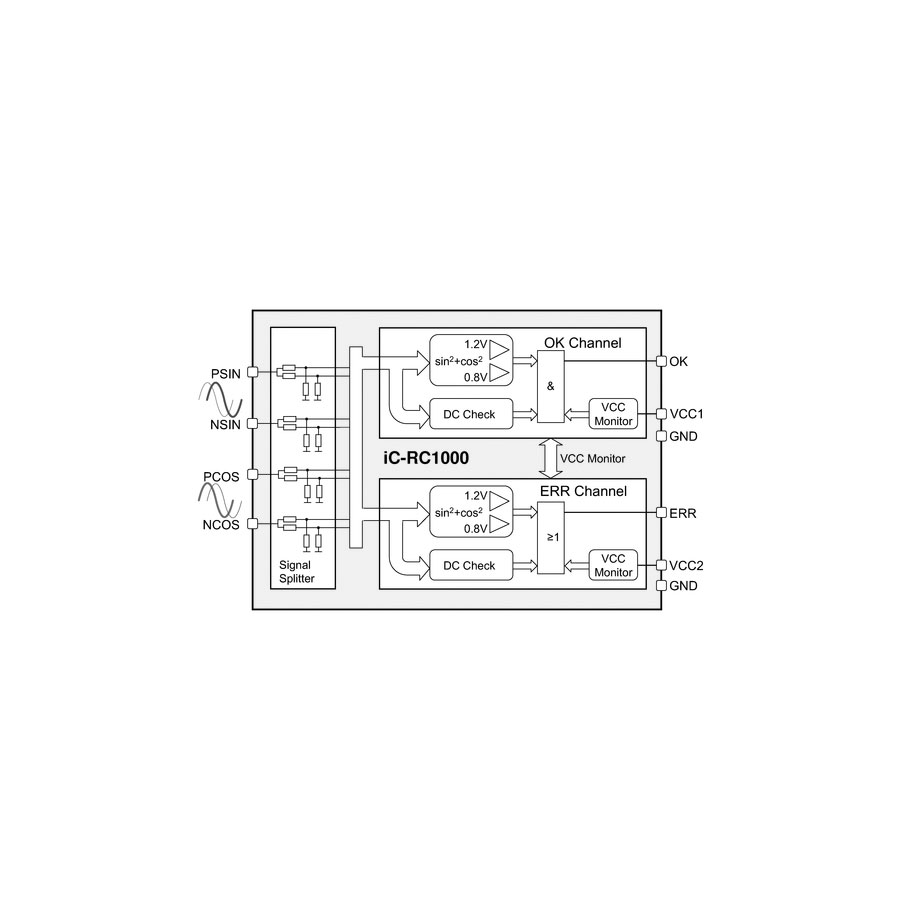

Sine/Cosine Signal Safety Monitor iC for signal monitoring
iC-RC1000
Sine/Cosine Signal Safety Monitor iC for cable fracture detection and signal monitoring.
Features
Sine/cosine encoder signal monitoring for SIL applications.
Suitable for differential encoder signals of 1Vpp (250mV amplitude per line).
Suitable for single-ended signals (500mV amplitude per line).
Monitor for input frequencies from 0 to 500kHz.
Verification of DC common mode range per signal line.
Monitoring of Lissajous curve with min/max limits.
Cable fracture detection.
Source decoupling and overvoltage clamping per pin by external resistors.
Single-failure-proof dual channel concept.
Independent diagnostic outputs: signal OK message and signal error message.
Datasheets
Manufacturer: iCHaus GmbH
Additional Information
| Type | Encoder – Signal Conditioners |
|---|
