iC-PR26xx

EncoderBlue® Reflective Optical Encoders (26mm).

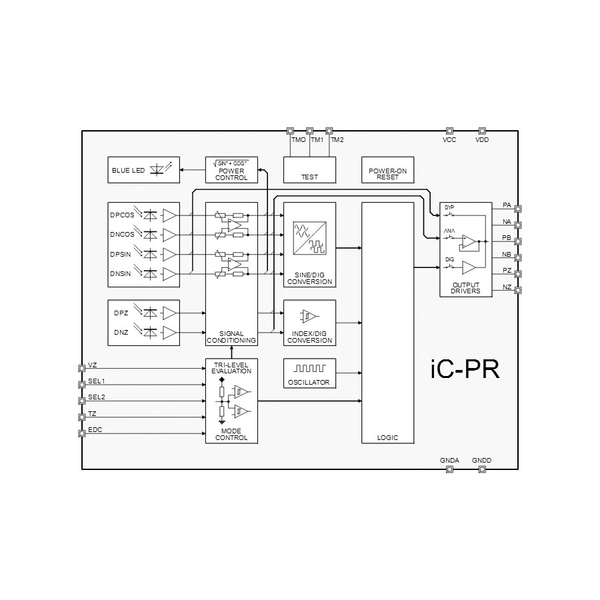

Features

Lensless, reflective opto-encoder iCs, compact, high-resolution, incremental.
Suitable reflective code discs of ∅26mm and linear scales (iC-PR256) available.
Monolithic HD Phased Array with excellent signal matching.
Integrated blue LED with power control, EncoderBlue®.
Low-noise signal amplifiers with high EMI tolerance.
Pin-selectable modes of operation:
Digital A/B/Z (x1, x2, x4, x8, x16 interpolated), analog COS/SIN with analog or digital Z.
Pin-selectable index gating:
Ungated (1 T), B-gated (0.5 T), AB-gated (0.25 T).
Pin-selectable minimal edge distance: 80 ns, 1 μs, 10 μs.
Complementary quadrature outputs PA, NA,PB and NB.
Complementary index outputs PZ and NZ.
Analog signal output for ease of alignment and resolution enhancement by external interpolation.
Operating temperature range of -40 °C to +105 °C.
Compact and lensless optoQFN mold package.
iC-PR2604 Encoder Ø 26 mm / 360 CPR (Code Disk PR04PS available).
iC-PN2656 Encoder Ø 26 mm / 250, 256 PPR (Eval Kit PR10PS/PR05PS available).
Evaluation kits on request.

Datasheets


Manufacturer: iCHaus GmbH

SKU: EncoderBlue® Reflective Optical Encoders (26mm) Categories: , Tags: , , , , ,

Description

Applications

Incremental encoders
Miniature motors and actuators
X-Y and linear stages
Factory automation robots
Consumer robots

Packages

oQFN24-4mm x 4mm
oQFN24 Package

Additional information

Type

Encoder – Optical
