EncoderBlue® Phased Array Nonius Encoder iC-PNH3348
EncoderBlue® Phased Array Nonius Encoder.
Compact, high resolution absolute encoder IC for up to 24 bit singleturn resolution (with nonius interpolation).
For code disc of ∅33mm.
2048 CPR (2x 1023/1024/992 CPR).

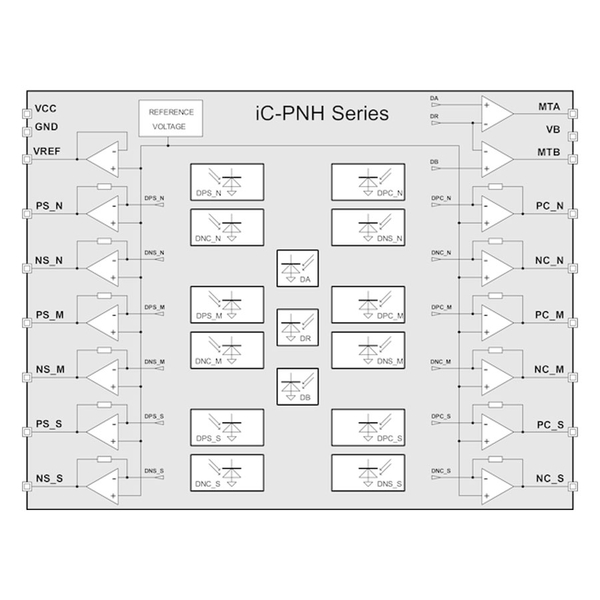

Monolithic 3-channel HD Phased Array with excellent signal matching.
Moderate track pitch for reduced cross talk.
Ultra low dark currents for operation up to high temperature.
Low noise amplifiers with high transimpedance gain.
Enhanced EMI tolerance by low impedance differential, short-circuit-proof, analog sine/cosine outputs.
Embedded sector detection by 2 digital tracks (2-bit Gray code).
Low power consumption from single 4.1 to 5.5V supply.
Operational temperature range of -40°C to +110°C.
Space saving optoQFN package (RoHS compliant).
Evaluation kit with LED and code disc available for sampling.
Manufacturer: iCHaus GmbH
