∅26mm, 128 CPR Phased Array Nonius Encoder


∅26.0mm, 128 CPR Phased Array Nonius Encoder.


Compact, high resolution absolute encoder ICs for up to 24 bit singleturn resolution (with nonius interpolation).
For code discs of ∅26 mm.
128 CPR (2x 64/63/56 CPR).
11.0mm optical radius.

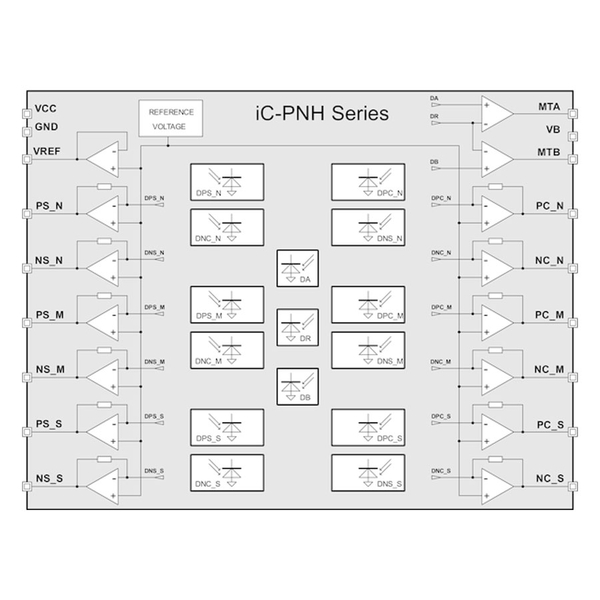

Monolithic 3-channel HD Phased Array with excellent signal matching.
Moderate track pitch for reduced cross talk.
Ultra low dark currents for operation up to high temperature.
Low noise amplifiers with high transimpedance gain.
Enhanced EMI tolerance by low impedance differential, short-circuit-proof, analog sine/cosine outputs.
Embedded sector detection by 2 digital tracks (2-bit Gray code).
Low power consumption from single 4.1 to 5.5V supply.
Operational temperature range of -40°C to +125°C.
Space saving optoQFN package (RoHS compliant).
Evaluation kits with LED and code disc available for sampling.


Manufacturer: iCHaus GmbH
SKU: ∅26mm, 128 CPR Phased Array Nonius Encoder Categories: , Tags: ,

Product Description


Absolute position encoders
AC servo feedback


5mm x 5mm
oQFN32 Package

Additional Information


Encoder – Optical
