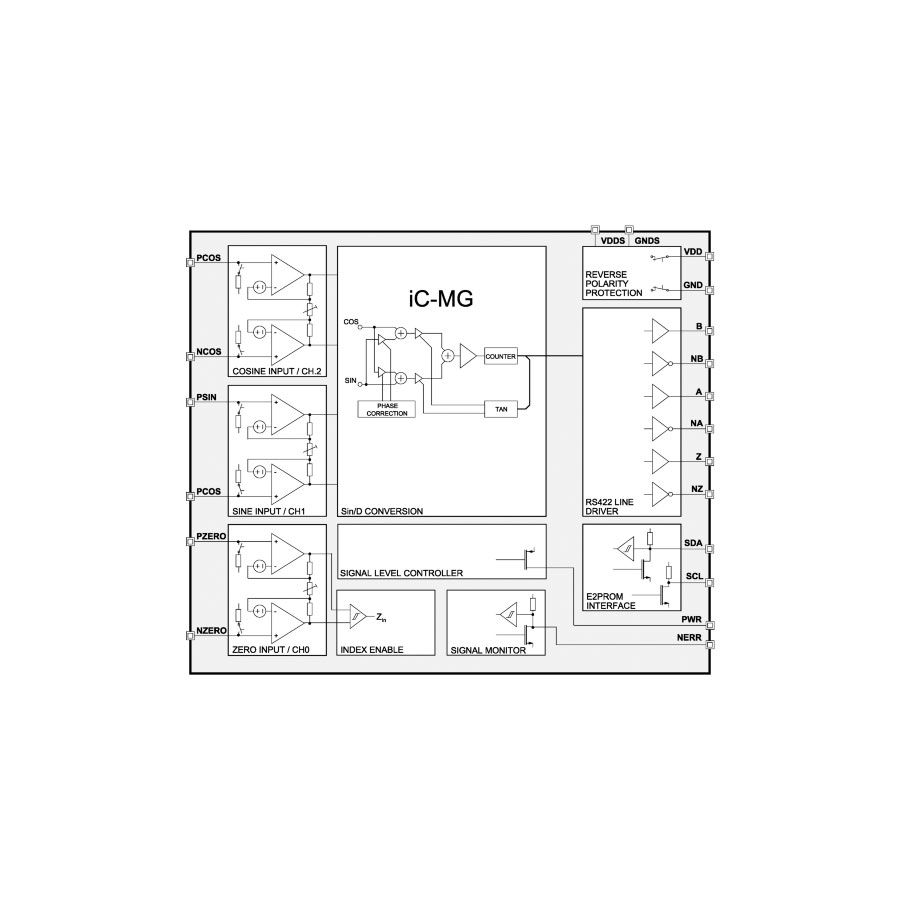

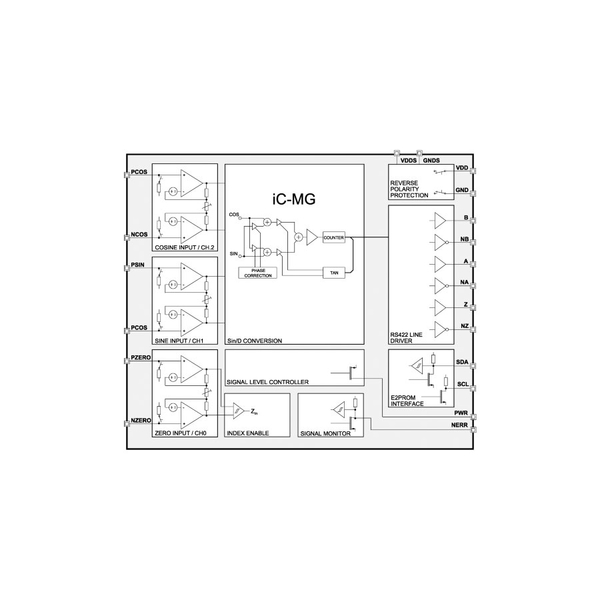

8-Bit Sin/Cos Interpolation IC with RS422 driver

iC-MG

8-Bit Sin/Cos Interpolation IC with RS422 driver.

Features

Real-time tracking, no-missing-code interpolation.
Selectable interpolation factors: x1, x2, x5, x10, x20, x25, x50.
100kHz input frequency at highest resolution.
Differential and single-ended PGA in.
Variable input resistance enables current/voltage conversion.
Controlled 50mA current source as LED or MR bridge supply.
Signal conditioning for offset, amplitude and phase.
Adjustable index length.
Encoder quadrature output via short-circuit-proof 20mA push-pull line drivers (RS422).
Fail-safe counting assured by a guaranteed minimum phase distance.
Index signal generation at selectable positions.
Loss-of-signal indicator.
Setup via serial EEPROM interface.
Sub-system power switch offers reverse polarity protection for the overall system.

Datasheets


Manufacturer: iCHaus GmbH

SKU: 8-Bit Sin/Cos Interpolation IC with RS422 driver Category: Tags: ,

Product Description

Applications

Optical and magnetic position sensors
Rotary encoders
Linear encoders

Packages

TSSOP20
TSSOP20 Package
