Product Description
Applications
IO-Link slaves
IO sensor interface
Digital sensors
Light barriers
Proximity switches
Packages
QFN24

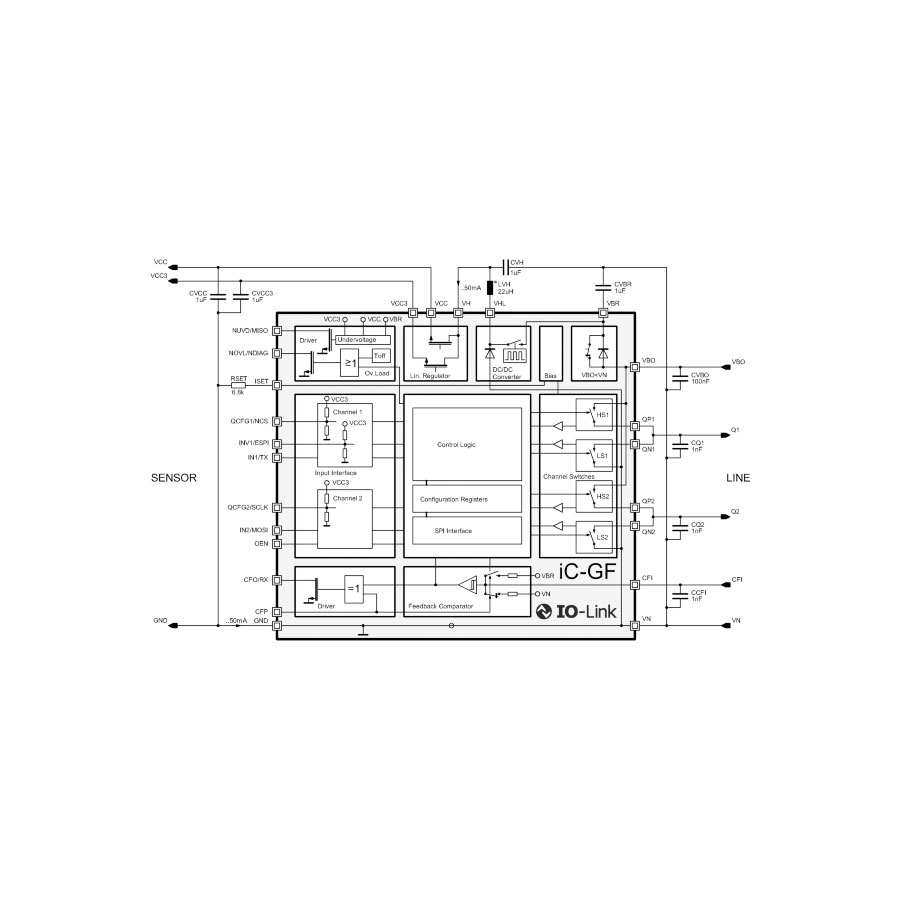

Click to enlarge
IO-Link Transceiver for IO-Link slaves
iC-GF
IO-Link Transceiver for IO-Link slaves.
Features
IO-Link compliant slave transceiver.
Dual channel switches, configurable for high-side, low-side and push-pull operation with tristate function.
Configuration via pins or SPI interface.
Switches are current limited.
Switches, iC supply and feedback channel are protected against reverse polarity.
Output current of up to 150mA per channel.
Parallel connection of both channels possible.
The channels can be inverted for antivalent output.
Sensor communication request function (IO-Link wake-up).
Wide supply voltage range of 9 to 30V.
Sensor parametrisation via a feedback channel (up to 30V).
Switching converters and linear regulators for 3.3 ⁄ 5V voltage generation.
Error detection with hysteresis with excess temperature, overload and undervoltage.
Driver shut-down on all errors.
Error signalling at two open-collector outputs.
Datasheet
Manufacturer: iCHaus GmbH
Additional Information
| Type | I/O Circuits |
|---|
