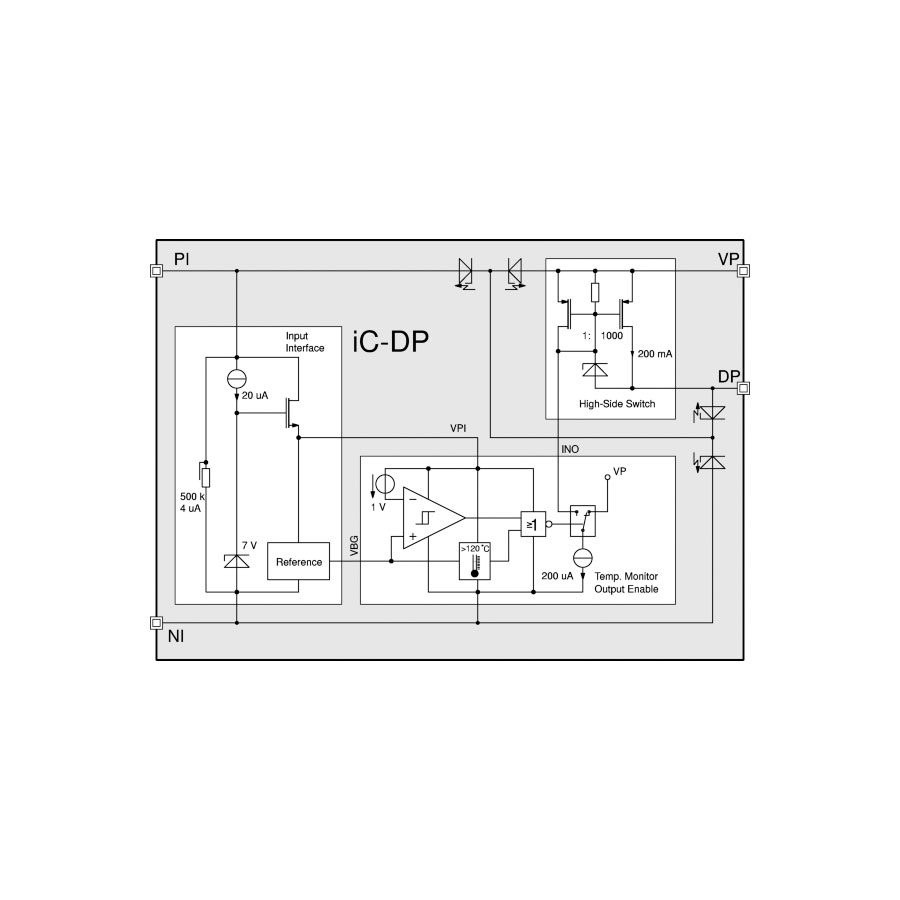

iC-DP

Highside switch for industrial applications, such as relays, inductive proximity sensors and light barriers.

Features

36V highside switch/level shifter.
P-channel output driver without charge pump for short activation time.
Decoupling of input and output voltages (SOT23-6L) permits control by 5V logic.
200 mA of output current.
Short-circuit protected.
Output with an active freewheeling circuit.
On-chip overtemperature protection with hysteresis.
4 to 36 V input voltage range.
Input with hysteresis.
3-pin configuration possible.
Wide temperature range of -40 to 120°C.
Option: chip scale package (CSP).

Datasheets


Manufacturer: iCHaus GmbH

SKU: Highside switch for industrial applications Category: Tags: ,

Description

Applications

Highside switch for industrial applications, such as relays, inductive proximity sensors and light barriers.

Packages

SOT23-6L
SOT23-6L Package

Additional information

Type

Output Stages
