Product Description
Applications
24V control engineering
Line driver in a PLC environment
Linear and rotary encoders
MR sensor systems
Packages
QFN28
Click to enlarge

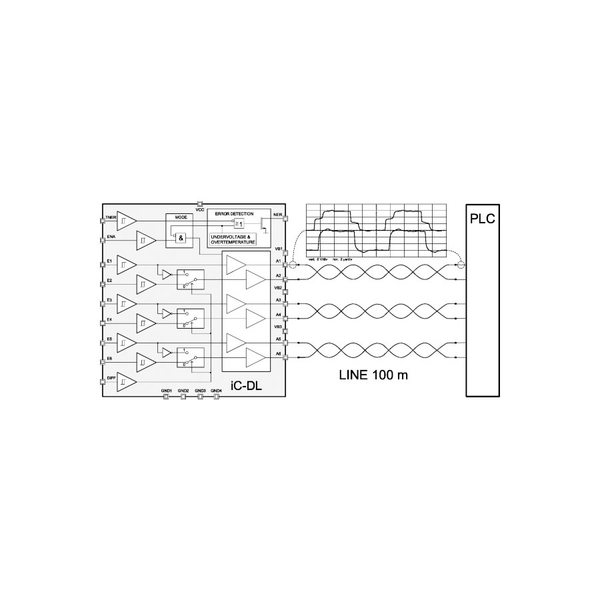

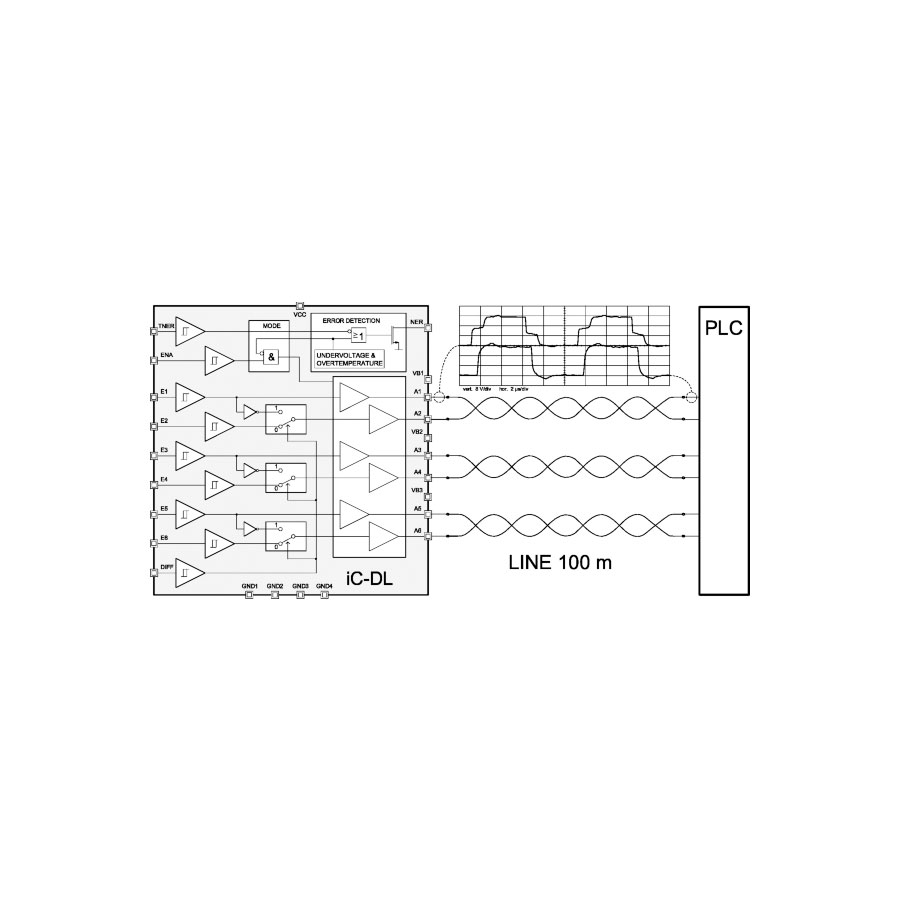

3-Channel Differential Line Driver with integrated impedance adaptation
iC-DL
3-Channel Differential Line Driver with integrated impedance adaptation.
Features
6 current-limited and short-circuit-proof push-pull drivers.
Differential 3-channel operation.
Power supply range from 4 to 40V.
Integrated 30 to 140Ω line adaptation.
Low output saturation voltage.
Compatible with TIA ⁄ EIA standard RS-422.
Thermal shutdown with hysteresis.
Tristate switching enables use in buses.
Short switching times and high slew rates.
Schmitt trigger inputs compatible with TTL and CMOS levels, voltage-proof up to 40V.
Open-collector error output with thermal shutdown or undervoltage.
Datasheets
Manufacturer: iCHaus GmbH
Additional Information
| Type | 24V Line Drivers |
|---|
