EFL-3702H
Click to enlarge

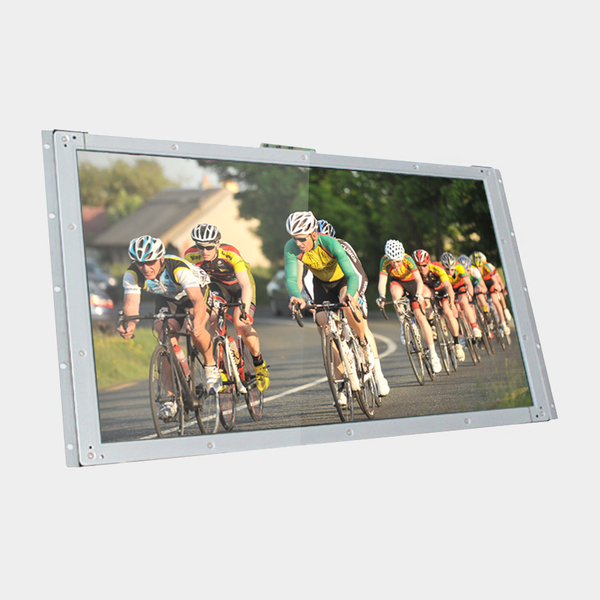

37" FullHD Open Frame LCD Monitor with Optional Touch

EFL-3702H

Description

The EFL-3702H is a 37″ widescreen open frame industrial monitor designed for gaming and industrial control, as well as digital signage.
The 37″ LCD panel provides 1920 x 1080 (FullHD) resolution. With the option of touch screen and various input types, the monitor can be used in any situation.

Features

37″ Open Frame Monitor
Native Resolution 1920×1080 @60Hz
DVI and VGA input
Optional Composite/S-Video input
Optional Touch Screen
Optional Audio Amp
LED backlight
Open Frame Type

Fixed Order Quantities:

1-2pcs sample, 25pcs, 50pcs, 100pcs and any multiple of 50pcs above this.

Manufacturer:

Effinet Systems Inc.
SKU: 37" FullHD Open Frame LCD Monitor with Optional Touch Category: Tags: , , , , , ,

Product Description

Screen Size
37″, 1920 x 1080 resolution
Display Colours
16.7M
Pixel Pitch
0.42675 x 0.42675 mm
Luminance
Typ. 360cd/m2
Backlight Lifetime
Typ. 30,000 hours
Viewing Angle
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
Backlight Type
Edge LED
Contrast Ratio
Typ. 3600:1
Mount Type
Open frame mount and VESA arm mount
Power Input
AC 90V-264V
Dimension
TBD

I/O Ports

Digital
DVI-I
Analogue
15-pin VGA
Optional Inputs
S-Video and Composite video

Optional Touch Screen

Touch Sensor Type
Resistive, Capacitive, IR, SAW
Touch Controller Type
Serial, USB

Environment

Temperature
Operating: 0 to 50°C

Additional Information

Screen Size

37″
Monitor Type

Monitor – 25″+
Inputs

DVI, VGA
Mount Type

Open Frame, VESA Arm Mount
Touch Type

Capacitive, IR, Resistive, SAW
Brightness

360cd/m²
