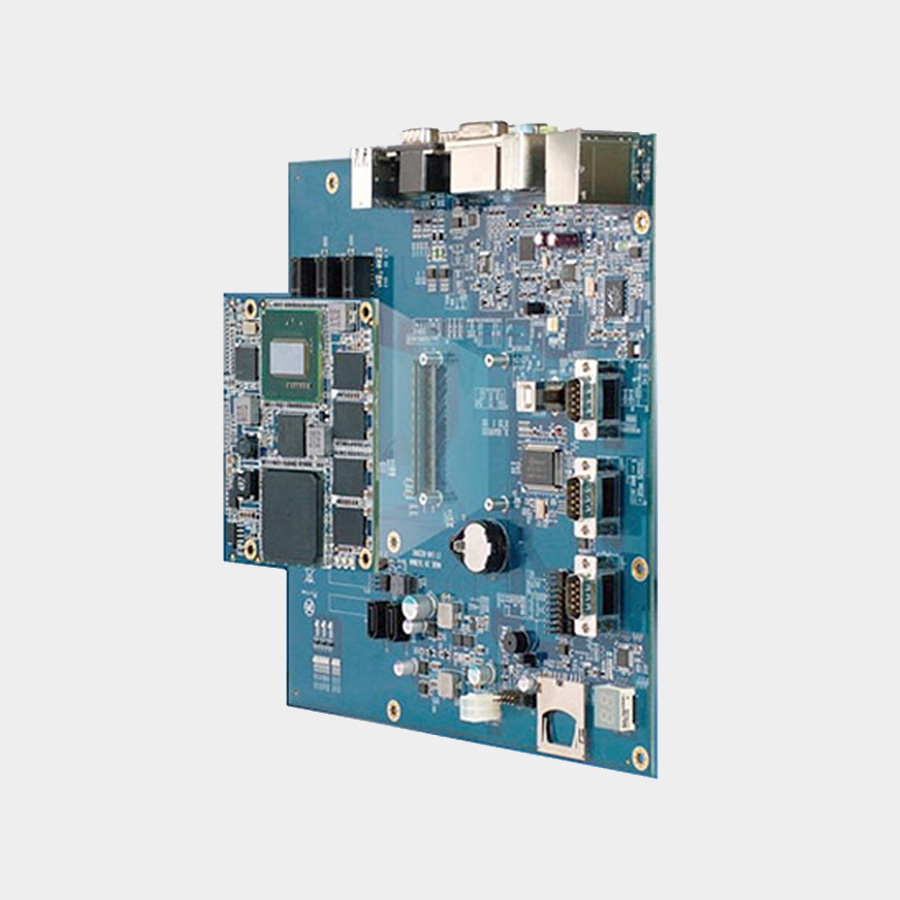

Product Description
|
CPU Type
|
As per CoreExpress board
|
|
Chipset
|
As per CoreExpress board
|
|
Memory Support
|
As per CoreExpress board
|
|
Power Supply
|
Support AT/ATX power
|
|
Power Requirement
|
+5V, +12V
|
|
Dimension
|
244 x 244 mm (9.611in x 9.611in)
|
I/O Ports
|
SATA
|
2 x S-ATA-II
|
|
IDE
|
n/a
|
|
USB
|
7 x USB
|
|
Serial Ports
|
4 x 9-pin
|
|
CANBUS
|
1 x CANBUS port
|
|
Keyboard/Mouse
|
n/a
|
|
LAN
|
1 x RJ-45 from Marvell chip
|
|
Audio
|
Realtek ALC888S HD audio with Line-in, Line-out and MIC
|
|
SD Card
|
1 x SD slot
|
|
Expansion
|
3 x PCI-e x1 (using PCI-e x16 slots)
|
|
Digital I/O
|
n/a
|
|
LVDS Output
|
18-bit with transform support to DVI-D
|
Environment
|
Temperature
|
Operating: 0 to 60°C, Storage: -40 to 85°C
|
|
Humidity
|
10 to 90%
|
