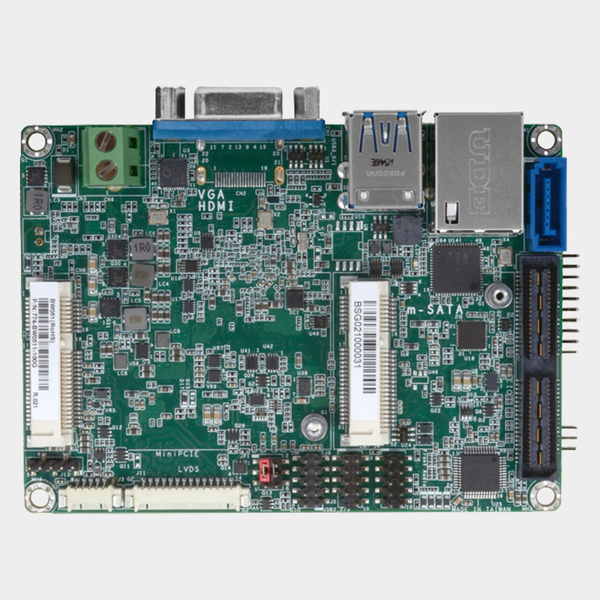

Product Description
|
CPU Type
|
Intel Pentium®/Celeron® Processor N3000 Family, BGA 1170
|
|
Chipset
|
Intel Braswell SoC
|
|
Memory Support
|
1pc x DDR-3 SO-DIMM socket (up to 8GB)
|
|
Power Supply
|
DC 12V only
|
|
Power Requirement
|
+12V (2-pin terminal block)
|
|
Power Consumption
|
Typical: N3710:12V @ 0.47A (5.64Watt), Max.: N3710:12V @ 1.0864A (13.037Watt)
|
|
Watchdog
|
1-255 seconds selectable
|
|
Dimension
|
100 x 72 mm
|

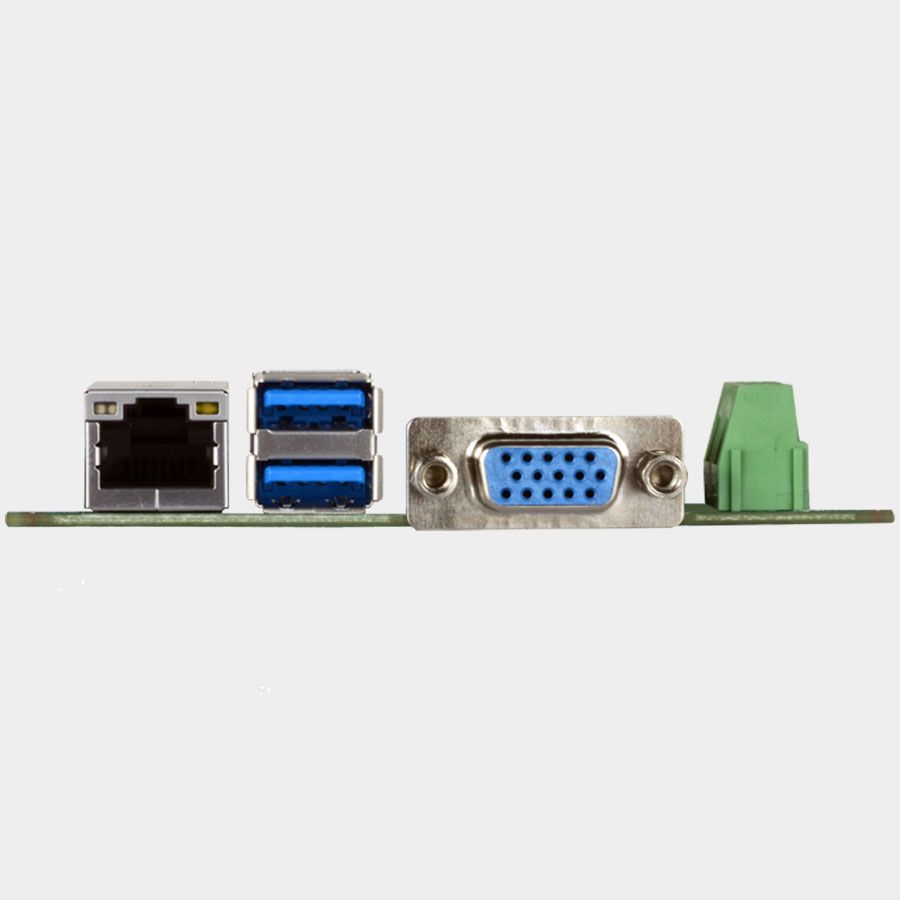

I/O Ports
|
S-ATA
|
1 x SATA-III (6.0Gbps)
|
|
TPM
|
Available Upon Request
|
|
USB
|
2x USB3.0 & 2x USB2.0 (board header)
|
|
Serial Ports
|
2 x board header*, 1xRS232, 1xRS422/485 *see datasheet
|
|
LAN
|
1 x 10/100/1000Mbps Intel chipset
|
|
Audio
|
Realtek ALC888S HD audio with Line-out and MIC
|
|
Video Output
|
1 x VGA (HDMI option), 1 x LVDS
|
|
Expansion
|
1x half-size mSATA, & 1x mini-PCIe
|
|
Others
|
1 x 8-bit DIO, 1 x SMBus
|
Environment
|
Temperature
|
Operating: 0 to 60°C, Storage: -40 to 85°C
|
|
Humidity
|
5 to 90%
|
