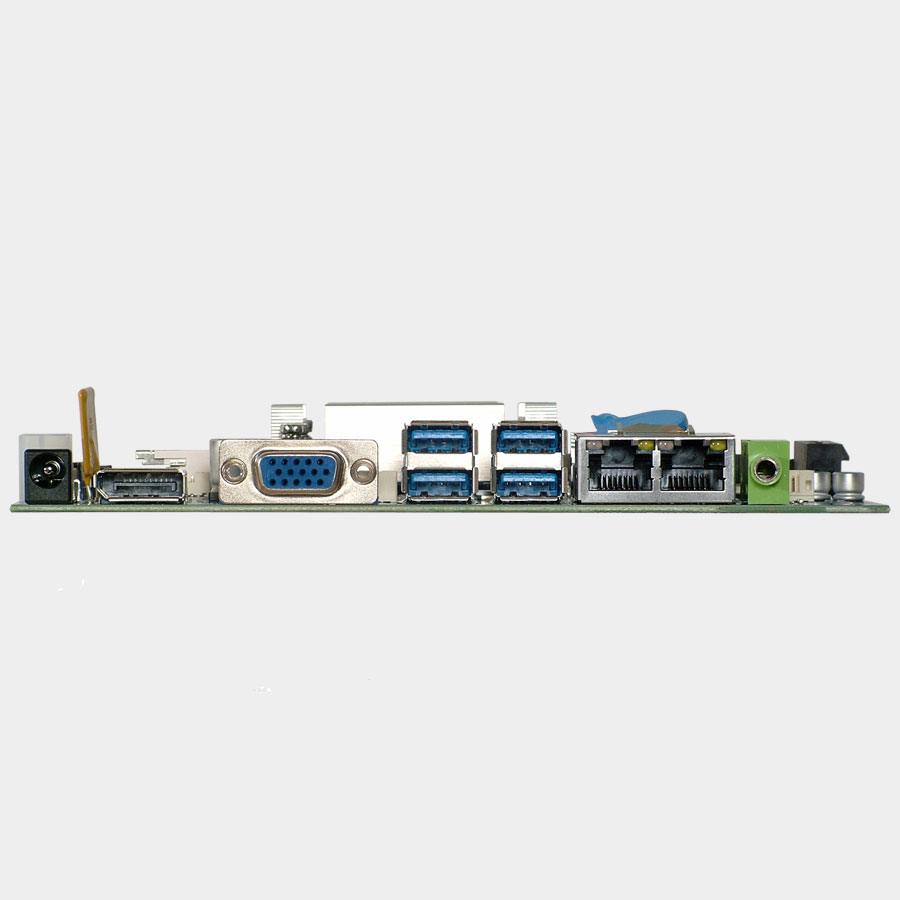

BM-0972 BM0972_ports

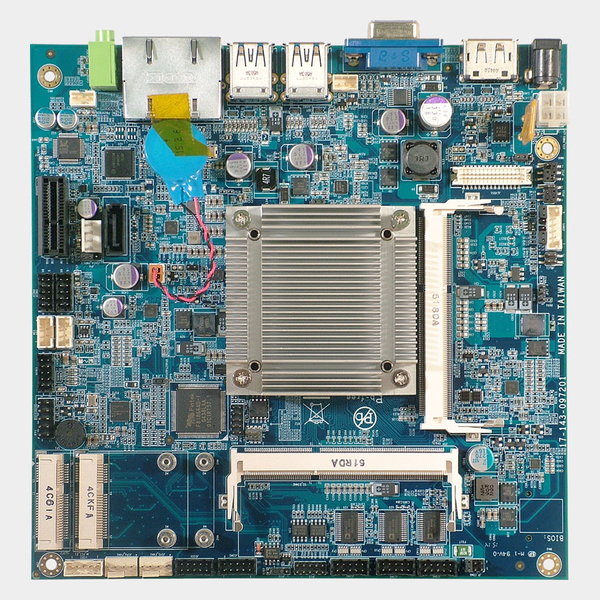

Intel Braswell mini-ITX Motherboard

BM-0972

Description

The BM-0972 is a low power mini-ITX industrial motherboard built for embedded-processing on the Intel Braswell series CPU.
The seven USB ports and six COM ports are among the many I/O ports available on this single board computer, and expansion is possible with PCI-e and mini-PCI-e slots.

Features

Braswell mini-ITX Industrial Motherboard
Support Intel Braswell Pentium or Celeron CPU
Support up to 8 GB DDR3 RAM
Support dual Gigabit LAN
Supports SATA-III
Expansion for 1x PCI-E(1x) & 1x Mini PCIe

Downloads:

SKU: Intel Braswell mini-ITX Motherboard Categories: , Tags: , , ,

Product Description

CPU Type
Intel Intel® Pentium® and Celeron® SoC (Braswell)
Chipset
Intel Braswell SoC
Memory Support
2pc x DDR-3 SO-DIMM socket (up to 8GB) *see datasheet
Power Supply
DC 12V only (rear IO DC-jack and internal 4pin connector)
Power Requirement
+12V
Power Consumption
+12V: 1.59A (CPU: N3700)
Watchdog
1-255 seconds selectable with reset / NMI I2C, SMBus, DIO, HW monitor, fan control
Dimension
170 x 170 mm

I/O Ports

S-ATA
1 x SATA-III (6.0Gb/s), 1 x m-SATA
SIM Holder
1 x SIM holder (N3700/N3710 model)
USB
4 x USB3.0 (rear IO), 3 x USB2.0 (internal) (N3060 supports only 4 USB3.0 on rear IO)
Serial Ports
6 x 9-pin*, COM2 for RS422/RS485 (N3060 supports only 2 COM: COM1 and COM2)
Parallel Port
n/a
Keyboard/Mouse
2 x PS/2
LAN
2 x 10/100/1000Mbps Intel chipsets
Audio
Realtek ALC888S HD audio with Line-in, Line-out and MIC
Video Output
1 x VGA, 1 x DP, 1 x LVDS (N3060 supports 1 x display port, 1 x LVDS)
Expansion
1x PCI-e(x1), & 1x mini-PCIe (half-size)
Digital I/O
4x in / 4x out

Environment

Temperature
Operating: 0 to 60°C, Storage: -40 to 85°C
Humidity
5 to 90%

Additional Information

Board Size

Mini-ITX

Core

Intel, Intel Celeron, Intel Pentium

Fanless

Yes

Expansion

mini PCI-e, PCI-e

Operating Temperature

0°C to 60° C
