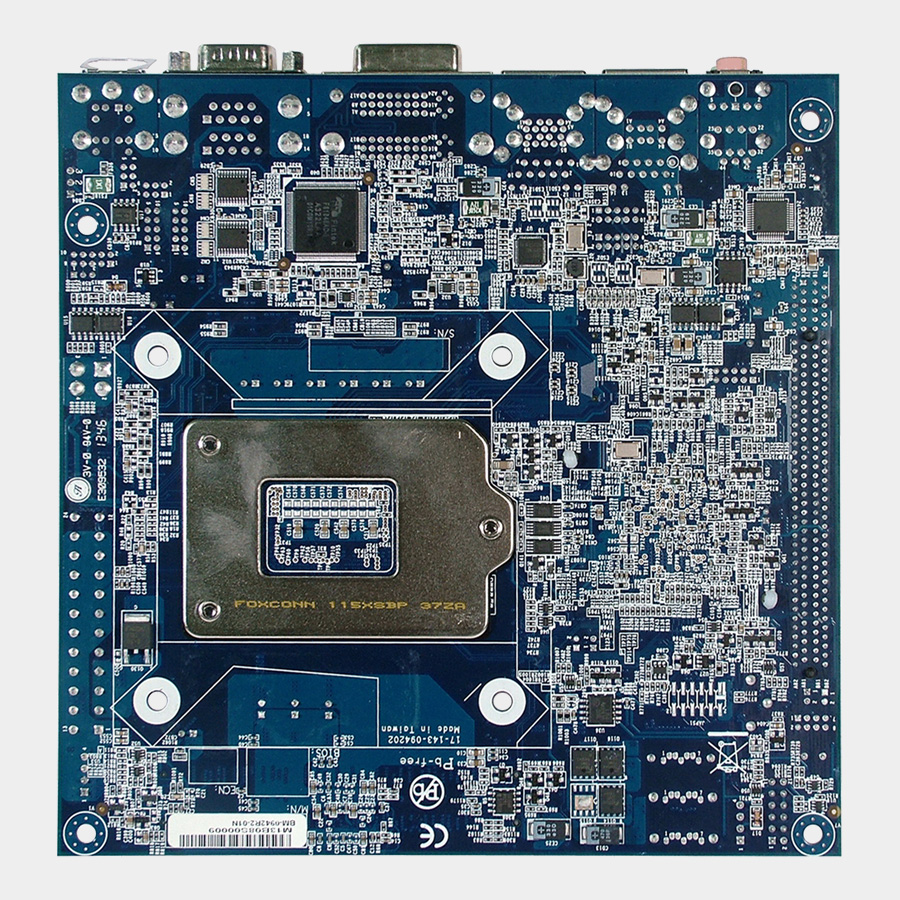

BM-0942 bm-0942-back bm-0942-side

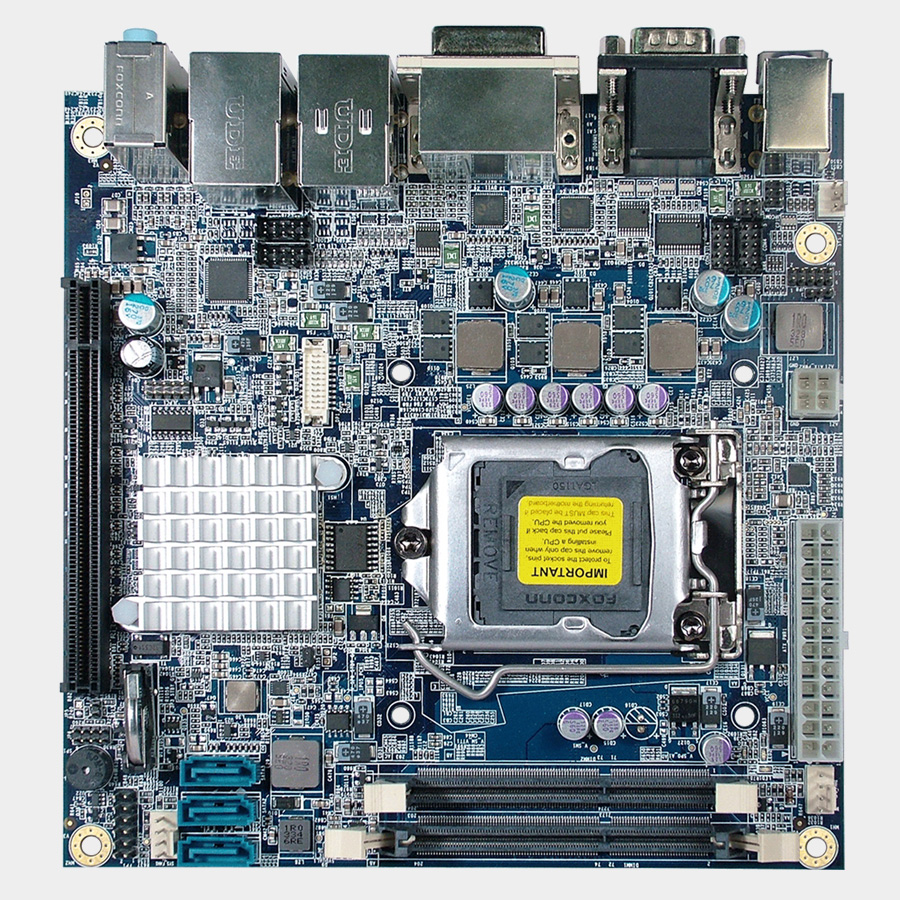

Intel Core-i (4th gen.) mini-ITX Motherboard

BM-0942

Description

The BM-0942 is a high performance mini-ITX industrial motherboard built for multi-processing on the Intel 4th gen. Core i3, i5 or i7 CPU.
The eight USB ports (2 x USB 3.0) and four COM ports are among the many I/O ports available on this single board computer, and expansion is possible with a PCI-e x16 slot.

Features

LGA1150 mini-ITX Industrial Motherboard
Support Intel 4th gen. Core i3, i5 and i7 CPU
Support up to 16 GB DDR3 RAM
Support dual Gigabit LAN
Supports SATA-III
Expansion for 1x PCI-E(16x)

Downloads:

SKU: Intel Core-i (4th gen.) mini-ITX Motherboard Category: Tags: , ,

Product Description

CPU Type
Intel 4th gen. Core i3, i5 and i7 or Pentium (socket 1150)
Chipset
Intel PCH Q87 or H81 + SPI
Memory Support
2pc x DDR-3 SO-DIMM socket (up to 16GB)
Power Supply
Support ATX power
Power Requirement
+5V, +12V, +3.3V, +5VSB
Power Consumption
+5V:1.3A; +12V:2.35A; +3.3V:0.6A; +5VSB:0.14A (CPU: i7 4770S 3.1GHz)
Watchdog
1-255 seconds selectable
Dimension
170 x 170 mm (6.69in x 6.69in)

I/O Ports

S-ATA
2 x SATA-III (6.0Gb/s) + 1 x SATA-II (3.0Gb/s) (RAID 0,1,5)
Floppy
n/a
USB
2 x USB 3.0, 6 x USB 2.0
Serial Ports
4 x 9-pin*, COM 2 for RS-232/422/485
Parallel Port
n/a
Keyboard/Mouse
1 x PS/2
LAN
2 x 10/100/1000Mbps Intel chipsets
Audio
Realtek ALC888S HD audio with Line-in, Line-out and MIC
Video Output
DVI-D + DVI-I + DP (Discrete GFX card required if CPU not include GFX chip)
Expansion
1 x PCI-E(16x)
Digital I/O
n/a
LVDS Output
n/a

Environment

Temperature
Operating: 0 to 60°C, Storage: -40 to 80°C
Humidity
5 to 90%

Additional Information

Board Size

Mini-ITX

Core

Intel, Intel Core i3, Intel Core i5, Intel Core i7

Expansion

PCI-e

Operating Temperature

0°C to 60° C
