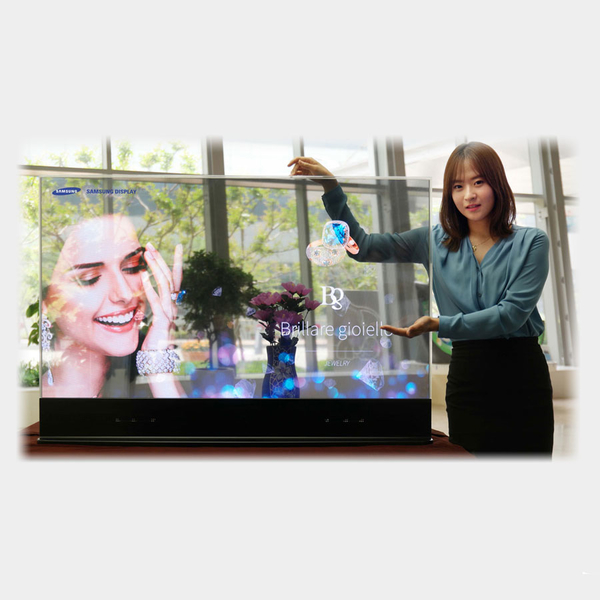

55" FullHD Transparent OLED Panel

ASI545FB01

Description

The ASI545FB01 is a 55″ transparent OLED panel designed for window mounted digital signage and information displays.
The 55″ OLED panel provides 1920 x 1080 (FullHD) resolution, and because of the OLED techology, there is no requirement for separate backlight conditions.

Features

55″ Transparent OLED Panel
Native Resolution 1920×1080 @60Hz
Pixel Pitch: 0.63 x 0.63
Self-lit pixel lighting
Wide Viewing Angle
LVDS Input
A/D Boards kit available on request

Downloads:

Datasheet
SKU: 55" FullHD Transparent OLED Panel Category: Tags: , , ,

Product Description

Screen Size
55″, 1920 x 1080 resolution
Display Colours
10-bit (1.07B)
Pixel Pitch
0.63 x 0.63 mm
Transmittance
45%
Contrast Ratio
1.0M (Typ.)
Viewing Angle
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
Backlight Type
OLED self-lit
Luminance
500cd/m2 (1% Peak), 150cd/m2 (Full White)
Total Power Consumption
160W (Typ.)
Power Input
24Vdc + 12Vdc
Dimension
1209.6 x 699.3 x 1.6 mm

Connectors

Video Inputs
LVDS

Environment

Operating Temperature
0 to 50°C
Storage Temperature
-25 to 70°C
Expected Lifetime
30,000 hours

Additional Information

Screen Size

55″
Operating Temperature

0°C to 50°C
Viewing Angle

178° / 178°
Inputs

LVDS
Transparent Type

OLED Panel
