47TS30MF
Description

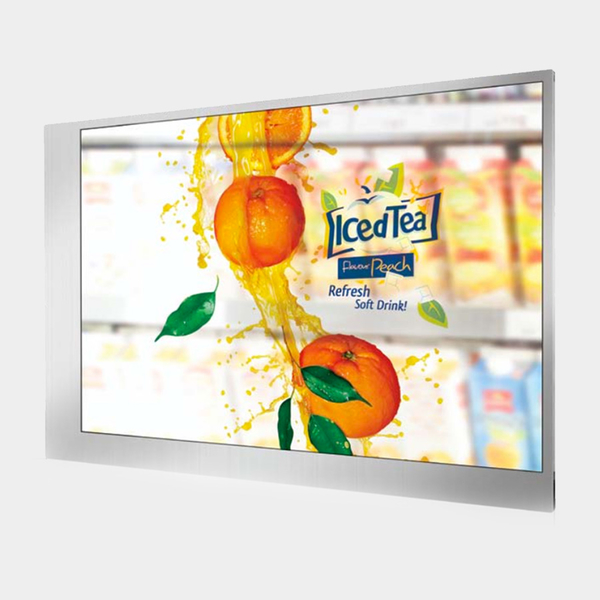

The 47TS30MF is a 47″ transparent LCD panel made by LG designed for window mounted digital signage and information displays.
The 47″ LCD panel requires special backlight conditions, and provides 1920 x 1080 (Full HD) resolution, with 1200:1 contrast ratio for high quality image display, and LVDS input.
Features
47″ LG Transparent LCD Panel
Native Resolution 1920×1080 @60Hz
Contrast Ratio: 1200:1
User Designed Backlight required
Wide Viewing Angle
Colour Gamut: 72%
Anti-reflection coating
Downloads:
Description
|
Screen Size
|
47″, 1920 x 1080 resolution
|
|
Display Colours
|
8-bit (16.7M)
|
|
Response Time
|
8ms (G-to-G)
|
|
Transmittance
|
5.5% (Typ)
|
|
Contrast Ratio
|
Typ. 1200:1
|
|
Viewing Angle
|
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
|
|
Backlight Type
|
Backlight conditions designed by user
|
|
Backlight Lifetime
|
n/a
|
|
Total Power Consumption
|
6.8W (not including user designed backlight)
|
|
Power Input
|
LCD: 12Vdc
|
|
Dimension
|
1167 x 664 x 8.8 mm
|
Connectors
|
Digital
|
LVDS
|
|
DC Jack
|
TBD
|
Environment
|
Operating Temperature
|
0 to 40°C
|
|
Storage Temperature
|
-10 to 60°C
|
Additional information
| Operating Temperature | 0°C to 40°C |
|---|---|
| Screen Size | 47" |
| Viewing Angle | 89° / 89° |
| Transparent Type | LCD Panel |
